Review Summary
1-Chip DLP projector
0.67" (17.0mm) diagonal
16:10 aspect ratio
DLP chip x 1, DLP projection system
2,304,000 (1920 x 1200) pixels
LED
3,500 lm
20,000 hours (Normal)
1920 x 1200 pixels
30,000:1 (Full On/Full Off) (TBD)
30-300" (0.76-7.62mm) diagonal, 16:10 aspect ratio
0.9
1.3 x Manual Zoom (Throw ratio: 1.28-1.67:1)
Vertical: +10 %, 0 % (Manual) (from center of screen)
Vertical: +/-30 %
Ceiling/floor, front/rear, free 360-degree installation
D-sub 9-pin (female) x 1 for computer control (RS232C compliant)
RJ-45 x 1 for network control, 10Base-T, 100Base-T, 100Base-TX, compatible with PJ Link ½½ (Class 2)
USB Connector (Type A) x 1 (Output 5 V/2 A)
AC 100-240 V, 50/60 Hz
TBD
Molded plastic
36 dB (TBD)/TBD/TBD (NORMAL/ECO/QUIET)
Operating temperature: 32-104 Degree F (0-40 Degree C)
Operating humidity: 10-80 % (no condensation)
Multi Monitoring & Control Software, Early Warning Software
10 W monaural
M3 stereo mini-jack x 1
M3 stereo mini-jack x 1
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
D-sub 15-pin (female) x 1
M3 stereo mini-jack x 1
HDMI 19-pin x 1 (Compatible with HDCP, Deep Color) MHL, CEC supported
HDMI 19-pin x 1 (Compatible with HDCP, Deep Color) CEC supported
14.76 x 4.61 x 11.30" (375 x 117 x 287mm)(Without lens, not including protruding parts)
Approx. 14.3 lbs (6.5kg)

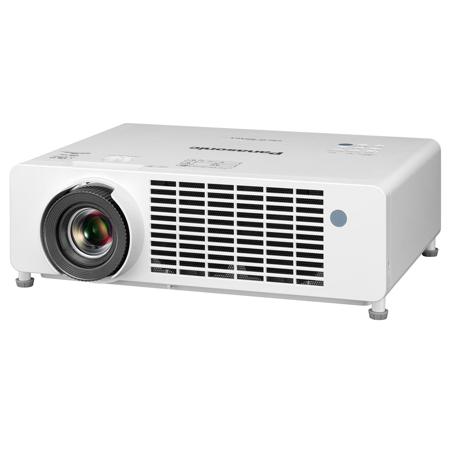

Panasonic's first pure LED projector offers vibrant, engaging color in meeting, learning and collaborative spaces. 3,500 lumens compact RGB LED projector Designed for intensive usage and long lasting brightness for collaborative spaces.
Revolutionary RGB LED Projectors Create Vibrant High-Color Images for Teams in Collaborative Spaces
Brilliantly Vivid Images Resist Color Breakup
RGB LED light engine employs discrete LEDs for each color channel to prevent feasible breakup and widen the gamut for deep, dynamic color reproduction. High-visibility images are also free from the rainbow effect.
Diverse Connectivity Streamlines Collaboration
HDMI-CEC supports one-touch playback via compatible players, automatically powering-on the projector and syncing select playback commands. Teams can cast to a streaming module powered by a built-in USB DC outlet, minimizing cable clutter.
Stress-free Reliability and Lasting Picture Quality
Wheel-less design paves the way for improved hermetic sealing, with the dust-resistant DMD block enabling implementation of filterless cooling for high image quality and very low maintenance over 20,000 hours of operation.
Brilliant Color Performance in Small Spaces
Discrete LEDs for each R/G/B channel reproduce an expanded color gamut with deep, uniform saturation. Viewers sensitive to the rainbow effect can now enjoy a high-resolution DLP experience without distraction as the wheel-less design suppresses the phenomenon. Unleash dynamic, color-rich images to match the boldness of your vision.
High Performance, Low Maintenance, Long Life
Wheel-less design with discrete LED heat-sinks boost cooling efficiency while improvements to the hermetic DMD-block sealing structure resist dust intrusion and eliminate need of an air filter, reducing maintenance and preserving image quality over 20,000 hours of stress-free operation.
Convenient CEC-Compliant HDMI Inputs and USB DC Outlet
HDMI-CEC terminals enable one-touch projector start-up and playback from standby via the CEC-compatible component. USB DC outlet can power a media streaming device, allowing members of your group to beam content wirelessly from their mobile devices.
Swift Setup with 1.3x Zoom and Easy Image Adjustment
A 1.3x zoom lens, vertical lens-shift function (+50 %, +40 %), and vertical keystone correction ( +/-30 Degree ) bring more freedom and less image distortion for desktop projection setups while 2-axis 360 Degree installation expands creative signage possibilities.
