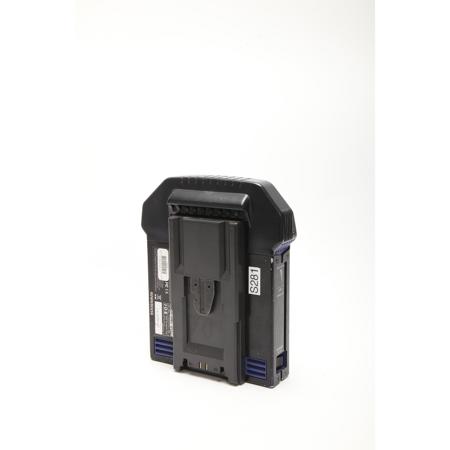

IDX CW-5HD-AB Cam-Wave HD Video Wireless Transmission System with Anton Bauer Bracket
See all IDX items
CloseoutUsed Condition: Well Used

Used IDX CW-5HD-AB Cam-Wave HD Video Wireless Transmission System with Anton Bauer Bracket

SKU: US1532802 MFR: CW-5HD-AB
Be the first to review this item
$58.00
Earn VIP Reward Points
See all Used options (2) from $58

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1
Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$18.99

3 Year

$28.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

IDX CW-5HD-AB Specifications

  • Frequency

    5.18GHz - 5.86GHz

  • Tuning Range / Frequency selection

    Four selectable channels or one auto select (TX only)

  • Transmit Power

    89mW maximum (TX only)

  • Transmitter/Receiver Antenna

    Internal 2dBi gain

  • Transmit Method

    MIMO

  • Modulation

    Orthogonal Frequency Diversity Multiplexing (OFDM)

  • Latency

    Less than 1ms

  • Video Input

    HD-SDI (SMPTE 292M) and SD-SDI (SMPTE 259M-C)

  • Video Formats

    HD-1080i/59.94, 1080i/50, 1080i/23.98PsF, 1080p/29.97, 720p/59.94, 720p/50 SD-525i/59.94, 625i/50

  • Audio Output (TX)/Audio Input (RX)

    Two channels SDI embedded channel 1 and 2

  • Power Requirement

    11-17V DC via Anton Bauer battery plate or 4-pin XLR connector

  • Power Consumption

    12W approx.

  • Dimension (W x D x H)

    6.22 x 2.83 x 7.4in / 15.80 x 7.19 x 18.8cm

  • Weight

    Approx. 1.76 lbs / 0.80kg

About IDX CW-5HD-AB Cam-Wave HD Video Wireless Transmission System with Anton Bauer Bracket

The IDX CW-5HDAB Cam-Wave HD is a wireless transmitter and receiver designed to connect HD video cameras to either a monitor or recording device. The system produces an uncompressed signal without the need to run any pesky cables, at a range of up to 150'. The transmitter can run off 1 V-Mount series battery or function off DC power through its 3-Pin XLR input. Weighing in at a little over 1.8 lbs, the CW-5HDAB provides premium high definition wireless support without adding additional bulk to the entire camera. This model comes equipped an Anton Bauer bracket for mounting on AB-type battery mounts.

IDX CW-5HD-AB Cam-Wave HD Video Wireless Transmission System with Anton Bauer Bracket Features

  • Multiple video formats and profiles including 1080i/23.98PsF
  • Automatically detects between HD-SDI and SD-SDI signals
  • Transmission range of 150 feet line of sight or up to 100 feet through walls (actual range may vary depending on site conditions)
  • No special FCC license is required for operation
  • 2-channel embedded audio ensures no signal interference for complete audio/video synchronization
  • Selection of 4 manual channel frequencies - ideal if operating multiple systems in close proximity
  • Stylish and rugged design, with no visible external antenna
  • 12W power consumption and weighs under 2 lbs
  • TX features loop-through; RX outputs dual simultaneous signals
