Manfrotto 504X Specifications

504X Fluid Video Head

504X Fluid Video Head

Jump to...
  • FDS (fluidity PAN&TILT)

    Variable

  • CBS

    4 steps

  • Flat base

    Flat base with 3/8" female attachment

  • Head material

    Aluminum

  • Max counter balance weight

    14.3 lbs (6.5kg)

  • Safety payload

    26.5 lbs (12kg)

  • Dimensions (Height)

    Head: 5.86" (14.9cm)

  • Weight

    Head: 4.4 lbs (2kg)

645 Fast Twin Leg Tripod

Jump to...
  • Color

    Black

  • Material

    Carbon Fiber

  • Top Attachment

    0

  • Ball Flat

    100 Ball, 75 Ball

  • Safety Payload Weight

    55.12 lbs (25kg)

  • Closed Length

    28.74" (73cm)

  • Center Column

    No center column

  • Easy Link

    No

  • Leg Type

    Twin

  • Leg Angles

    20 Degree , 50 Degree , 70 Degree

  • Leg Lock Type

    Flip Lock

  • Leg Sections

    3

  • Working Temperature

    Maximum: 140 Degree F (60 Degree C)
    Minimum: -22 Degree F (-30 Degree C)

  • Spreader

    mid level - variable arm length

  • Dimensions (Height)

    Maximum: 61.81" (157cm)
    Minimum: 28.74" (73cm)

  • Weight

    8.6 lbs (3.9kg)

Related Articles & Videos

About Manfrotto 504X Fluid Video Head with 645 Aluminum Fast Twin Leg Tripod #1574150

Become a master of videography with the Manfrotto 504X Fluid Video Head and 645 3-Section Aluminum Fast Twin Leg Tripod. This dynamic duo is designed to meet the needs of modern filmmakers, offering unparalleled stability, smoothness, and versatility.

The 504X Fluid Video Head, an evolution of the successful 504HD, boasts a new, compact design that is lighter and more portable than ever. Its flat base, developed with videographers in mind, ensures versatility across various shooting conditions. The head features a 4-step counterbalance system, capable of supporting up to 6.5 kg/14.3 lb at 55 mm/2.2 in C.O.G, ensuring quick setup and optimal performance. The fluidity function on PAN & TILT guarantees extremely smooth movements, making every shot a masterpiece.

The 504X head can support a maximum payload of up to 12 kg / 26.5 lbs, making it suitable for a wide range of cameras and camcorders. It also features new easy link connectors with Manfrotto anti-rotation technology and Arri pin, providing maximum flexibility. The pan bar attachments on both sides of the head, along with a 3/8" easy link connector cap, ensure safety and convenience during use.

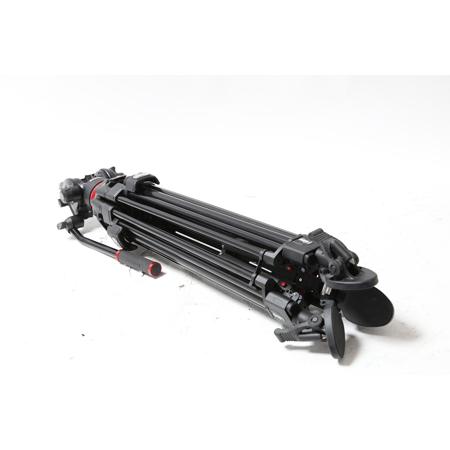

The 645 Fast Twin Leg Tripod, made from durable aluminum, offers robust support with its double tubing and Lever-Lock lever technology. It comes with a 2 in 1 half ball, a standard 100mm bowl, and a 75mm adapter, enabling the use of a wide range of video heads. The tripod also features a middle spreader lock and 3-angle selectors, providing optional preference for use of a spreader.

The synchronized closure mechanisms between the upper and lower locks allow for quick and easy setup, reducing setup times and maintenance. The tripod is equipped with spiked feet with rubber overshoes for a firm grip, making it adaptable to diverse shooting locations. The 645 Fast Twin Leg Tripod is compatible with the 2 in 1 ground and middle telescopic spreader, offering maximum versatility for your filming needs.

Whether you're shooting in a studio or on location, the Manfrotto 504X Fluid Video Head with 645 3-Section Aluminum Fast Twin Leg Tripod is your reliable partner for professional-quality videography.

Manfrotto 504X Fluid Video Head with 645 Aluminum Fast Twin Leg Tripod #1574150 Features

  • 504X Fluid Video Head Features
  • New catching design with flat base
  • 4 steps CBS and fluidity on both PAN & TILT powered by new fluid technology
  • New easy link connectors
  • Sliding quick release plate
  • New fluid technology
  • Bubble level
  • 645 Fast Twin Leg Tripod Features
  • Lever-Lock: for the most robust support ever
  • 100mm half ball with a 75mm half ball adapter
  • Features a 3-angle selection mechanism for easy set up
  • Equipped with spiked feet with rubber overshoes for a firm grip
  • 2 in 1 spreader boosts tripod stability (Item sold separately)

What's in the box:

  • 504X Fluid Video Head
  • Quick Release Plate
  • 645 Fast Twin Leg Aluminum Tripod (MVTTWINFA)
  • 3x Removable Rubber Feet
  • 100 to 75mm Adapter Ring
  • Middle Spreader
  • Bag
