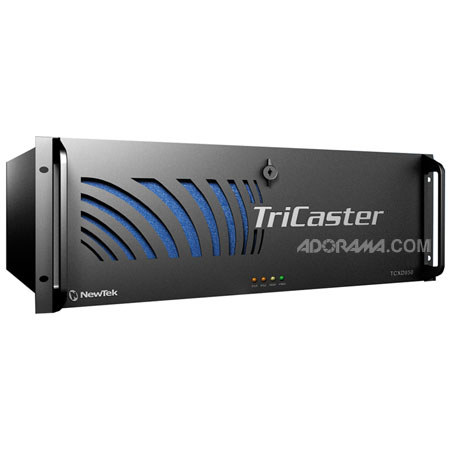

NewTek TriCaster TCXD850FN Live Production System (Full Unit)

Picture does not represent the actual item

See all NewTek items
CloseoutUsed Condition: Heavy Use

Used NewTek TriCaster TCXD850FN Live Production System (Full Unit)

SKU: US1581303 MFR: 85000190-0101
Be the first to review this item
$871.00
OR
$73/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $871

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1
Add to List

Protect your gear with Adorama Protect.* Learn more

2 Year

$106.99

3 Year

$166.99

4 Year

$227.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

NewTek TCXD850 Specifications

  • Video Input

    8 Simultaneous Inputs.
    Any Combination of: HD-SDI, HD Component, SD-SDI, SD Component, Y/C (BNC) or Composite.
    HD-SDI Video Conforms to SMPTE 292M and SD Video Conforms to SMPTE 259M and ITU-R BT.656.

  • Video Output

    3 HD/SD-SDI
    3 HD/SD Component HDMI Output Aux VGA/DVI Output User Interface VGA/DVI Output

  • Video Processing

    32-Bit Floating Point, YCbCrA 4:4:4:4

  • Audio Input

    8 x 2 Balanced XLR at Line and Mic Level
    8 AES3/EBU BNC Connectors
    8 SDI Embedded Analog Audio Levels Conform to SMPTE RP-155 Phantom Power Option

  • Audio Output

    4 Balanced XLR (Program Out)
    4 Balanced XLR (Auxiliary Out)
    2 AES/EBU (Program Out)
    3 SDI Embedded (Program Out)
    1 Stereo 1/4" Headphone Jack

  • Audio Processing

    32-Bit Floating Point, 96 kHz, 4 Channels

  • Supported Formats

    NTSC: 1080i 59.94, 720p 59.94, 480i 59.94 (16:9 and 4:3) Multi-Standard: 1080i 50, 720p 50, 576i 50 (16:9 and 4:3)

  • Recording Capacity

    ~ 36 Hours 1080i 59.94 Removable Drive Bays for Unlimited Record Time and Backup Capability

  • Presets

    Numerous Preset Bins (includes individual production sessions)

  • Mix HD/SD Sources

    Yes

  • Video Ingest

    1, 6-pin IEEE FireWire

  • Tally

    DB15 Connector for 8 PGM Row Tally Lights

  • iVGA Network Selections

    2 Channels Dedicated to Separate iVGA Sources (select instantly from unlimited network sources)

  • Network Connection

    1GBit Connection for Network Inputs and Streaming Output

  • Virtual Set Support

    Yes - 18 HD Virtual Sets Included

  • Per Virtual/Mix Channel Overlay

    1 Channel with Keying, Effects with Positioning, Scaling, Cropping and 3D Rotation

  • Virtual/Mix Channels

    8 Independent Channels with Presets

  • Main Overlay

    2 Downstream Keys with Independent Effects with Keying, Positioning, Scaling, Cropping and 3D Rotation

  • Media Player

    2 DDRs, Stills, Titles, Audio Player (all video sources provide output with alpha channel, for use in overlays, virtual sets, etc.)

  • On-Screen Preview Monitors

    All Sources, "Computer Sources," "Camera Inputs," "Preview and FX" or "Scopes with Switchable Input" (full-time, tabbed - all run at full field rate)

  • Projector Output

    Yes - 16:9 and 4:3 Aspects

  • Projector Resolutions

    Up to 1920 x 1200

  • Full HD 720p 16:9 Streaming

    Yes

  • Live Webcasting

    Yes - Adobe Flash, Windows Media Push/ Pull and VC-1 Codec Support

  • Waveform Monitor and Vectorscopes

    Yes - Full Field Rate with Color Preview

  • Record to Disk

    Simultaneous Recording of Full Resolution MPEG-2 and Archive of Web Stream

  • Integrated Character Generator

    Yes

  • Nonlinear Editor

    Yes

  • File Formats

    AVI, DNXHD, DV, M4V, MPEG-2, QuickTime, H264, HDV, JPG, PNG, PSD and More

  • Render Outputs

    AVI, DV, MPEG-2, MP4 (iPod and PSP), QuickTime

  • Form Factor

    Rack Mount (4U with optional rails)

  • Redundant Power Supply

    Yes

  • Drive Bays

    3 Trayless SATA II Removable Drive Bays

  • Dimensions

    19" D x 7.25" H x 21.5" W

About NewTek TriCaster TCXD850FN Live Production System (Full Unit)

The NewTek TriCaster TCxD850 is designed to meet the most demanding HD production requirements. This 22-channel HD/SD live production switcher comes in a rack mount form factor, with redundant power and removable storage; eight external sources, eight virtual/mix channels; new live HD virtual sets and advanced matte generation; overlay with rotation, positioning and scaling in 3D plus animated effects; HD live streaming; increased media player capabilities and multi-view monitoring of all inputs and outputs.

NewTek TriCaster TCXD850FN Live Production System (Full Unit) Features

  • 22-channel switcher with eight HD-SDI or analog inputs, two DDRs, two network inputs, titles, stills and eight virtual/mix channels
  • Five digital Media Players for video playback, titles, stills, music and sound
  • Overlay with rotation, positioning and scaling in 3D plus animated effects
  • Two network inputs deliver graphics from LiveText, presentations from a PC or Mac using iVGA or other computer sources to the switcher or overlay channels
  • Simultaneously monitor all switcher inputs at full field-rate and verify signal integrity with color Waveform/Vectorscopes
  • Use any combination of either embedded digital, AES or the 16 balanced analog XLR audio inputs to bring in microphones, stereo or quad line level sources
  • Audio mixing capabilities with audio follows video support and auxiliary routing to integrate into an external audio setup
  • HDMI and VGA program outputs for projector (IMAG) or other monitoring applications
  • 36 hours of 1080i recording capacity that can be extended by using the three removable drive bays
  • Three video output rows provide flexible simultaneous HD and SD video output
  • Durable rack mount 4U case with redundant power supply
