Used Blackmagic Design Micro Cinema Camera Body Only, with Micro Four Thirds Lens Mount, 13 Stops of Dynamic Range

SKU: US1635374

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-12-15T18:55:07

Rated 5 out of 5

Awesome videos and size for creative rigging

I got the best picture quality that I can afford. Yes it needs monitor, cage and other equipment to make it usable and you have to be creative at it but you can't beat the video that comes out is awesome. Adorama made this come true for me for used price and speedy service. Adorama I salute you.

Julio B.

2019-02-03T13:11:33

Rated 5 out of 5

Great little cinema camera

Great camera for the price, and Adorama had an excellent sale going. Camera got here quickly, I'm very happy!

Charles M.

2017-07-05T12:37:47

Rated 4 out of 5

Great camera BUT

After you rig this camera out it's a pleasure to work with, what I don't get is why bundle this camera with a lens that's totally useless for the majority of what most people shoot then you include a hdmi to mini hdmi cable knowing the most hdmi monitors are full hdmi , the cleaning cloth is more useful to me than the other items included in the bundle. But I do love the camera.

GREG S.

2016-11-23T10:37:13

Rated 5 out of 5

My New Secret Weapon

This camera is truly awesome. At first, I was underwhelmed my the expansion port but I created a set of buttons that attach to my rig to control the settings in my camera. Very convenient I must say. I have the pocket as well and the footage this camera produces is a lot better in my opinion; cleaner, better colors. So, something is improved with this camera in terms of the sensor. Very happy with this!

Nick P.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Blackmagic Design Micro Cinema Specifications

  • Sensor Size

    12.48mm x 7.02mm (Super 16)

  • Shooting Resolution

    1920 x 1080

  • Frame Rate - Global Shutter

    1080p23.98, 24, 25, 29.97, 30

  • Frame Rate - Rolling Shutter

    1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • Dynamic Range

    13 stops

  • Focus

    Remote focus control via expansion connector when using compatible lenses

  • Iris Control

    Iris control via Rewind and Forward buttons, plus remote control via expansion connector when using compatible lenses

  • Lens Mount

    Active MFT mount

  • Controls

    6 control buttons including Record, Play, Rewind, Forward, Menu, and Power. 4 channel PWM plus 1 x S.Bus remote via expansion connector

  • Microphone

    Integrated stereo microphone, active when camera is recording

  • Mounting Options

    1 x 1/4" (top), 3 x 1/4" (bottom)

  • Storage Type

    Removable SDXC and SDHC cards

  • Storage Format

    Mac OS Extended or exFAT format, SD cards can be formatted in camera, or on any Mac or Windows computer. Formatting in camera recommended

  • Storage Rates

    1920 x 1080
    CinemaDNG RAW - 65 MB/s
    Apple ProRes 422 HQ - 27.5 MB/s
    Apple ProRes 422 - 18.4 MB/s
    Apple ProRes 422 LT - 12.75 MB/s
    Apple ProRes Proxy - 5.6 MB/s
    Rates based on 30 frames per second

  • Compressed Recording Formats

    Lossless CinemaDNG RAW at 1920 x 1080 with film dynamic range. Apple ProRes 422 HQ, 422, 422 LT and 422 Proxy at 1920 x 1080 with either film or video dynamic range

  • HDMI Video Output

    1 x HDMI Type A output

  • Expansion Port

    DB-HD15 serial connector provides support for:
    Power input
    LANC input
    1 x S.Bus channel input
    4 x PWM channel input
    Genlock input
    Composite video output

  • Analog Audio Input

    1 x 3.5mm stereo audio at line or mic level. Can also be used for timecode input

  • HDMI Audio Output

    2 channels 48 kHz and 24-bit

  • Remote Control

    Lens control, recording parameters and record trigger start/stop trigger via LANC and PWM or S.Bus remote channels

  • Computer Interface

    USB 2.0 Mini-B port for software updates

  • Software

    DaVinci Resolve Lite grading software
    SD card for Mac OS X and Windows

  • Operating Systems

    Mac OS X 10.9 Mavericks
    Mac OS X 10.10 Yosemite or later
    Windows 7 or Windows 8

  • Battery Type

    Canon LP-E6

  • Battery Life

    Approximately 1 hour 30 minutes

  • Power

    12V - 20V

  • Operating Temperature

    0 to 40 C (32 to 104 F)

  • Storage Temperature

    Minus 20 to 45 C (-4 to 113 F)

  • Relative Humidity

    0% to 90% non-condensing

  • Dimensions

    3.25 x 2.74 x 2.57" (8.3cm x 7cm x 6.5cm)

  • Weight

    11oz (0.3kg)

31 Accessories for Blackmagic Design Micro Cinema Camera Body Only, with Micro Four Thirds Lens Mount, 13 Stops of Dynamic Range

  • All Accessories (31)
  • Lenses (5)
  • Monitor & Recorder (5)
  • Microphones (1)
  • Digital Cinema Lenses (7)
  • Headphones (1)
  • Stabilizers, Supports & Rigs (1)
  • Lens Adapters (3)
  • Batteries & Power Supply (1)
  • Cleaning Accessories (1)
  • Microphones & Audio (2)
  • Brackets & Mounts (1)
  • Rain Covers (3)

About Blackmagic Design Micro Cinema Camera Body with Micro Four Thirds Lens Mount

FEATURED REVIEWS

My New Secret Weapon

By Nick P.

This camera is truly awesome. At first, I was underwhelmed my the expansion port but I created a set of buttons that attach to my rig to control the settings in my camera. Very convenient I must say. I have the pocket as well and the footage this camera produces is a lot better in my opinion; cleaner, better colors. So, something is improved with this camera in terms of the sensor. Very happy with this!

Great little cinema camera

By Charles M.

Great camera for the price, and Adorama had an excellent sale going. Camera got here quickly, I'm very happy!

Blackmagic Micro Cinema Camera The world's smallest digital film camera with innovative remote control!

Blackmagic Micro Cinema Camera, a miniaturized Super 16mm, professional digital film camera that is designed to be operated remotely and capture action anywhere! A revolutionary built in expansion port has PWM and S.Bus inputs so you can use a model airplane remote control to operate the camera wirelessly. Imagine adjusting focus, iris and zoom wirelessly! The Micro Cinema Camera is a true digital film camera that features built in RAW and ProRes recording, 13 stops of dynamic range and an MFT lens mount. You get a true digital film camera that can go where no other digital film camera can!

Get Incredible Action Shots
The digital film camera for action camera shots

The Blackmagic Micro Cinema Camera is an impossibly small true, professional quality digital film camera that's perfect for use on quadcopters, as a crash cam, or even hidden on set for reality TV. You can mount it anywhere such as on a skate board or hang glider for spectacular extreme sports shots, to a drone to record panoramic fly overs, or even wear it on a helmet for the most amazing point of view shots! The Blackmagic Micro Cinema Camera will make your audience say "Wow! How did they get that shot "

Remote Camera Management
Wireless control of your camera from a safe distance

When you're mounting the camera on quadcopters, using it as a crash cam or placing it in dangerous locations, you can operate the camera remotely, view a live feed and monitor status, all from a safe distance. The expansion port can be connected to radio control airplane receivers and various camera functions can be mapped to radio channels so you can remotely start and stop recording, adjust focus, change the iris and more! The expansion port also has a composite video output that can be connected to low cost wireless video transmitters for remote monitoring of the camera's recording status, battery life and audio levels.

Extremely Customizable Design
The world's smallest completely open and customizable camera

The design of the Blackmagic Micro Cinema Camera combines advanced miniaturization and a unique expansion port in a digital film camera that lets you create personalized rigs for remote operation and monitoring. The camera body is not much larger than the Micro Four Thirds lens mount making it as small as a camera with a professional lens can be. Its core is made out of a lightweight and strong magnesium alloy that makes it durable enough to shoot anywhere, from the ocean floor to the stratosphere or beyond! You can control the Micro Cinema Camera directly from the front buttons when it's mounted, or remotely when it's out of reach.

Revolutionary Expansion Port
Now you can create your own custom camera remote control

The revolutionary expansion port lets you create custom remote control, external power and monitoring solutions. The included breakout cable gives you access to many of the camera's unique functions, but you can also create your own custom cables that open the camera up to do even more. In addition to things like LANC, power, video out, and genlock, you also get 4 analog PWM radio remote control inputs so you can map camera functions to the dials, knobs, buttons and joysticks on model airplane remotes! For even more control with greater precision, you can use the 18 channel S.Bus control input with Futaba radio control equipment or custom embedded controllers.

Remote Monitoring
Transmit and monitor video wirelessly!

The expansion port includes NTSC and PAL composite video output that can be connected to low cost wireless video transmitters for remote monitoring. That means you can see exactly what the camera is recording whether the camera is in the air or hidden on set. For higher quality monitoring, the Micro Cinema Camera also has an HDMI output for wireless HD video transmitters. Both the composite and HDMI outputs can display overlays for camera status, lens settings, file formats, histogram, audio meters, battery life and more!

Super 16mm Sensor
Wide dynamic range digital film sensor!

The Super 16 sensor on the Blackmagic Micro Cinema Camera is full 1080 HD resolution and has an incredible 13 stops of dynamic range! That means you get true digital film quality images because the sensor can capture more information in the bright and dark areas of the image. Unlike DSLR and action-style cameras that are limited to video range which clips highlights and shadows, the Blackmagic Micro Cinema Camera gives you brighter highlights without clipping, and rich detail in shadows. With an ISO up to 1600 you get great quality, even in locations with low lighting.

Built in RAW and ProRes Recorder
Record using professional formats without ugly compression artifacts

The built in recorder captures true 12-bit log digital film quality images without the artifacts you get on heavily compressed 8-bit H.264 files used on small consumer action and DSLR cameras. Files can be saved in either Cinema DNG RAW or ProRes. Cinema DNG RAW files are 12-bit log and give you all of the data from the camera's sensor, so you have the latitude to change things like white balance and exposure long after the camera stops rolling. If you need smaller file sizes and longer recording times, you can use ProRes to get broadcast quality images. Both formats can be easily edited and color corrected with the included DaVinci Resolve for Mac and Windows.

Interchangeable Lenses
Use a wide range of lightweight professional photo lenses

The Blackmagic Micro Cinema Camera features an active Micro Four Thirds lens mount so you can use high performance photographic lenses including wide angle, primes, standard zooms, telephotos and more. That means you're not stuck with a built in lens and can choose the best lens for the job! The focus, iris and zoom on active MFT lenses can be controlled remotely from the camera's expansion port. Many MFT lenses also have built in optical image stabilization, making them perfect for use in places where there might be a lot of movement, shocks or vibration.

Expandable Connections
Use mics, monitor video and add custom expansion options

The right side of the Micro Cinema Camera includes a full size HDMI connector for monitoring video output with overlays and embedded audio, along with the expansion port which uses a standard DB-HD15 connector. The expansion port can be used with the included breakout cable or with a custom cable of your own design to give you additional monitoring, control and power options. The left side of the camera houses the SD card slot for recording and also has a high quality 3.5mm stereo input for connecting mic or line level devices.

Easy Camera Settings
Front panel buttons to quickly change settings

You can quickly adjust camera settings using the row of buttons located on the front of the camera. Because they're on the front, the buttons are always accessible, whether the camera is strapped to your body or mounted in tight locations. Camera settings are displayed on screen using the HDMI or composite video output. You also get power, record, stop, fast forward and rewind buttons, along with an LED light on top that shows recording status and has memory card and low battery warning indicators.

Professional Sound
High quality audio

recording with built in or external microphones Engineered for high quality audio recording, the built in high quality stereo microphone is omni-directional and features a mechanical design to help reduce unwanted wind noise so you get a clear recording. There's also a built in 3.5mm input connector so you can plug in directional or wireless clip on microphones. The 3.5mm input jack supports both mic or line level devices and automatically disables the internal mic when an external one is connected. The Blackmagic Micro Cinema Camera gives you the flexibility to choose the right microphone or audio source for your production!

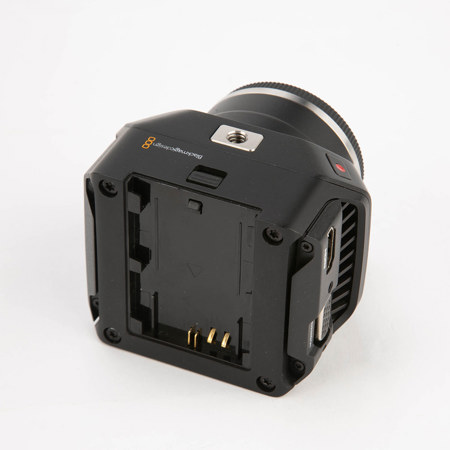

Battery or External Power
Use removable batteries or DC power sources

For remote recording, you can attach any readily available LP-E6 battery to the back of the camera and place it in all sorts of locations. The battery level is shown in an overlay when the camera is connected to an HDMI display or on the PAL/NTSC video output so you can monitor battery levels even when the camera is operated remotely. There is also an LED on the camera to indicate low battery condition as well as record status. The included breakout cable has a 12V DC input jack so you can use external power supplies or even rig up your own long lasting custom power sources!

Add Popular Accessories
Rig it, mount it and control it anywhere

The Blackmagic Micro Cinema Camera is compatible with a virtually unlimited number of accessories ranging from interchangeable MFT lenses and lens mount adapters, to quadcopters, battery chargers and more. Two 1/4" mounting points on the top and bottom of the camera let you securely rig the camera anywhere and then use wireless HDMI or composite video transmitters for remote monitoring. You can even control the camera using wired LANC accessories or go completely wireless with PWM or S.Bus radio remote control transmitters and receivers or roll your own custom control solution using embedded computers such as Arduino, BasicSTAMP and Raspberry Pi!

Blackmagic Design Micro Cinema Camera Body with Micro Four Thirds Lens Mount Features

  • 16mm Image Sensor
  • Remote Camera Management: Wireless Control of your camera from a safe distance
  • Micro Four Thirds Lens Mount
  • Remote Controlled Expansion Port
  • HDMI & Composite Output, 3.5mm Audio In
  • Magnesium Alloy Core
  • Ultra-Compact Design
  • 4 analog radio remote control inputs

What's in the box:

  • Blackmagic Design Micro Cinema Camera (Body Only)
  • Expansion Cable
  • LP-E6 Battery
  • Turret Dust Cap
  • 12V AC Adapter(with International Adapters)- Cgpro bmmcc/bmmsc Breakout Box
