TVLogic VFM-056W 5.6" Compact LCD Monitor, 1280x 800 Resolution, 500:1 Contrast, HD/SD-SDI, HDMI & Analog Input

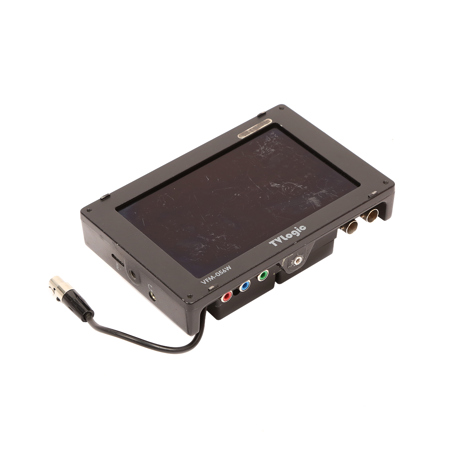

TV Logic VFM-056W: Picture 1 thumbnail
TV Logic VFM-056W: Picture 2 thumbnail
TV Logic VFM-056W: Picture 3 thumbnail
TV Logic VFM-056W: Picture 4 thumbnail
TV Logic VFM-056W: Picture 5 thumbnail
TV Logic VFM-056W: Picture 6 thumbnail
TV Logic VFM-056W: Picture 7 thumbnail
TV Logic VFM-056W: Picture 8 thumbnail
See all TV Logic items
ClearanceUsed Condition: Well Used

Used TVLogic VFM-056W 5.6" Compact LCD Monitor, 1280x 800 Resolution, 500:1 Contrast, HD/SD-SDI, HDMI & Analog Input

SKU: US1652255 MFR: VFM-056W
Be the first to review this item
$137.00
Earn VIP Reward Points
See all Used options (2) from $90

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

TV Logic VFM-056W Specifications

  • Size

    5.6"

  • Resolution

    1280x800 (16:10)

  • Pixel Pitch

    0.0945mm

  • Color Depth

    16.7M (Dithered 8bit)

  • Viewing Angle (Typ.)

    170deg.(H) / 170deg.(V)

  • Luminance (Max.)

    300cd/m2 (center)

  • Contrast Ratio

    500:1

  • Display Area (HxV)

    121.00x76.00mm (4.76x2.99")

  • 3xRCA Input

    Analog Video Input

  • 1xBNC Input

    SDI Channel Input

  • 1xHDMI Input

    HDMI(1.2 Ver) Input

  • 1xBNC

    HDMI-to-SDI Conversion Output(VFM-056WP Only)

  • Analog

    CVBS / S-Video / Component Video

  • 3G-SDI

    2.970Gbps

  • HD-SDI

    1.485Gbps

  • SD-SDI

    270Mbps

  • HDMI

    480i/480p/576i/567p/720p/1080i/1080p/ & VESA / IBM Modes

  • CVBS

    1.0Vp-p (With Sync) NTSC. PAL

  • S-Video

    1.0Vp-p (Y With Sync), 0.286/0.300 Vp-p(Chroma)

  • Component Video

    1.0Vp-p (Y With Sync), +/-350mV (Pb,Pr)

  • RGB

    1.0Vpp (G With Sync), 0.7Vpp (B,R)

  • SMPTE-425M-A/B

    1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)

  • SMPTE-274M

    1080i (60 / 59.94 / 50)
    1080p (30/29.97/25/24/24sF/23.98/23.98sF)

  • SMPTE-296M

    720p (60/59.94/50)

  • SMPTE-260M

    1035i (60/59.94)

  • SMPTE-125M

    480i (59.94)

  • ITU-R BT.656

    576i (50)

  • Audio IN

    Embedded Audio

  • Audio OUT

    Analog stereo (Phone Jack) / Internal Speaker (Mixed Mono)

  • Power

    DC 6-12V

  • Power Consumption

    8.4 Watts (Typ.)

  • Operating Temperature

    0deg.C to 40deg.C (32deg.F to 104deg.F )

  • Storage Temperature

    -20deg.C to 60deg.C (-4deg.F to 140deg.F )

  • Dimensions (WxHxD)

    156.00x103.00x 26.50mm (6.14x4.05x1.02")

  • Weight

    0.28kg (0.61lbs)

About TVLogic VFM-056W 5.6" Compact LCD Monitor, 1280x 800 Resolution, 500:1 Contrast, HD/SD-SDI, HDMI & Analog Input

The TVLogic VFM-056W 5.6" LCD HD/SD-SDI HDMI Monitor is a lightweight, LED backlit LCD monitor with features such as DSLR Scale, Focus Assist, Various Scan Modes, Markers, Audio Level Meter with speaker and time code display. The VFM-056W 5.6" High-Resolution Compact LCD Monitor has a 6" x 4" x 1" lightweight magnesium-alloy case which helps the unit weigh less than 11 oz (without battery plate). This monitor accepts multiple input formats including analog, SD/HD-SDI (not 3G compatible) and HDMI.

The TVLogic VFM-056W also features a DSLR scale function, this function is especially designed for some DSLR cameras whose outputs have different resolution while previewing and recording or during playback. In the case of the Canon 5D MarkII, when the record button is pressed resolution drops from 1080i in preview mode to 480p. The DSLR Scale function scales the image to 1280 x 800 (Panel Resolution) and displays it Full Screen.

TVLogic VFM-056W 5.6" Compact LCD Monitor, 1280x 800 Resolution, 500:1 Contrast, HD/SD-SDI, HDMI & Analog Input Features

  • DSLR Scale: Function Scales SD output from a DSLR to 1280x800 Full Screen
  • Focus Assist (Peaking Filter): Red Color is displayed on sharp edges to enhance focus accuracy
  • Various Scan Modes: ZERO SCAN, UNDER SCAN, OVER SCAN and 1:1 PIXEL FOR PIXEL
  • Markers: Choose framing markers for CENTER, SAFETY AREA, FIT and more
