Wacom MobileStudio Pro 16 Specifications

  • Best For

    Drawing, Concept Art, 3D/CAD, Motion Graphics, Advanced Image Editing

  • Operating System

    Windows 10 Professional

  • Processor

    Intel Core i7-8559U Quad-Core

  • Base Frequency

    2.7GHz

  • Max Turbo Frequency

    4.5GHz

  • Graphics

    NVIDIA Quadro P1000, 4GB GDDR5

  • Storage Drive

    512GB PCIe Gen3x2 M.2 2280 MVMe SSD

  • Optical Drive

    No

  • Memory

    16GB DDR4-2400
    SO-DIMM

  • Cameras

    5MP HD on front
    8MP HD on back

  • Security

    Kensington Security Slot for Kensington MiniSaver Mobile Lock, fTPM 2.0

  • Screen Size

    15.6"

  • Aspect Ratio

    16:9

  • Screen Resolution

    UHD (3840 x 2160)

  • Display Technology

    LED

  • Glass / Surface

    AG Glass

  • Active Area

    345.60 x 194.40mm

  • Supported Resolution

    800x600 at 60Hz (SVGA)
    1024x768 at 60Hz (XGA)
    1280x720 at 60Hz (HD)
    1280x1024 at 60Hz (SXGA)
    1600x1200 at 60Hz (UXGA)
    1920x1080 at 60Hz(FHD)
    2560x1440 at 60Hz (WQHD)
    3840x 2160 at 60Hz (UHD)

  • Pixel Pitch (HxV)

    0.09 x 0.09mm

  • Brightness

    250 cd/m2 (min) 310 cd/m2 (Typ)

  • Color Performance

    16.7 million displayable colors, 85% Adobe RGB (CIE1931) typical

  • Response Time

    25 ms

  • ExpressKeys

    8 customizable, application-specific

  • Contrast Ratio

    850:1 (typ)

  • Viewing Angle

    176 deg. (88 deg. /88 deg. ) H, (88 deg. /88 deg. ) V (typ)

  • Graphics Input

    USB-C (middle port)

  • Battery

    Type: Li-Polymer
    Capacity: 4630mAh

  • Avg. Battery Life

    Up to 5.5 hours (varies depending on usage)

  • Battery Charging Time

    Up to 3 hours

  • Multi-Touch

    Pan, zoom and rotate gestures available in most applications including Adobe Photoshop and Illustrator

  • Pen & Tilt Recognition

    Battery-free Pro Pen 2 with 2 customizable side switches and 8192 pressure levels in both pen tip and eraser / +/- 60 levels

  • Productivity Boosters / Ergonomics

    Customizable, application-specific ExpressKeys, one 4-position customizable Rocker Ring with default TouchRing function and home button, Display Toggle (when attached to a Mac or PC using optional Wacom Link Plus adapter), on-screen controls, Radial Menus and time-saving settings, right- or left-handed use / detachable stand with 3 angle positions included

  • Interfaces

    1x USB-C & 2 x Thunderbolt 3, 1x Audio-combo (Headset), 1x SDXC card reader, memory card or external HDD (purchased separately)

  • Wireless

    Wi-Fi IEEE 802.11 ac / Bluetooth 5.0

  • System & Hardware Requirements

    Windows 7 or later, Mac OS X 10.10 or later. Required PC connectors: USB-C with DisplayPort alternative mode, HDMI or mini DisplayPort for HDMI or mini DisplayPort, with optional Wacom Link Plus adaptor required

  • Sensor

    GPS, electronic compass, accelerometer, ambient light, gyro, fingerprint reader

  • Mic/Speakers

    1x Audio-Combo, Dual Microphones/2x 2 W

  • Input Voltage

    100 to 240 VAC, 50/60 Hz

  • Output Voltage

    5V/3A (15W), 20V/5A (100W)

  • Power Consumption

    Maximum power consumption: 94W, 1.0W when asleep, 0.5W or less when off

  • Storage Temperature and Humidity

    Temperature: -10 to 60 deg. C (14 to 140 deg. F)
    Humidity: 30 to 90% RH (non-condensing) (Maximum storage humidity is 90% at a temperature of 40 degree C and maximum storage temperature is 60 degree C at a humidity of 30%.)

  • Operating Temperature and Humidity

    Temperature: 5 to 40 deg. C (41 to 104 deg. F)
    Humidity: 30 to 80% RH (non-condensing)

  • Dimensions

    261.6 x 417.95 x 21.2mm (10.30 x 16.45 x 0.83") (with grip pad)

  • Weight

    4.7 lbs (2.13kg)

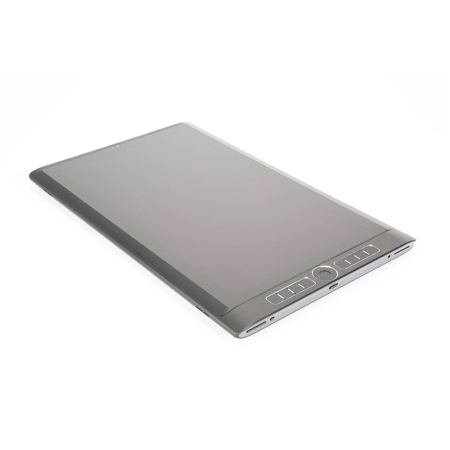

About Wacom MobileStudio Pro 16 15.6" UHD Creative Pen Computer - SKU#1659680

Are you ready to unleash your creativity without limits The Wacom MobileStudio Pro 16 is a powerhouse of a creative pen computer, designed to bring your artistic vision to life wherever inspiration strikes. With its stunning 15.6" UHD display, you can dive into your work with up to 4K resolution, ensuring every detail of your art is captured with crystal-clear precision. The screen boasts an impressive 85% Adobe RGB coverage (CIE1931), offering a wide color gamut that brings your creations to vibrant life.

The Wacom Pro Pen 2 is the heart of the MobileStudio Pro's creative prowess. Experience an advanced pen performance that mimics the natural feel of pen on paper, thanks to the etched glass surface that provides the perfect amount of friction. With 8,192 levels of pressure sensitivity, tilt response, and virtually lag-free tracking, this pen is engineered for accuracy, control, and a seamless creative experience.

Optimize your workflow with time-saving productivity features. Customizable ExpressKeys, Radial Menus, and multi-touch capabilities streamline your creative process, allowing for quick access to shortcuts and a more intuitive interaction with your work. The ergonomic design of the pen ensures comfort during long creative sessions, with a balanced grip and easy-to-use side buttons that enhance your efficiency.

Under the hood, the MobileStudio Pro 16 is equipped with an Intel Core i7-8559U processor clocked at 2.7GHz, paired with 16GB of RAM for smooth multitasking and quick access to your favorite creative tools. The 512GB SSD provides ample storage for large project files, ensuring swift load times and a responsive experience. The NVIDIA Quadro P1000 4GB graphics card delivers robust performance, making this device ideal for demanding 2D, 3D, CAD applications, and more.

Running on Windows 10 Pro with a free upgrade to Windows 11, the MobileStudio Pro 16 is not just a drawing tablet but a full-fledged mobile computer that can handle all your creative and professional needs. Its long battery life ensures that your creative flow isn't interrupted, even when you're on the move.

The Wacom MobileStudio Pro 16 is the all-in-one creative studio that empowers you to sketch, draw, edit, and create with complete freedom. Whether you're an illustrator, animator, video editor, or working with large file size photography, this mobile creative workspace is engineered to elevate your art to professional heights, wherever your creativity takes you.

Wacom MobileStudio Pro 16 15.6" UHD Creative Pen Computer - SKU#1659680 Features

  • Pen-on-paper feel thanks to a natural friction on the etched glass surface
  • Fast data processing and quick data transfer thanks to professional computing power, powered by i7 Intel chips, 16GB system memory, 512GB SSD and Thunderbolt connectivity
  • See your artwork in amazing detail and clarity with a high-resolution display up to 4K (3840 x 2160) and superior color quality with up to 85% Adobe RGB coverage (CIE1931)
  • Enjoy high performance 2D, 3D, video and CAD applications with high-performance graphics options including NVIDIA Quadro graphics
  • Speed your workflow with customizable ExpressKeys, Radial Menus and multi-touch
  • Convenient features that aid independence. Wacom Link Plus adapter (sold separately) to attach to any Mac or PC for use as a standard Cintiq. Wacom Stand with three working angles
  • Plus, the 'Backdoor' feature makes it easy for you to replace or upgrade the SSD and DDR Memory. Wireless Keyboard for additional shortcut keys and everyday office work
  • Fingerprint technology. Unlock your machine using just your touch

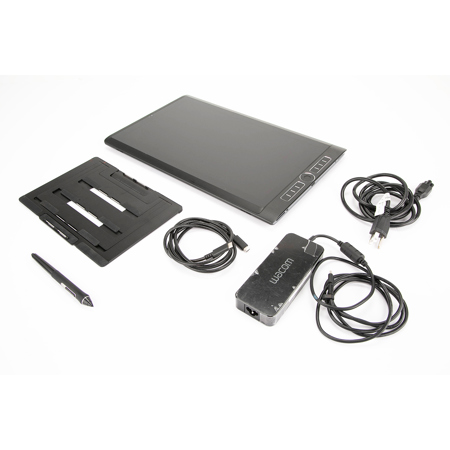

What's in the box:

  • Wacom MobileStudio Pro 16 15.6 " UHD Creative Pen Computer
  • Pen 2
  • Stand
  • AC Power Adapter + Power Cable
  • Item Note: Missing Pen Case with 3 Replacement Nibs; Color Rings and Nib Removal Hole; Pen Holder
