Mackie ONYX BLACKJACK 2 x 2 USB Recording Interface - SKU#1679787

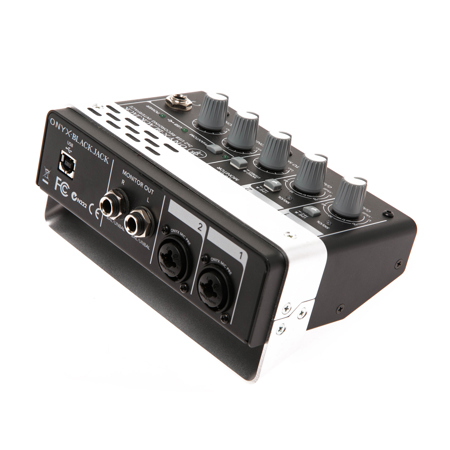

Picture does not represent the actual item
See what's in the box

See all Mackie items

Used Mackie ONYX BLACKJACK 2 x 2 USB Recording Interface, 2 Onyx Microphone Preamps, Phantom Power, 24-bit/48kHz

SKU: US1679787

This item is no longer available.

Recommended Items

Mackie DL32SE: Picture 1 regular
Mackie DL32SE 32-Ch Digital Rackmount Mixer, with Headphones & 4x XLR Mic Cable
$1,589.78$1,499.99
Mackie DL32SE: Picture 1 regular
Mackie DL32SE 32-Channel Digital Live Sound Rackmount Mixer
$1,499.99
Mackie DL16SE: Picture 1 regular
Mackie DL16SE 16-Ch Digital Live Sound Rackmount Mixer,w/Headphone, 4x XLR Cable
$959.79$899.99
Mackie DL16SE: Picture 1 regular
Mackie DL16SE 16-Channel Digital Live Sound Rackmount Mixer
$899.99
Mackie DL32S: Picture 1 regular
Mackie DL32S 32-Channel Wireless Digital Live Sound Mixer with Software Bundle
$1,499.99
Behringer X-Touch Mini: Picture 1 regular
Behringer X-Touch Mini Universal USB Controller
$70.90
Mackie DL16S: Picture 1 regular
Mackie DL16S 16-CH Mixer + Software Bundle - Includes Mackie Mixer Bag
$969.98$919.98
Mackie DL16S: Picture 1 regular
Mackie DL16S 16-Channel Wireless Digital Live Sound Mixer with Software Bundle
$899.99
Mackie : Picture 1 regular
Mackie Wireless Digital Live Sound Mixer with Built-In Wi-Fi
$899.99
Mackie DL32S: Picture 1 regular
Mackie DL32S 32-CH Mixer + Software Bundle - Includes Mackie Mixer Bag
$1,579.98$1,499.99
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Mackie ONYX BLACKJACK 2 x 2 USB Recording Interface - SKU#1679787 Specifications

  • ADC

    24-bit: Dynamic Range: 114dB typical, 10Hz to 20kHz, A-weighted
    THD + N: 0.0006% typical, 0.0011% maximum, 10Hz to 20kHz, -1dBFS

  • DAC

    24-bit: Dynamic Range: 114dB typical, 10Hz to 20kHz, A-weighted
    THD + N: 0.001% typical, 0.002% maximum, 10Hz to 20kHz, -0dBFS

  • Inputs

    2 x XLR/TRS Combi Microphone/Line

  • Outputs

    2 x 1/4" TRS phone Monitor Out, balanced or unbalanced (rear panel)
    2 x 1/4" TRS phone Headphone (front panel)

  • MIDI

    No

  • Connectivity

    USB

  • Sample Rate

    44.1 and 48kHz

  • Buffer Size

    96, 128, 256, 512, 1024

  • Input Level

    Microphone: Maximum: +10dBu (gain at minimum), Maximum: -50dBu (gain at maximum)
    Line: Maximum: +25dBu (gain at -15dB)
    Instrument: Maximum: +8dBu (gain at -15dB)

  • Input Impedance

    Microphone: 3k ohms
    Line: 18k ohms balanced, 9k ohms unbalanced
    H-Z: 1M ohms

  • Gain Range

    Microphone: 60dB

  • Output Level

    Monitor: +10dBu (at unity/maximum)
    Headphones: 8mW into 600 ohms, 1% THD+N (at unity/maximum)

  • Output Impedance

    Phones: 25 ohms
    Monitors: 300 ohms balanced, 150 ohms unbalanced

  • Phantom Power

    48VDC, 10mA maximum per microphone

  • THD + N 1

    Microphone to Monitor (direct monitor analog path, stereo) 22Hz to 22kHz bandwidth, 1kHz: <0.002% (+4dBu In, unity gain, +4dBu Out)
    Line to Monitor (direct monitor analog path, stereo) 22Hz to 22kHz bandwidth, 1kHz: <0.002% (+4dBu In, unity gain, +4dBu Out)
    Hi-Z to Monitor (direct monitor analog path, stereo) 22Hz to 22kHz bandwidth, 1kHz: <0.004% (+0dBu In, unity gain, +0dBu Out)

  • THD + N 2

    Phones 22Hz to 22kHz bandwidth, 1kHz: <0.003% (7mW into 600 ohms
    Microphone to USB Record (AD) 22Hz to fs2 bandwidth, 1kHz: <0.002% (+4dBu in, unity gain, -7dBFS record)
    USB Playback to Monitor Out 22Hz to 22kHz bandwidth, 1kHz: <0.002% (-6dBFS playback, +4dBu out)

  • Noise 1

    EIN, microphone input to USB record, 150 ohms source impedance, 22Hz to 22kHz: -124dBu (maximum gain) EIN, microphone input to USB record, 40 ohms source impedance, 22Hz to 22kHz: 126dBu (maximum gain)
    Direct Monitor Output Noise, Monitor and To Monitor levels unity/maximum, 22Hz to 22kHz: 95dBu

  • Noise 2

    USB Record Noise Floor/Dynamic Range microphone input/minimum gain, 1kHz -60dBFS: -112dBu dBFS Noise, A-weighted, -101dBu equivalent microphone input noise at unity gain; -110dB Dynamic Range, A-weighted
    USB RPlayback Noise Floor/Dynamic Range (Monitor output, Monitor level unity/maximum, To Monitor off/minimum, 1kHz -60dBFS): 97dBu Noise, A-weighted, -107dBFS equivalent digital noise, 106dB Dynamic Range (relative to +9dBu)

  • Crosstalk

    To Mon or Monitor knob off/minimum: <-100dB, 20Hz to 20kHz BW, 1kHz
    Any Channel to Any Other: <-80dB, 22Hz to 22kHz BW, 1kHz

  • CMRR

    Microphone Input, 150O termination: >-50dB at 1kHz

  • Frequency Response

    Microphone to Monitor Outputs (direct monitor analog-only path, stereo), unity gain: 15Hz to 50kHz, +0.0dB/-0.2dB,
    Line to Monitor Outs (direct monitor analog-only path, stereo), unity gain for 1/4" TRS input: 10Hz to 25kHz, +0.0dB/-1.0dB
    USB Through, microphone input to monitor output, unity gain (To Mon off/minimum): 15Hz to 21kHz, +0.0dB/-0.2dB (44.1kHz); 15Hz to 22kHz, -3.0dB at45kHz (96kHz)

  • Meters

    Bi-color channel meters

  • Power Requirements

    USB bus powered (5V up to 500mA)

  • System Requirements

    Mac: PowerPC G4 or Intel processor; OS X 10.5.0 (Intel and PPC), OS X 10.6 (Intel); 512GB RAM; FireWire port
    PC: Pentium IV, Celeron or AMD Athlon XP; Windows XP SP2, Vista (32- or 64-bit), Windows 7 (32- and 64-bit); 512MB RAM; FireWire port

  • Dimensions

    6.6 x 4.3 x 2.8" (167 x 110 x 71mm)

  • Weight

    1.5 lb (0.7kg)

About Mackie ONYX BLACKJACK 2 x 2 USB Recording Interface - SKU#1679787

The Onyx Blackjack from Mackie is a 2 x 2 USB recording Interface featuring two boutique-quality Onyx preamps and high-end 24-bit/48kHz conversion in a convenient tabletop housing. The analog to digital converters offer 114dB dynamic range (A-weighted) and the preamp circuitry is aligned precisely with the conversion to always provide the best headroom and the lowest noise and distortion possible.

Latency during recording is an issue that often requires a workaround. The Blackjack puts this issue to rest once and for all, featuring a true analog monitoring path directly from the preamps to the studio monitors and headphones. This means you can track in either mono or stereo while listening to the direct analog source with zero routing. Not only that, it also means you can adjust your buffer settings to maximize your computers processing ability.

Mackie ONYX BLACKJACK 2 x 2 USB Recording Interface - SKU#1679787 Features

  • Two boutique-quality Onyx microphone preamps with class-leading fidelity and dynamic range
  • High-headroom design with ultra-low noise and distortion
  • Professional 24-bit/48kHz recording/playback
  • High-end Cirrus Logic AD/DA converters with 114dB dynamic range (A-weighted)
  • True analog hardware monitoring of inputs, in mono or stereo, for easy zero-latency recording
  • Compatible with most major DAWs (Pro Tools 9, Logic, SONAR, Cubase, Ableton Live, Final Cut Pro and more
  • Built-in DI on each input for direct connection of guitars, basses, etc
  • 48V phantom power for use with studio-quality condenser microphones
  • USB bus-powered, eliminating need for separate power cable
  • Heavy duty desktop design
  • Includes Tracktion 3 music production software for Mac or Windows

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Mackie ONYXBLACKJACK 2x2 USB Recording Interface
  • USB Cable
  • Item Note: Missing Tracktion 3 Software for Windows or Mac
