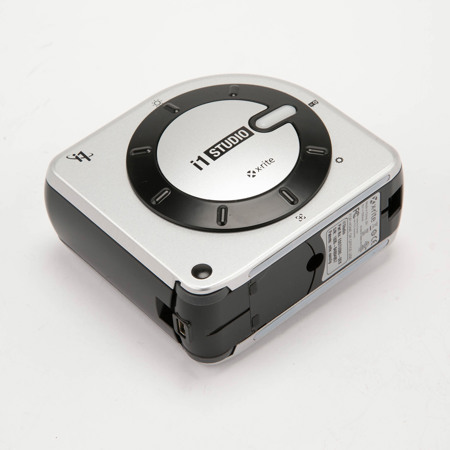

Used X-Rite i1Studio Spectrophotometer with i1Studio Profiling Software, Mini ColorChecker Classic Target, Soft-Side Holder, Protective Pouch

SKU: US1682914

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-12-25T15:25:51

Rated 5 out of 5

The best i have used

This unit is incredible. And it is simple to use. LOVE IT!!!!!

Lauro M.

2019-06-28T09:28:53

Rated 4 out of 5

Awesome tool for my workflow

This purchase is intended as an upgrade to my ColorMunki Photographer Kit. My overall assessment to the tools included and features of the i1 Studio greatly increased my productivity and streamlined my workflow by reducing the amount of paper used to acquire the desired print.

ANTONIO C.

2019-05-08T08:43:36

Rated 5 out of 5

Great customer service and support

I have yet to fully use this but as far as reaching someone at X-rite for service or questions. This is already way better than Datacolor. Good luck getting anything answered in a timely manner from them.

Joshua O.

2018-12-30T10:31:15

Rated 3 out of 5

Comprehensive calibration system

This thing does everything I could want from a calibration perspective. Having just set up my own Giclee print capability, it has been an essential piece of the process. That said, it has not been easy to get to know. The dial to switch between measure and calibrate is smooth, slippery and difficult to turn - especially with arthritic hands - and almost impossible whilst still in its protection bag. This is highly frustrating and inconvenient. There is a shutter in the bag - not on the device itself - that needs to be open to calibrate anything - its existence is not obviously indicated and until I finally discovered it, spent two days incorrectly calibrating and causing my BenQ monitor to deliver utterly haywire profiles! I drove the BenQ support folks mad too (sorry chaps)! Great technology that needs a little usability training!

Mike W.

2018-11-27T09:14:41

Rated 5 out of 5

Easy to use, prints have improved

I picked up one of these on sale to see if it would help out when I print some of my photos. Here are some of my thoughts on the experience, thus far: Packaging was solid and secure. And I like the neoprene holder for screen calibration. I'll keep it in there for some additional protection against bumps and scrapes until I need to pull it out for print calibration again. I've heard the previous generation of the software was a pain to use. Fortunately, I found the latest version to be relatively easy to use. The step-by-step walk-through right in the software was nice, and I was able to find videos showing how to use the i1Studio on YouTube, made by X-Rite technicians. They helped explain a few of the settings and steps. Calibration for my screens and printer (Canon Pixma Pro-100) went smoothly, though it does take time for ink to dry properly, so don't expect it to be a quick process if you calibrate your printer. My screens definitely required some adjustments. They were overly-bright and cool. They appear much more neutral now, which is good. Just keep in mind that changes in ambient light and color tone will affect how you perceive images, and would require another calibration to match your prints. And each paper type will require a different calibration. The hardware seems good and durable. It's mostly plastic, but that's fine. The calibration seems to work pretty easily and quickly. My only gripe is that turning the wheel to the correct setting is pretty stiff. It registers well with a click into each setting, but it can be tough to turn, especially while in the neoprene holder. Lastly, the results were pretty good. I still need to do more testing, but the calibration process was easy to do. And my prints seem to reflect the screen better than they had before. They're still not perfect replications, but that's expected. They're not the same media displaying the image. But I feel more confident that I'll waste less paper and ink trying to get the look I want on paper. Overall, definitely recommended. Would give it about 4.5 stars, but rounded up for this review.

Eric S.

2018-11-27T08:09:56

Rated 5 out of 5

A little learning curve but accurate and consistent.

So far I have used this on 3 monitors and a printer, the results are good. The actual hardware is a little awkward at first but after the first couple of monitors I had it nailed. The YouTube videos do help especially when it comes to rotating the selector.

Thomas W.

2018-10-12T14:28:06

Rated 5 out of 5

Complete Color Management System

Great tool to control all aspects of color management.

SHARON R.

2018-05-04T11:27:40

Rated 5 out of 5

Great

It calibrated my computer to the printer and worked perfectly, I'd buy it again and again.

Arik S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

X-Rite i1Studio Specifications

Compatibility

Compatibility

Jump to...
  • Compatibility

    Monitors, Projectors, Scanners, Mobile Devices and Printers
    ColorTRUE Mobile Device (Apple iOS): iPad 2, 3rd gen, 4th gen, Air, Mini, & Mini 2nd gen running iOS 7.x or later
    iPhone 4, 4S, 5, 5c, & 5s running iOS 7.x or later
    iPod Touch running iOS 7.x or later

Software

Jump to...
  • Macintosh

    MacOS X 10.11x, 10.12x, or 10.13x (with latest upgrades installed)
    512MB RAM (2GB recommended)
    Intel Core 2 Duo CPU or better CPU
    Up to 500MB of available disk space (depending on components installed)
    Powered USB port
    Monitor resolution of 1024 x 768 pixels or higher
    Latest drivers for video card installed
    High-speed internet connection required for software install, download and automatic software update

  • Macintosh (Cont.)

    User must have Administrator rights to install and uninstall the application

  • Windows

    Microsoft Windows 7 32 or 64 bit
    Microsoft Windows 8 32 or 64 bit
    Microsoft Windows 8.1 32 or 64 bit
    Microsoft Windows 10 32 or 64 bit
    All operating systems should have latest Service Pack installed
    512MB RAM (2GB recommended)
    Intel Core 2 Duo or AMD Athlon XP or better CPU
    Up to 500MB of available disk space (depending on components installed)
    Powered USB port
    Monitor resolution of 1024 x 768 pixels or higher
    Latest drivers for video card installed

  • Windows (Cont.)

    Dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
    Network adaptor installed and driver loaded
    High-speed internet connection required for software install, download and automatic software update
    User must have Administrator rights to install and uninstall the application

General

Jump to...
  • Language Version

    This product is available in the following languages: Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish

  • Ambient Light Measurement

    Approximated cosine receptor sensitivity

  • Interface

    USB 1.1 and 2.0 compatible

  • Powered Supply

    Device powered by USB, no additional power supply required

  • Windows and MAC OS Support

    Yes

  • Operating Temperature

    10 to 35 deg. C (50 to 95 deg. F)

  • Storage Temperature

    -25 to 60 deg. C (-13 to 140 deg. F)

  • Humidity

    15 - 80% non-condensing

Hardware

Jump to...
  • Main Functions

    Handheld USB powered spectrometer device for reflective and emissive targets
    Diffraction grating spectrometer featuring 45 deg./0 deg. optics
    UV cut characteristic (Results are independent from brightener effects)
    Measurement modes include: Emissive, Reflective Strip and Spot, and Ambient Light

  • Spectral Engine

    Spectral analyzer: Holographic diffraction grating with diode array
    Spectral reporting: 10nm, between 380nm, and 730nm

  • Measurement Optics

    Measurement geometry: 45 deg. / 0 deg.
    Measurement aperture: 6mm
    Light source: White LED
    Measurement characteristic: UV cut (M2)

  • Device Performance

    Inter-instrument agreement: 0.6 DeltaE 2000 average, max. 1.5 DeltaE 2000 max. (deviation from X-Rite i1Studio manufacturing standard at a temperature of 23 deg. C or single measurement mode on 12 BCRA tiles D50, 2 deg.)
    Short-term repeatability reflective: 0.1 DeltaE 2000 (D50, 2 deg.) typical, mean value of 10 measurements on white
    Short-term repeatability emission: x, y: +/-0.002 typical (5000K at 80 cd/m2)

Emissive Measurements

Jump to...
  • Monitor and Projector

    Measurement aperture when device is in contact with display: 6mm
    Measurement aperture for projector measurement to be calculated from +/-8 deg. degrees acceptance angle and distance from device to projection screen. Patch size should be at least twice that size to tolerate pointing errors
    Measurement range: 0...500 cd/m2
    Measurement time - emission: 1.5 seconds typical

Reflectance Measurements

Jump to...
  • Scanning Mode Measurements

    Recommended patch size in scanning direction: 20mm
    Maximum Scan speed using 20mm patches is 15cm/sec

  • Spot Measurement Mode

    Recommended patch size, 15mm; minimal patch size, 8mm
    Measurement time - spot: 0.5 seconds typical

About X-Rite i1Studio Spectrophotometer - SKU#1682914

FEATURED REVIEWS

Easy to use, prints have improved

By Eric S.

I picked up one of these on sale to see if it would help out when I print some of my photos. Here are some of my thoughts on the experience, thus far: Packaging was solid and secure. And I like the neoprene holder for screen calibration. I'll keep it in there for some additional protection against bumps and scrapes until I need to pull it out for print calibration again. I've heard the previous generation of the software was a pain to use. Fortunately, I found the latest version to be re...

View full Review

The best i have used

By Lauro M.

This unit is incredible. And it is simple to use. LOVE IT!!!!!

i1Studio
The new i1Studio from X-Rite is the start-to-finish color management solution for Color Perfectionists looking for expert results. Your prints will match your vision more perfectly than you ever thought possible.

The Professional-Level, Start-to-Finish Color Management Solution
The new i1Studio from X-Rite was created for photographers and designers who love to shoot, scan, edit and print, but don't love to waste time and money on the process. The award-winning and patented technology built into the i1Studio delivers precise, intuitive color management across your entire color workflow. The end result: prints that match your images across all your devices.

X-Rite is renowned for industry leading solutions and has been the choice of Color Perfectionists around the world for decades. The i1Studio is the newest, capture through print solution that takes your color-managed workflow to a new level of accuracy and control. Newest features include Printer Profiling for Black & White, Scanner Profiling, Mobile Device Profiling, Monitor Profiling for Video, plus a streamlined user experience within the amazing new i1Studio software.

i1Studio software delivers the perfect balance of automation with a full range of creative controls for photographers, filmmakers and designers looking for more options and control over their color. You'll be guided through every step with an expanded range of expert options to customize and fine-tune your workflow as desired.

i1Studio delivers a full suite of tools to calibrate and profile all your devices from capture to print. You'll be confident that what you've captured in your camera or scanner and see on all your displays and mobile devices or projectors will match your final print output. And with the time you save you can get back to focusing on what you love - making more images.

i1Studio combines world-class hardware and software to deliver expert color results for photo and filmmaker pros. i1Studio includes:

i1Studio Device
The award winning, patented, all-in-one i1Studio spectrophotometer is the only device you need to profile your monitors, projectors, scanners, mobile devices and printers. It is compact and easy to carry in it's own protective bag so you are never without the means to create an expertly calibrated and profiled workflow whether at home, in studio or on the road.

i1Studio Software for Monitors, Projectors, Scanners and Printers
i1Studio software, based on X-Rite's award winning i1Profiler software, provides an easy to navigate interface that delivers expertly calibrated and profiled monitors (including video presets), projectors, scanners and printers.

ColorChecker Camera Calibration Software and Mini ColorChecker Classic Target for Cameras
Utilizing the included industry standard 24 patch target, you'll be able to create custom camera profiles (single or dual illuminant), set a custom white balance and have a neutral starting point no matter what light you are shooting in for a more streamlined editing process. The software includes both a desktop application and an Adobe Lightroom Plug-In.

ColorTRUE Mobile App for Mobile Devices
Calibrate your Apple iOS mobile devices for a true mobile to desktop color match of all your images. Download the ColorTRUE app from the Apple App Store.

Monitor Calibration and Profiling
Once you take the guesswork and frustration out of making sure the color you see on your display is the color you expect from your printer, you'll save time and money and gain full creative control over your images. i1Studio uses advanced technologies to perfect the match between your display and printer.

• Intelligent Iterative Profiling: An adaptive technology that produces optimized results for maximum color accuracy on each unique display every time you profile
• Flare Correct measures and adjusts your display profile for reduced contrast ratios caused by flare light (or glare) falling on surface of display. By accurately measuring your effective display contrast ratio, you'll have an even more accurate display profile
• X-Rite Ambient Light Measurement - automatically determine the optimum display luminance for comparing prints to your display, based on a measurement of the lighting conditions where prints will be viewed
• Video Standards Support: NTSC, PAL SECAM, Rec. 709, Rec. 2020 and DCI-P3
• Extended User Controls: Custom control of white point, luminance, contrast ratio and gamma. Also, measure other displays or light sources and use as targets
• Multiple Monitor Profiling: Color match up to four separate displays for color accuracy across all your workflow
• Profile Validation and Reminder: View before and after results with included images or load your own or use the 3D profile gamut viewer; set reminder intervals to re-profile your display

Projector Calibration and Profiling
Now, your projected presentations can look the same as your monitor. Build an accurate projector profile in just minutes - it's as easy as building a monitor profile. The process takes all the room conditions into consideration - projected colors, screen color and room lighting - so you can be confident that your projected images are showing the way you intended.

Scanner Calibration and Profiling
Scanner profiling is super easy. Simply scan and crop your target to generate a high quality ICC profile. Supports these targets: ColorChecker Classic (Standard and Mini sizes), ColorChecker Digital SG, Reflective IT 8.7/2, Transmissive 4x5 and 35mm IT8.7/1.

RGB and CMYK Printer Profiling
Intelligent iterative profiling technology ensures your output is reproduced accurately from print to print and from printer to printer, delivering professional quality results for smoothness, highlight and shadow detail.

• i1Studio's superfast scanning can rapidly measure test charts in less than one minute! Simply scan one 50-patch test chart and i1Studio will learn how your printer behaves with these colors and dynamically generate a second chart of 50 patches. Then print and scan this second chart of 50 patches and your profile is perfected
• Option to save your test targets as TIFF files to print later or for use on a remote printer. i1Studio also supports various paper sizes
• i1Studio even has the ability to optimize your printer profile for specific colors, flesh tones or captured spot colors. i1Studio creates a 3rd test target based on extracted colors from an image and/or spot colors captured by your i1Studio device. Load your profile, generate your test target, measure and save. It's that easy

Black and White Profiling (New)
Utilizing the same intelligent iterative profiling technology for color prints, our B&W module is specifically engineered to ensure the highest quality results for your black and white prints, resulting in exceptional smoothness, highlight and shadow detail.

• Simply scan one 50-patch test chart and i1Studio will learn how your printer behaves with these colors and dynamically generate a second chart of 100 patches to better define neutrals. Print and scan this second chart and your B&W profile is now perfected
• Once you've converted your image to B&W and are ready to print, simply apply your custom B&W profile
• There is also the option to create a profile for a specific B&W look including High Contrast Neutral, Platinum or Sepia. For those of you who love B&W printing, prepare to be amazed.

What's in the box:

  • Rite i1Studio Spectrophotometer
  • Mini ColorChecker Classic Target
  • Protective Pouch
  • Original Box
