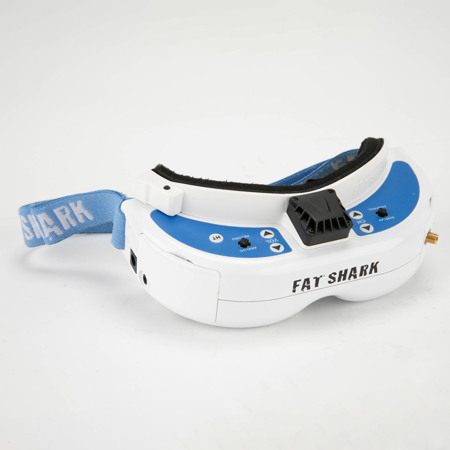

Fat Shark HD3 Dominator FPV Headset - SKU#1697087

Picture does not represent the actual item
See what's in the box

See all Fat Shark items

Used Fat Shark HD3 Dominator FPV Headset

SKU: US1697087

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Fat Shark HD3 Specifications

  • Optics: FOV (field of view)

    42 deg. diagonal

  • Optics: Type

    Plastic optics

  • Optics: Interpupillary Distance (IPD)

    59 to 69 mm (adjustable)

  • Optics: Optional Diopter Lens Inserts

    -2, -4, -6 dp

  • Display

    800 x 600 (SVGA) LCD
    Polarized LED backlight
    NTCS/PAL auto selecting
    Side/Side 3D

  • Audio

    Stereo

  • User Controls

    Channel Selection
    Volume Control
    Mode Selection (Wired/Wireless)
    Display Control
    DVR Control
    HT Control

  • Power Supply

    7 - 13 V (2S/3S supply - fan plate only accepts 2S input)

  • Power Consumption

    440mA wireless/ 250mA direct mode (no RX) (at 7.4V nominal)

  • RF Modules (Optional)

    Infinite channel support on multiple bands

  • Head Tracker (Optional)

    Modular (sold separately)

  • Analog DVR

    MicroSD support to 32GB

  • Record Rate

    6Mbps (MJPG compression, 30 fps, AVI)
    File playback (native recording, no codec support)
    Upgradeable via SD card

  • Battery

    7.4V, 1.8A (13.32Wh)

  • Interface

    3.5mm AV in/out port
    Power in port
    3.5mm 3p earphone port
    MiniDIN4 data port (head tracking)
    MicroSD
    Mini HDMI (720p 50/60 Hz, 16 to 9 display ratio)
    RF module port

  • Dimensions

    169.2 x 80 x 45.5mm (6.66 x 3.15 x 1.79")

  • Weight

    152g (5.36 oz)

About Fat Shark HD3 Dominator FPV Headset - SKU#1697087

The HD3 is back in top form with subtle improvements to ensure its continued dominance as the world's premier FPV goggle. The FOV on the HD3 has been dialed back to 42 degrees to maintain a large screen experience while delivering crisp optical performance for OSD readability.

Digital pilots will appreciate the new 16:9 display format when in HDMI mode to match the display aspect ratio of HD systems. HD3 ships with new lower profile Hook and Loop backed (removable) faceplate foam for a more accommodating fit. The HD3 is the most powerful, versatile and portable FPV goggle and the top choice of drone pilots.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Fat Shark FSV1076 Dominator FPV Headset
  • 1800mAh Battery with LED Indicator
  • Micro USB Cable
  • Zipper Carry Case
  • Item Note: Missing 3m AV Cable; HDMI Cable with Micro and Mini Adapters; DC DIY Cable
