Review Summary
Focusable Fresnel
274mm / 10.79"
15 deg. - 50 deg. (Half Peak Angle)
Adjustable Sliding Stirrup, High Strength Tilt Lock
28mm Spigot (Junior Pin)
+/- 90 deg.
100 - 250 V AC, 50 - 60Hz
400W (Nominal), 510W (Maximum)
powerCON TRUE1 (Bare Ends)
2800 K - 10000 K Continuously Variable Correlated Color Temperature
Full RGB+W Color Gamut with Hue and Saturation Control
+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
CRI Average >95 (3200 K to 6500 K), TLCI Average >91
Continuously Adjustable (Full Minusgreen to Full Plusgreen)
0 - 100% Continuous
5-Pin DMX In and Through, On-Board Controller, Mini-USB
DMX Setup, Hour Counter and Standard RDM Commands
DMX Setup, Fixture Status and Firmware Upgrade Through PC Software
-20 to 45 deg. C / -4 to 113 deg. F
IP 20
50000 hours
< 200 K
Pending CE, GS, FCC, cNRTL, CB
43.4lbs / 19.69kg

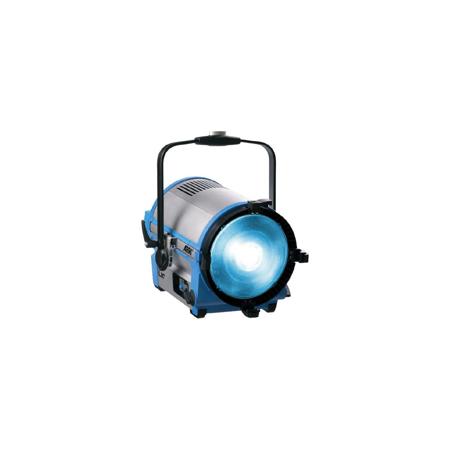

Color temperature, tint and hue can be continuously adjusted from 2800 K to 10000 K, between full plus or minus green and RGBW colors. The L10 is the brightest and largest L-Series lamp head to date. Its substantial 10 inch Fresnel lens and powerful output allow for more distant fixture placement and the wrapping of light around objects in a natural and pleasing way. At more than twice the brightness of the L7, the L10 is also one of the brightest LED Fresnels on the market.Tuneability is the cornerstone of all ARRI LED fixtures and much like the L7 and L5, its smaller counterparts, the L10 is fully color tuneable. With the ability to adjust the color temperature from 2800 - 10000 K, as well as the green/magenta point, users have complete control over the color output of the fixture.
In a robust housing that combines aluminum with high-strength, fiberglass-reinforced thermoplastics, the L10 is designed to withstand the stresses of diverse professional environments, from motion picture sets to television studios and everything in-between. This robust construction allows the L10 to live up to the benchmark of rugged durability set by other ARRI lighting fixtures.
Stand-Mount
versions include the following base configuration: 28mm Spigot (Junior Pin), Inline Switch, Integrated 5-Pin DMX In and Thru.
Hanging
versions include the following base configuration: 28mm Spigot (Junior Pin), 1.5m (5') Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.
Pole-Operated
versions include the following base configuration: Pole Operation for Pan, Tilt and Focus, 28mm Spigot (Junior Pin), 1.5m (5') Cable with Bare Ends, Integrated 5-Pin DMX In and Thru.
Additional Features
Fully Tuneable from 2800 K - 10000 K
Plus/Minusgreen correction
Vibrant Color Selection (RGB+W Color Gamut)
Hue and Saturation Control
High Color Rendering
Low Power Consumption (400 W Nominal)
Fully Dimmable
True Fresnel Lens Light Characteristics
Onboard DMX In and Out
RDM Implementation
USB Mini Connection for Firmware Updates
Available in Blue/Silver and Black
Fan Mode Selection
powerCON TRUE1 Power Connector
