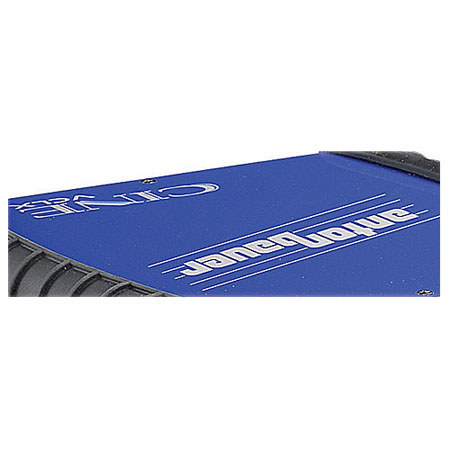

Anton Bauer CINE VCLX CA Dual Voltage Battery

Picture does not represent the actual item
See what's in the box

See all Anton Bauer items

Used Anton Bauer CINE VCLX CA Dual Voltage Battery

SKU: US1705298

This item is no longer available.

Recommended Items

Anton Bauer VCLX NM2: Picture 1 regular
Anton Bauer VCLX NM2 600Wh Dual Voltage Ni-MH Free-Standing Battery
$4,469.75$3,969.75
Anton Bauer VCLX LI 1600: Picture 1 regular
Anton Bauer VCLX LI 1600 1642Wh Lithium-Ion Free Standing Battery
$5,445.00$5,172.75
Anton Bauer SO-14/28R: Picture 1 regular
Anton Bauer SO-14/28R Simultaneous Voltage Snap-On Belt
$1,662.50$1,401.00
Anton Bauer NM38: Picture 1 regular
Anton Bauer NM38 630wh Battery Replacement Module
$2,560.25$2,437.75
Anton Bauer NM44: Picture 1 regular
Anton Bauer NM44 Cell Replacement Module for VCLX NM2 Battery
$2,299.00$2,189.00
Anton Bauer : Picture 1 regular
Anton/Bauer SO-30/13 Snap-On Gold-Mount Power Belt
$69.00$64.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Anton Bauer CINE VCLX CA Dual Voltage Battery Specifications

  • Chemistry

    Nickel Metal Hydride

  • Output Voltage

    14.4 VDC on a 4-Pin XLR
    28 VDC on a 3-Pin XLR
    Both Voltages on an 8-Pin Lemo

  • Connection

    14.4 VDC on a 4-Pin XLR
    28 VDC on a 3-Pin XLR
    Multi-Pin for Charger Connection
    Both Voltages on an 8-Pin Lemo

  • Capacity

    560 Wh, 38 Ah

  • Dimensions (WxHxD)

    12.7 x 2.25 x 8.5" (32.3 x 14 x 25.3cm)

  • Weight

    25 lbs (11.7 kg)

  • Warranty

    Anton Bauer 1 year warranty

About Anton Bauer CINE VCLX CA Dual Voltage Battery

The Anton Bauer CINE VCLX CA BATTERY is specifically designed for use with the Sony F-23 Cine Alta camera, supplies both 28 and 14 volts on a single cable, via an 8 pin Lemo connector along with a single 28 volt 3-pin and a 14 volt 4-pin.

Anton Bauer CINE VCLX CA Dual Voltage Battery Features

  • Cine Alta: The specialized CINE-VCLX-CA version is specifically designed for use with the Sony F-23 Cine Alta camera. This battery supplies both 28 and 14 volts on a single cable, via an 8 pin Lemo connector along with a single 28 volt 3-pin and a 14 volt 4-pin
  • Microproccessor: The microprocessor accuratly monitors energy distribution of the battery. Therefore, this battery "learns" it's own parameters and communicates with the charger for optimum performance
  • Dual Voltage: This battery offers 28 VDC cine voltage on a 3-Pin XLR and a 14.4 VDC video voltage via 4-Pin XLR connectivity
  • Case Design: The design of this case protects the cells from impact and tranportation situations
  • Protection: A low voltage cut-off of 12 VDC protects the battery against electronic damage

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Anton Bauer CINE VCLX CA Dual Voltage Battery
