edelkrone Slide Module v3 Specifications

  • Material

    CNC machined aluminum and stainless steel components
    High contrast sharp OLED screen

  • Compatibility

    Previous generation SliderPLUS, SliderPLUS PRO, SliderPLUS X, SliderPLUS M and SliderPLUS v5 series

  • Incline Capacity

    Up to 22.5 Degree with 5.5 lbs (2.5kg)

  • Min. Step Size on Tripod

    22.4 microm

  • Min. Step Size on Ground

    11.2 microm

  • Max. Speed on Tripod

    2.52"/sec (6.42cm/sec)

  • Max. Speed on Ground

    1.26"/sec (3.21cm/sec)

  • Supported fps

    All

  • Number of Axes

    Single (the slide motion)

  • Motor Type

    Step motor with ultra high-res encoder

  • Power Input

    2x LP-E6 type battery or x2 NP-F type battery (Batteries and battery brackets are sold separately.)

  • Shutter Trigger Cable Socket

    2.5mm (Shutter trigger cable is sold separately)

  • Can be Paired with

    HeadONE (Both in single or dual modes), Pan PRO, HeadPLUS (v2 & v1), HeadPLUS PRO (v2 & v1)

  • Can be Controlled

    edelkrone App, edelkrone Controller

  • Mobile Device Connection

    2.4GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

  • App. Compatibility

    iOS 11.0 or later & Android 5.0 or later

  • DC Plug Specs

    Voltage input: 100-240V
    Voltage out: 9.0V
    Current output: 2.2A
    Polarization: positive center
    Output connector: Barrel plug, 2.1mm I.D. x 5.5mm O.D x 9.5mm

  • Battery life

    With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
    Operates 2 hours (continuously at full speed)
    Shoots 12000 photographs (in Time-Lapse mode)

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions (L x W x H)

    5.3 x 3.18 x 2.59" (135 x 81 x 66mm)

  • Weight

    1.87 lbs (0.85kg)

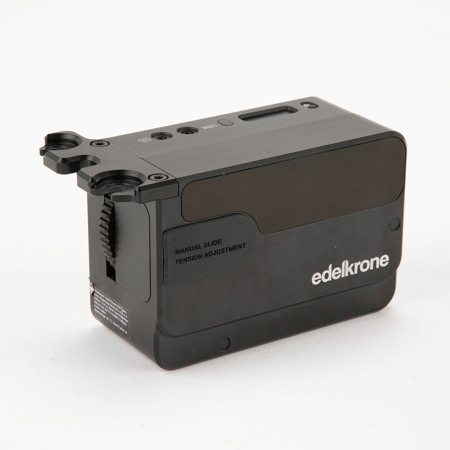

About edelkrone Slide Module v3 for All SliderPLUS Models - SKU#1707591

When it comes to enhancing your videography experience, the Slide Module v3 for all SliderPLUS models is an essential tool. This motorized add-on is designed to provide perfectly stable slides and program motion time-lapse and stop motion videos with ease.

The Slide Module v3 boasts an improved wireless connection and extended range, ensuring seamless operation. A physical power button has been added for convenience, and the power management system has been enhanced with auto power off and power-saving modes. The user experience is further improved by the inclusion of an information screen, providing instant feedback on the device's status.

One of the standout features of the Slide Module v3 is its quiet operation. Thanks to its mechanical design with backlash-free gears, it offers macro-precise, loopable motion, providing the necessary smoothness for macro shots and perfect steady speed control throughout the entire slide.

The Slide Module v3 is perfect for visual effects, capable of repeating any motion flawlessly. Paired with your favorite video editing software, you can create stunning visual effects that will captivate your audience.

The new design of the SliderPLUS v5 allows for tasty inclines up to 22.5 degrees when paired with the Slide Module v3. This feature is not recommended for use with motorized heads.

The Slide Module v3 can be hand-controlled, allowing you to manually adjust the positions of SliderPLUS and HeadPLUS. This feature offers an unprecedented speed to your workflow, making the whole process more intuitive.

The Slide Module v3 can wirelessly connect to edelkrone Heads, opening the door to amazing 2-, 3-, or 4-axis camera motions. These motions can be easily programmed and repeated, allowing you to record unique motion time-lapses and visual effects shots.

The Slide Module v3 also offers exclusive edelkrone features for one-person video production, including Automatic Target Tracking, Live Target Switching, Instant Target Learning, Sequencer feature, and Stop motion software integration with HeadPLUS.

Setting up a motion time-lapse is a breeze with the edelkrone App. The App scans available devices in its surroundings and pairs with them automatically, providing a single screen to control all devices together.

The Slide Module v3 is compatible with the edelkrone Controller v2, a dedicated solution for those who prefer not to use their phone. The Controller is compatible with all motorized edelkrone sliders, jibs, heads, and dollies, allowing you to easily control any combination of these devices.

The Slide Module v3 features a super accurate backlash-free gear design, ensuring perfectly repeatable, smooth motion for even the most demanding shots. It also boasts ultra-quiet step motor driving technology, combining ultra-precise step motor positioning with ultra-quiet operation.

In conclusion, the Slide Module v3 for all SliderPLUS models is a versatile, user-friendly, and high-performing tool that can significantly enhance your videography experience.

edelkrone Slide Module v3 for All SliderPLUS Models - SKU#1707591 Features

  • Gives SliderPLUS v5 automated sliding motion both horizontally & inclined (up to 22.5 Degree with 5.5 lbs)
  • Can be hand-controlled
  • Wireless connectivity with HeadONE or HeadPLUS / HeadPLUS PRO
  • Ultra precise backlash-free operation and loopable motion
  • Compatible with edelkrone App and/or edelkrone Controller
  • Ultra quiet operation
  • Auto power off & power saving modes for better power management
  • Compatible with all SliderPLUS models purchased from Jan 2016
  • Works with 2x Canon LP-E6 or 2x NP-F batteries
  • Can also be powered via AC-DC adapter
  • High contrast sharp OLED screen for instant feedback
  • 100% CNC machined aluminum body

What's in the box:

  • edelkrone Slide Module v3
  • Connector Cable
  • Original Box
  • Item Note: Missing Connection Screws; Allen key
