AV Toolbox AP-536 Specifications

  • Signal Input: HDMI

    Type A HDMI connector

  • Signal Output: HDMI

    Type A HDMI connector

  • Signal Output: Audio

    Optical audio connector

  • Signal Output: Analog Audio

    2 x RCA (L/R) connectors

  • Audio Format

    HDMI: LPCM 2.0/5.1/7.1, Dolby 5.1, DTS 5.1, DD+ Dolby TrueHD, DTS-HD Master Audio
    Optical: LPCM 2.0, Dolby 5.1, DTS 5.1
    L/R: Stereo audio

  • Sample Rate

    HDMI: Up to 192 kHz
    Optical Audio: 48 kHz

  • Audio Bandwidth

    20 Hz to 20 kHz

  • External Power Supply

    5 VDC, 1.2 A

  • Audio

    Extractor: FCC, CE, RoHS

  • Power Adapter

    UL, CUL, CE, PSE, GS, RoHS

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Storage Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Operating Humidity

    10 to 90%, non-condensing

  • Storage Humidity

    10 to 90%, non-condensing

  • Dimensions (H x W x D)

    1.3 x 3.6 x 3.4" / 3.3 x 9.14 x 8.64cm

  • Weight

    3.2oz / 90.72g

About AV Toolbox AP-536 HDMI Audio Extractor, 225MHz Clock Rate, 192kHz HDMI/48kHz Audio

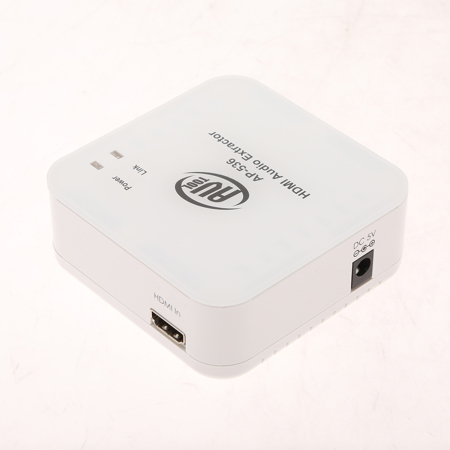

The AV Toolbox AP-536 HDMI Audio Extractor is a compact device that allows you to extract embedded audio from an HDMI signal. Some video displays accept an HDMI video signal but do not provide a way to process the embedded audio. The AP-536 will extract, process and present for distribution many of the standard embedded audio formats and provide both optical and analog outputs for connection to your audio amplification system. Fully compliant with HDMI 1.3, HDCP 1.2 and DVI 1.0, the AP-536 HDMI Audio Extractor operates at a clock speed of 225 MHz and sample rates of 192kHz and 48 kHz for HDMI and Audio signals respectively. Full support of high Bitrate audio signals is provided and cable distances of up to 50 feet (15 meters) are possible for 1080p HDMI signals. An AC adaptor is provided.

AV Toolbox AP-536 HDMI Audio Extractor, 225MHz Clock Rate, 192kHz HDMI/48kHz Audio Features

  • Supports high bit-rate audio signals
  • Supports cable distances of up to 50' for 1080p HDMI signals
  • Compliant with HDMI 1.3, HDCP 1.2 and DVI 1.0
  • Supports HDMI sample rates up to 192 kHz
  • Selectable audio EDID of TV, LPCM 2.0, or Bitstream
  • Audio spectrum sample rate of 48 kHz
  • 225 MHz clock rate
  • Simple installation
  • Low power consumption
