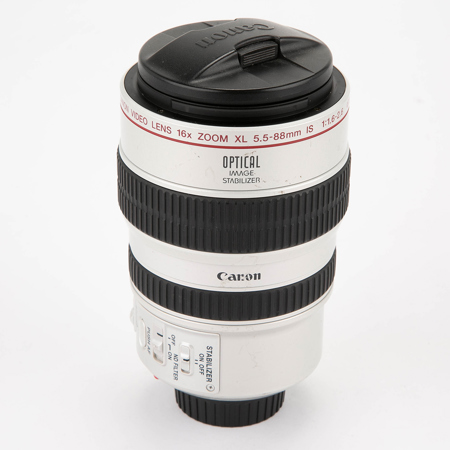

Canon 16x Zoom Image Stabilized XL 5.5-88mm IS II Video Lens For XL-2/XL1/XL1s

Picture does not represent the actual item
See what's in the box

See all Canon items

Used Canon Canon 16x Zoom Image Stabilized XL 5.5-88mm IS II Video Lens For XL-2 / XL-1 / XL-1S

SKU: US1728683

This item is no longer available.

Recommended Items

Canon : Picture 1 regular
Canon XJ22x7.3B IE-D DIGISUPER 22x Lens
$4,791.00$4,263.00
Canon CJ18ex7.6B IASE S: Picture 1 regular
Canon CJ18ex7.6B IASE S 2/3" 4K UHD ENG/EFP 7.6-137mm Zoom Lens with Full Servo
$6,886.00
Canon : Picture 1 regular
Canon HJ24EX7.5B IASE S 2/3" Hi-Def ENG/EFP Zoom Lens with Full Servo Control
$6,808.00$6,399.00
Canon : Picture 1 regular
Canon J18x8.5B4 IRS with 2x extender 18x Lens with B4 Mount
$450.00$436.00
Canon : Picture 1 regular
Canon KJ16eX7.7B IRSD PS12 HD 2/3" Lens with Servo Zoom
$1,327.00$1,207.00
Canon CJ18ex7.6B IASE S: Picture 1 regular
Canon CJ18ex7.6B IASE S 2/3" 4K UHD ENG/EFP 7.6-137mm Zoom Lens with Full Servo
$23,700.00
Canon HJ14EX4.3B: Picture 1 regular
Canon HJ14ex4.3B Wide Angle HDTV Production Lens
$36,900.00$31,826.50
Canon : Picture 1 regular
Canon KJ20x8.5B KTS HDgc 20x 2/3" Full-Servo Lens
$849.00$772.00
Canon : Picture 1 regular
Canon HJ11ex4.7B IRSE High Definition Wide Angle Lens
$1,999.00
Canon KJ20x8.2B: Picture 1 regular
Canon KJ20x8.2B 20x HD Lens with 2x Zoom Extender
$5,999.95
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2013-05-06T21:00:00

Rated 4 out of 5

Excellent addition

This is serving as a backup to my main len. It is a little shorter throw but it will work in case I have a problem while shooting. It performs well.

George

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Canon 16x Zoom Image Stabilized XL 5.5-88mm IS II Video Lens For XL-2/XL1/XL1s Specifications

  • Focal Length (Nominal)

    5.5 - 88mm

  • F number (Nominal)

    F1.6 - 2.6

  • Angle of View (Nominal)

    Wide 47° 09' x 36° 14' (diagonal angle: 57° 13')
    Tele 3° 07' x 2° 20' (diagonal angle: 3° 55')

  • Minimum subject distance

    From the edge of the lens
    Wide 20mm (3/4 in)
    Entire Zoom range & Mid 1m (3ft 3 3/8in)
    Tele 1m (3ft 3 3/8in)

  • Minimum subject range

    Wide 54 x 40.5 mm (diagonal angle 67.5mm) (2 1/8 x 1 5/8 in(2 5/8))
    Tele 73 x 54.5 (diagonal angle: 91mm) (2 7/8 x 2 1/8 (3 5/8))

  • Lens configuration

    10 groups 12 elements (2 aspherical elements) + vari-angle prism + protection glass

  • Zoom system

    Power Zoom, manual zoom via zoom ring

  • Zooming speed

    Multi-level variable speed (16-stage, approx 1.7 - 60 sec.) Single speed (approx. 30 sec.: via wireless controller)

  • Aperture

    6-blade iris type. Automatic (operation from the camera) only.

  • Mount

    Compliant with XL mount system

  • Filter Screw diameter

    72mm dia. P0.75 (2 7/8 in dia.)

  • Focus System

    TV-AF (video signal AF) compliant, a manual focus ring

  • Subject distance

    20mm - infinity (Wide), 1m - infinity (Entire Zoom Range & Mid), 1m - infinity (Tele)

  • 'Image Stabilizer

    Super Range optical image stabilizer

  • Detecting method

    Angular speed detection ON-OFF switch equipped. Turned off when image stabilizer isn't used or when no lens is mounted.

  • ND filter

    Built-in filter detachable with a switch, equivalent to 5 apertures (approx. 3.1% transparency)

  • Color

    Pearl White

  • Hood

    Bayonet hood (edge of the lens) for the lens

  • Power consumption

    500 mA or less

  • Size

    Approx 92 (max dia) x 134 mm (Approx 3 5/8 dia x 5 1/4in)

  • Weight

    Approx 650 g ( approx 1 lb 6 7/8oz)

About Canon 16x Zoom Image Stabilized XL 5.5-88mm IS II Video Lens For XL-2/XL1/XL1s

This lens resolves over 600 vertical lines to record an extraordinarily sharp image. By exceeding the DV standard of 500 TV lines, the Canon lens delivers greater visual "sharpness" through its higher sensitivity in the all-important 100 to 250 TV line resolution area. It is fitted with a variable angle prism for optical image stabilization, has an ND filter, manual focus and zoom rings, plus a push AF function.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Canon Canon 16x Zoom Image Stabilized XL 5.5-88mm IS II Video Lens For XL-2 / XL-1/ XL-1S
  • Lens Hood
  • Lens Cap
  • Dust Cap
  • Soft Case
