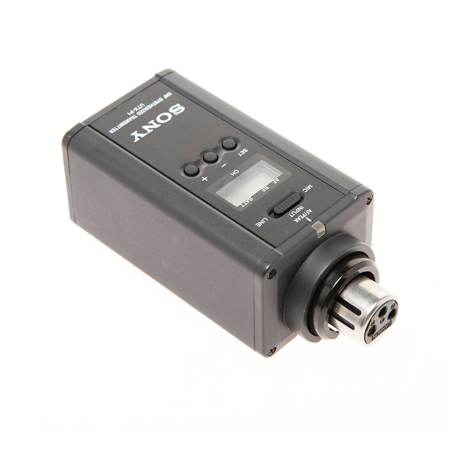

Sony UTX-P1 UWP Series Plug-on Transmitter - TV Channel 30-33 SKU#1730676

Picture does not represent the actual item
See what's in the box

See all Sony items

Used Sony UTX-P1 UWP Series Plug-on Transmitter, Operating on TV Channels 30 to 33

SKU: US1730676

This item is no longer available.

Recommended Items

Sony UTX-P40: Picture 1 regular
Sony UTX-P40 Plug-On Transmitter, 25UC: 536 to 608MHz
$349.99
Sony UTX-P40: Picture 1 regular
Sony UTX-P40 Wireless Plug-On Transmitter, UC90: 941 to 960 MHz
$380.00
Sony UTX-P40: Picture 1 regular
Sony UTX-P40 Plug-On Transmitter, 14UC: 470 to 542MHz
$380.00
Sony UTX-B40: Picture 1 regular
Sony UTX-B40 Wireless Audio Bodypack Tx with Lavalier Mic, UC90: 941-960 MHz
$380.00
Sony UTX-B40: Picture 1 regular
Sony UTX-B40 Bodypack Transmitter with Omni Lavalier Mic, 14UC: 470 to 542MHz
$380.00
Sony URX-P40: Picture 1 regular
Sony URX-P40 Camera-Mount Wireless Receiver, UC90: 941-960MHz
$380.00
Sony URX-P40: Picture 1 regular
Sony URX-P40 Camera-Mount Wireless Receiver, 25UC: 536 to 608MHz
$380.00$369.99
Sony Wireless Audio Receiver: Picture 1 regular
Sony URX-P41D Dual-Ch Camera-Mount Wireless Receiver, 25UC: 536.1 to 607.8MHz
$750.00
Sony URX-S03D: Picture 1 regular
Sony URX-S03D 2-Ch Slot-In Wireless Rx for UWP-D Mic System, UC90: 941-960MHz
$1,855.00
Sony URX-P40: Picture 1 regular
Sony URX-P40 Camera-Mount Wireless Receiver, 14UC: 470 to 542MHz
$349.99
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Sony UTX-P1 Specifications

  • Oscillator

    Crystal-controlled PLL synthesizer

  • Type Of Emission

    F3E

  • Carrier Frequencies

    566 to 590 MHz (TV channels 30 to 33)

  • RF Power Output

    50 mW

  • Pilot Tone Signal

    32 kHz

  • Frequency Response

    50 Hz to 18 kHz

  • Reference Deviation

    +/-10 kHz (-60 dBV, 1kHz input)

  • Signal-To-Noise Ratio

    60 dB or more (+/-10 kHz deviation at 1 kHz modulation, A-weighted)

  • Audio Attenuator Adjustment Range

    0 to 21 dB (in 3 dB steps)

  • Audio Input Level

    MIC input position: -60 dBV (at 0 dB attenuator level), LINE input position: +4 dBu

  • Audio Input Connector

    XLR-3-11C type

  • Indicators (LCD, LED)

    LCD: channel/freq, attenuator, audio-input, RF-output, battery, operating time. LED: audio-input

  • Power Requirements

    DC 3.0 V (two AA-size batteries)

  • Battery Life

    Approx. 6 hours with Sony AA-size batteries at 25 °C (77 °F)

  • Dimensions (W x H x D)

    1-3/4 x 3-7/8 x 1-7/16 inches

  • Weight

    Approx. 6 oz including batteries

  • Warranty

    Sony warranty

About Sony UTX-P1 UWP Series Plug-on Transmitter - TV Channel 30-33 SKU#1730676

The Sony UTX-P1 plug-on transmitter is designed to be used with Sony UWP series wireless tuners. It's extremely durable and is well balanced for use with the Sony F-112 - a dynamic microphone suited to cost-effective newsgathering applications. The UTX-P1 plug-on transmitter also accepts line-level audio input signal as well.

Whether used in a low-cost ENG or EFP system, the UTX-P1 delivers the convenience of uncompromised wireless microphone operation at a very affordable price.

Sony UTX-P1 UWP Series Plug-on Transmitter - TV Channel 30-33 SKU#1730676 Features

  • Plug-on transmitter designed only for use with UWP Series tuners
  • Operates over a wide 24 MHz frequency band within the range of 566 to 590 MHz
  • Converts a wired microphone to a wireless microphone via an XLR connection
  • 50 mW RF power output for stable and long-distance transmission
  • MIC/LINE input level switchable
  • Approximately six hours of continuous operation with two AA-size batteries
  • A backlit LCD provides extensive information, including the operating channel number and frequency in MHz, attenuator level, audio-input status, RF-output status, transmitter-battery status and accumulated operating time

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Sony UTX-P1 UWP Series Plug-on Transmitter
  • Soft Case
