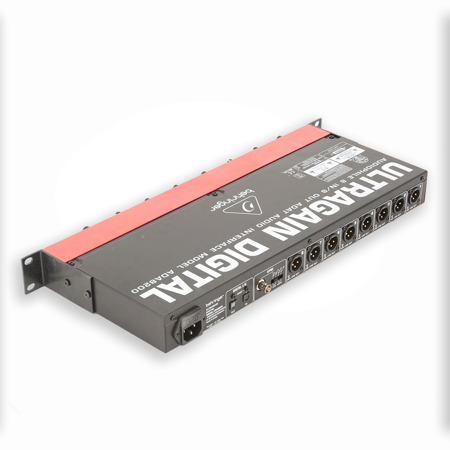

Used Behringer Ultragain Digital ADA8200 Audiophile 8 In/8 Out ADAT Audio Interface with MIDAS Mic Preamplifiers

SKU: US1734584

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-02-12T04:56:58

Rated 5 out of 5

ADAT Approved

Worked as expected and allowed me to add inputs and outputs through ADAT.

JACOB B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Behringer ADA 8200 Specifications

  • Microphone Inputs: Design

    MIDAS designed Microphone Preamp

  • Microphone Inputs: Type

    XLR connector, electronically balanced, discrete input circuitry

  • Microphone Inputs: Gain range

    +10 to +60 dB

  • Microphone Inputs: Max. input level

    +6 dBu at +10 dB gain for 0 dB FS

  • Microphone Inputs: Impedance

    2.7 kOhms balanced

  • Microphone Inputs: Phantom power

    +48 V, switchable

  • Line Inputs: Type

    1/4" TRS connector, electronically balanced, discrete input circuitry

  • Line Inputs: Impedance

    Approx. 20 kOhms balanced, Approx. 10 kOhms unbalanced

  • Line Inputs: Gain range

    -10 to +40 dB

  • Line Inputs: Max. input level

    +26 dBu at -10 dB gain for 0 dB FS

  • Line Outputs: Type

    XLR connector, electronically balanced

  • Line Outputs: Impedance

    Approx. 1 kOhms balanced, Approx. 500 Ohms unbalanced

  • Line Outputs: Max. output level

    +16 dBu at 0 dB FS

  • Digital Input: Type

    TOSLINK, optical connector

  • Digital Input: Format

    ADAT, 8 channels, 24-bit at 44.1 / 48 kHz

  • Digital Output: Type

    TOSLINK, optical connector

  • Digital Output: Format

    ADAT, 8 channels, 24-bit at 44.1 / 48 kHz

  • Synchronization: Source

    internal 44.1 / 48 kHz, ADAT input, word clock input

  • Word Clock Input: Type

    BNC connector

  • Word Clock Input: Input level

    2 to 6 V peak-to-peak

  • Word Clock Input: Frequency range

    44.1 to 48 kHz

  • System: Frequency range

    10 Hz to 24 kHz at 48 kHz sample rate

  • System: THD

    < 0.008%

  • System: Crosstalk

    < -87 dB

  • Power supply

    100 - 240 V AC

  • Power consumption

    15 W

  • Fuse

    T 1A 250 V

  • Mains connection

    Standard IEC receptacle

  • Dimensions (H x W x D)

    1.75 x 19 x 8.5" / 4.44 x 48.26 x 21.59cm (Approx.)

  • Weight

    4.6lbs / 2.08kg (Approx.)

22 Accessories for Behringer Ultragain Digital ADA8200 Audiophile 8 In/8 Out ADAT Audio Interface with MIDAS Mic Preamplifiers

  • All Accessories (22)
  • Cables & Adapters (22)

About Behringer Ultragain Digital ADA8200 Audiophile 8 In/8 Out ADAT Audio Interface

FEATURED REVIEWS

ADAT Approved

By JACOB B.

Worked as expected and allowed me to add inputs and outputs through ADAT.

The Behringer ULTRAGAIN DIGITAL ADA8200 Audiophile 8 In/8 Out ADAT Audio Interface exemplifies professional-grade audio conversion with its state-of-the-art MIDAS-designed Mic Preamps and high-precision integrated A/D and D/A converters. Engineered to deliver flawless signal integrity, the ADA8200 ensures that your recordings are captured with the utmost clarity, free from distortion or signal degradation.

Crafted for the discerning musician and audio engineer, the ADA8200 boasts reference-class Cirrus Logic converters coupled with the renowned MIDAS preamps, offering unparalleled audio fidelity. Whether you're recording in the studio or processing live audio, this interface provides a robust and reliable solution that fits seamlessly into a single rack space for optimal studio organization.

The ADA8200 operates with impressive flexibility, supporting signal conversion at 44.1 or 48 kHz with a 24-bit resolution, catering to a broad spectrum of audio requirements. The ultra-wide frequency range of 10 Hz to 24 kHz at a 48 kHz sampling rate ensures that every nuance of your audio is accurately reproduced.

Designed with versatility in mind, the ADA8200 features a comprehensive array of connections. Balanced XLR and 1/4" TRS inputs, as well as unbalanced 1/4" TS inputs, provide compatibility with a wide range of audio sources. Balanced XLR line-out connectors on the rear panel offer both balanced and unbalanced output options.

Digital connectivity is expertly handled via ADAT format TOSLINK optical sockets, which facilitate up to 8 channels of pristine digital audio data. The ADA8200's ADAT inputs and outputs can function independently, provided they share an identical wordclock signal, ensuring synchronization across your digital audio setup.

For those integrating the ADA8200 with a computer-based recording system, it effortlessly connects to a MOTU PCI-424 card via a MOTU 2408, operating in PCI Mode under computer control. When set to SLAVE mode, the ADA8200's SYNC option accepts clock input directly from the MOTU 2408, guaranteeing precise timing and synchronization across your digital audio environment.

The Behringer ULTRAGAIN DIGITAL ADA8200 is not just an audio interface; it's a gateway to capturing audio with professional fidelity, making it an essential component for any serious audio production setup.

What's in the box:

  • Behringer Ultragain Digital ADA8200 Audiophile 8 In/8 Out ADAT Audio Interface
