RED Digital Cinema RED RANGER Specifications

  • Sensor Type

    MONSTRO 35.4 Megapixel CMOS

  • Effective Pixels

    8192 x 4320

  • Sensor Size

    40.96 mm x 21.60 mm (Diagonal: 46.31 mm)

  • Dynamic Range

    17+ stops

  • Max Data Rates

    Up to 300 MB/s using RED MINI-MAG (480GB & 960GB)
    Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)

  • Max Frame Rates

    60 fps at 8K Full Format (8192 x 4320), 75 fps at 8K 2.4:1 (8192 x 3456)
    60 fps at 7K Full Format (7168 x 3780), 75 fps at 7K 2.4:1 (7168 x 3024)
    75 fps at 6K Full Format (6144 x 3240), 100 fps at 6K 2.4:1 (6144 x 2592)
    96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
    120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)

  • Max Frame Rates (Contd.)

    150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
    240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)

  • Playback Frame Rates

    Project Timebase: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps, all resolutions

  • Redcode Settings

    Range From 2:1 Up To 22:1
    5:1 REDCODE for 8K Full Format (8192 x 4320) at 24 fps
    12:1 REDCODE for 8K Full Format (8192 x 4320) at 60 fps
    2:1 REDCODE for 4K Full Format (4096 x 2160) at 24 fps
    3:1 REDCODE for 4K Full Format (4096 x 2160) at 60 fps

  • Redcode Raw Acquisition Formats

    8K Full Format (8192 x 4320), 2:1, 2.4:1, 16:9, 14:9, 8:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
    7K Full Format (7168 x 3780), 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
    6K Full Format (6144 x 3240), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x

  • Redcode Raw Acquisition Formats (Contd.)

    5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
    4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, 1:1, and Ana 2x, 1.3x
    3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
    2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x

  • Apple Prores

    ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 x 2160) up to 30 fps
    ProRes 4444 XQ and ProRes 4444 at 2K (2048 x 1080) up to 120 fps
    ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 x 1080) up to 120 fps

  • AVID CODECS

    DNxHR HQX at 4K (4096 x 2160) 12-bit up to 30 fps
    DNxHR HQ, SQ and LB at 4K (4096 x 2160) 8-bit up to 30 fps
    DNxHR 444 at 2K (2048 x 1080) 12-bit up to 120 fps
    DNxHD 444 and HQX (1920 x 1080) 10-bit up to 120 fps
    DNxHD HQ and SQ (1920 x 1080) 8-bit up to 120 fps

  • Construction

    Aluminum Alloy

  • DC IN Power Input

    11.5 V DC to 32 V DC

  • Operating Temperature

    0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)

  • Relative Humidity

    0% to 85% non-condensing

  • Color Management

    Supports 33 x33 x33, 32 x32 x32, 26 x26 x26, and 17 x17 x17 3D LUTs
    Variable number of 3D LUT outputs
    User programmable shaper 1D LUTs
    Tetrahedral interpolation, 16-bit processing

  • Audio

    Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
    Integrated dual channel 5-pin XLR with preamplifiers, uncompressed, 24-bit 48 kHz

  • Remote Control

    External R.C.P. WiFi antenna with SMA connector Ethernet, RS232, and GPI Trigger

  • Monitor Outputs

    3G-SDI (HD-SDI) and MON-1
    1080p RGB or 4:2:2, 720p RGB or 4:2:2
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC2 RED Touch 4.7" LCD, DSMC2 RED Touch 7.0" LCD and DSMC2 RED EVF (OLED) with cable-free connection. RED Touch 9.0" LCD, RED Touch 7.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, DSMC2 Touch 7.0" Ultra-Brite LCD, BOMB EVF (OLED) and BOMB EVF (LCOS) compatible with DSMC2 LCD/EVF Adapter A or DSMC2 LCD/EVF Adapter D, and LCD/EVF cable.

  • Redcine-X Pro Delivery Formats

    4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
    2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
    1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF
    1080p 4:2:0, 720p 4:2:0 : H.264, .MP4

  • Video Editing Software Compatibility

    Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro

  • Weight

    7.30 lbs (3.31kg) (with Integrated Media Bay, PL Mount, and Gold Mount)

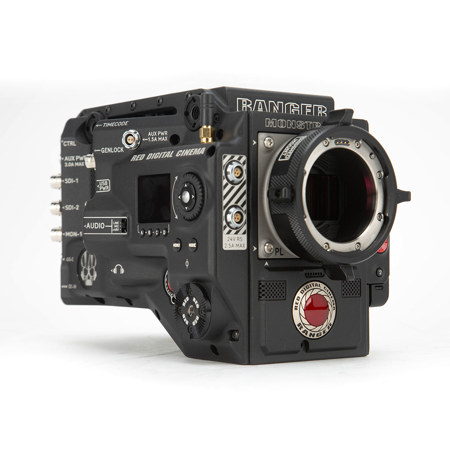

About RED RANGER Camera System with MONSTRO 8K VV Sensor, Gold Mount - SKU#1754328

RED's RANGER is an integrated Large Format 8K camera system offering an all-in-one system for production use. It features all of the benefits of the MONSTRO 8K VV sensor within a less complex platform for filmmakers. Features like integrated I/O's, 24V power out, shimmed PL Mount and improved thermal performance offer unmatched versatility as well as peace of mind in challenging shooting environments. The camera will ship complete with necessary rigging and support for improved set-up time.

RANGER is capable of handling the rigorous strain and robust power needs of high-end studio productions. Supporting wide input voltage (11.5V to 32V) and more independent SDI and AUX power outputs, as well as an integrated XLR audio input. The camera also boasts a larger fan for quieter and more efficient temperature management.

RED RANGER Camera System with MONSTRO 8K VV Sensor, Gold Mount - SKU#1754328 Features

  • Integrated Large Format 8K camera system offering an all-in-one system for production use
  • Features all of the benefits of the MONSTRO 8K VV sensor within a less complex platform for filmmakers
  • Supporting wide input voltage (11.5V to 32V) and more independent SDI and AUX power outputs

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • RED Digital Cinema RED RANGER Camera with MONSTRO 8K VV Sensor (Gold Mount)
  • Shimmed PL Mount
  • Production Top Handle
  • LCD/EVF Adapter D
  • RED RANGER AC Power Adapter
  • 3-Pin XLR-to-RED RANGER Power Cable (10')
  • SKB iSeries 1610-10 Case with Foam for RED RANGER
  • Item Note: Missing PL Mount Shim Pack; Hex and Torx Tools
