Used Canon ME20F-SH Multi-Purpose Super-Sensitive 35mm Full-Frame Camera with EOS Lens Mount (102 Hours)

SKU: US1756288

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Canon ME20F-SH Specifications

  • Image Sensor

    Sensor: 35mm Full Frame CMOS (16:9 extract)
    Total Pixels: Approx. 2.59M (2160 x 1200)
    Effective Pixels: Approx. 2.26M (2000 x 1128)
    Resolution: 1920 x 1080, 1280 x 720
    Pixel Size: 19um x 19um
    Min. Sub. Illum.: 0.0005 lux or less (at 75dB, F1.2, 29.97P, 50IRE)
    Color Filter Array: RGB Bayer

  • Lens System

    Canon EF Mount: Cinema Lock type
    Canon EF Lenses: EF, EF-S & Cinema (EF) (compatible lenses to be confirmed)

  • Input Terminals

    GEN LOCK: Black burst or Tri-level reference
    Microphone: f3.5mm stereo mini jack (plug-in power mic supported)
    Remote Control:
    Remote A: f2.5mm stereo mini jack (Canon protocol)
    Remote B: Circular 8-pin for RS-422 (Canon protocol)

  • Output Terminals - 3G/HD-SDI

    Terminal 1 (On screen display optional)
    Terminal 2 (Clean out only)
    Bit Depth: YCbCr422 10bits (effective bits: 8)

    Frame Rates:
    1920 x 1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
    1280 x 720: 59.94P/50P/29.97P/25P/23.98P

    *Cannot set framerate and output size separately by SDI and HDMI.

  • Output Terminals - HDMI

    Terminal 1 (On screen display optional)
    Bit Depth: RGB444, YCbCr422, YCbCr444 (effective bits: 8 for each format)

    Frame Rates:
    1920 x 1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
    1280 x 720: 59.94P/50P/29.97P/25P/23.98P

    *Cannot set framerate and output size separately by SDI and HDMI.
    **640x480: 59.94P & 768x576: 50P will be output when connected with a monitor that supports 480P and 576P inputs. Cannot be set from the menu and the on screen display will not show.

  • Exposure Modes

    Auto Exposure (AE): Iris, Gain, Shutter and ND filter operating together (Cannot set auto/manual separately)
    AE shift/AE response selectable
    AGC limit can be set from 36dB to Off/75dB (3-dB intervals)

    Manual: Iris: 1/2 stops (push auto iris can be set to an assign button)
    Gain: 0dB to 75dB @ 3-dB intervals (approx. ISO 4,560,000 equivalent at 75dB)
    Shutter: 1/3 to 1/2000 (1/4 stops)

  • Image Control

    Focus Control: Manual Focus (when used with RC-V100)
    ONE SHOT AF (can be set to an assign button)
    W/B: AWB (2,000K-15,000K), Daylight, Tungsten, Custom Set A, Custom Set B
    Optical Filters: ND filters: 1/8 & 1/64 Built-in (auto or motorized manual)
    IR cut filter: On/Off (motorized manual)
    Digital Teleconverter: 2x, 4x
    Custom Picture Setting: EOS Standard, Wide DR, Canon Log, Custom 1-6

  • Image Control - Other Functions

    Auto black balance, color bar, test tone (interlocking with color bar), assign buttons, peripheral illumination correction, focus limit, crop for EF-S Lens, scan reverse, flicker reduction, noise reduction, time display, hour meter

  • Power Input

    Terminals: XLR 4-pin or terminal block 2-pin jack
    Input: DC +11V ~ +17V
    Consumption: Power Consumption Approx. 12W (body only)

  • Operating Temperature

    Approx. 32-104 degrees F (0 - 40 degrees C)

  • Dimensions

    4.0 x 4.6 x 4.4" (102 x 116 x 113mm)

  • Weight

    Approx. 2.4 lbs (1,100g)

About Canon ME20F-SH Multi-Purpose Super-Sensitive 35mm Full-Frame Camera w/EOS Mount

Are you seeking a professional-grade camera that excels in extreme low-light conditions Look no further than the Canon ME20F-SH Multi-Purpose Camera, a high-quality and sophisticated tool designed for advanced imaging. This camera boasts a newly designed Canon 2.2MP high sensitivity CMOS sensor that captures crisp, clean high-definition full-color video, even when lighting is minimal.

The Canon ME20F-SH stands out with its full-frame 35mm CMOS sensor, offering an unparalleled sensitivity exceeding 4,000,000 ISO. This feature is a game-changer for professionals in television, cinema, nature and wildlife, documentary production, astronomy, military, security, and law enforcement, who require impeccable low-light performance.

Exceptional low-light capabilities are at the heart of the ME20F-SH, with its large 19 micrometers square photosites that ensure superior image quality with minimal illumination requirements. The camera's DIGIC DV 4 image processor enhances this further, providing a dynamic range of 12 stops and supporting Wide DR and Canon Log gamma profiles to preserve details in both shadows and highlights.

The ME20F-SH's rugged and modular design is as versatile as it is durable, allowing for easy customization with a variety of professional accessories. Whether you're shooting for broadcast or capturing wildlife in its natural habitat, this camera adapts to your needs.

Full HD video recording at up to 60fps is seamlessly achieved with the ME20F-SH, offering a selection of frame rates to match your project's requirements. The camera's professional connectivity options, including 3G/HD-SDI and HDMI outputs, facilitate seamless integration with external recorders and monitors, while Genlock input supports multi-camera setups for live broadcasts.

Remote operation is made possible with the Canon RC-V100 Remote Controller, providing flexibility in camera placement and operation. The camera's 3.5mm stereo mini-jack ensures that high-quality audio accompanies your visuals, thanks to the compatibility with external microphones.

The ME20F-SH is not only compatible with Canon's extensive line of EF mount lenses but also features a Canon locking EF mount for quick and secure lens changes. The camera's 12-pin lens terminal provides power connectivity with EF mount CINE-SERVO lenses or broadcast lenses via an adapter, with future firmware updates promising enhanced lens communication.

Infrared shooting is another innovative feature of the ME20F-SH, with a removable IR cut filter that allows for color reproduction in IR mode, enhancing object identification in extreme low-light scenarios. The built-in neutral density filters give operators control over light exposure, and the digital teleconverter extends the reach of lenses without the need for a swap.

Focusing is made effortless with One-Shot AF, and Push Auto Iris ensures optimal exposure with automatic aperture adjustments. These sophisticated features make the Canon ME20F-SH Multi-Purpose Camera an exceptional choice for professionals demanding high-quality, versatile imaging solutions in challenging lighting conditions.

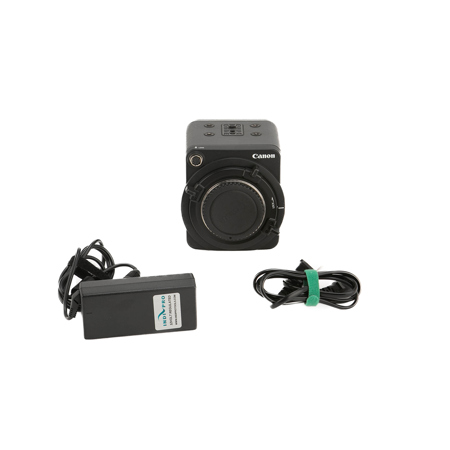

What's in the box:

  • Canon ME20F-SH
  • IndiPro 4 Pin XLR Power Adapter
  • Original Box
  • Firmware: V1.0.3.1.00
