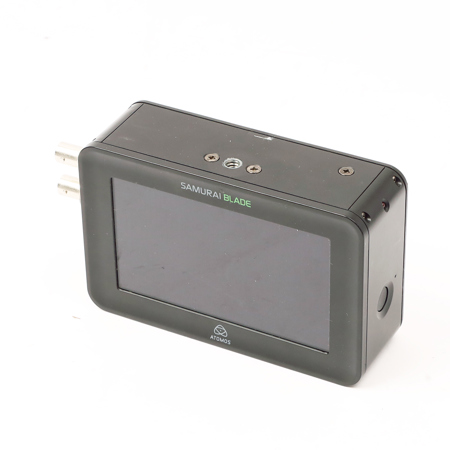

About Atomos Samurai Blade 5" Hi-Res SDI Monitor & Recorder - SKU#1761635
The Atomos Samurai Blade 5" Hi-Res SDI Monitor & Recorder features a 1280 x 720 resolution monitoring display, substantially better than that of the original Samurai's. Like the original, Blade can record up to 1080/30p/60i resolution directly from your camera's sensor to an HDD or SSD in Apple's ProRes or Avid's DNxHD edit-ready codecs. Color precision records at a high 10-bit, even from an 8-bit sensor and color sampling at 4:2:2. Recording an 8-bit signal in 10-bit won't increase the quality of the signal but will let you work with the signal in post-production as if it's 10-bit, meaning you can add effects and not see jagged lines and other artifacts. Being able to record direct from the sensor lets you bypass your camera's compression and instead have the first compression be in an edit-ready codec. Generally, the less compressions, the less image degradation.
Blade has an SDI input for ingesting from a camera and an SDI loop-output for simultaneously looping out the camera signal to a large SDI monitor up to 300 ft away. You can also ingest by HDMI through an optional Atomos SDI to HDMI converter. Blade supports all cameras for monitoring, even 4K and 5K cameras like RED's Epic and ARRI's Alexa and can successfully record 1080/30p/60i from most cameras.
Blade's display is capacitive touchscreen, meaning intuitive to human touch but unresponsive to the touch of an object, such as a pen and therefore safe against accidental contact with objects. The operating system is AtomOS 5.0, which features a comprehensive set of advanced focus and exposure tools and a cut and tag editing tool that will let you delete undesired shots and tag the remaining ones as good for editing later on your main editing system. Cutting and tagging directly on your Blade means you'll be able to do so while on the road and thus arrive at your studio with a portion of your editing job done. Additional to monitoring and recording on Blade, you can also play back footage or connect to a Mac or PC for playback on QuickTime.
Blade accepts 2.5" HDDs/SSDs. These are sold separately, but you get a docking station that offloads these drives to your computer via a USB or FireWire cable.
Atomos Samurai Blade 5" Hi-Res SDI Monitor & Recorder - SKU#1761635 Features
- Records from the Sensor: Samurai Blade records directly from the sensor to 10-bit, 4:2:2 Apple ProRes or Avid DNxHD, bypassing a major round of compression and data loss
- AtomOS 5.0 Capacitive Touchscreen OS: Blade's operating system, AtomOS, manages recording, playback, monitoring and simple cut and tag editing via a capacitive touchscreen. New to AtomOS 5.0 is Alpha Channel, Transparency support, full Waveform RGB and Luma Parade and Vectorscope with zoom
- Cut and Tag: AtomOS 5.0 lets you rough cut your footage, tag it as Favorite or Reject and then save it as a project to be finished and polished in the studio. You can cut and tag short and long clips with transport controls and finite frame-by-frame accurate stepping
- Synced REC Trigger and Timecode: Blade provides frame accurate timecode and start stop triggers over both SDI and HDMI (via HDMI converter) from almost all cameras, including Canon, Sony, Panasonic, Nikon, JVC, RED and ARRI
- 10-Bit 4:2:2 Quality: Blade bypasses 8-bit and records 10-bit color registries for better compatibility with 12-bit or higher graphics inserted on your NLE timeline
- ProRes and DNxHD Encoding & Playback: Blade encodes in your choice of Apple's ProRes and Avid's DNxHD codec and can also play back any ProRes or DNxHD file from any system, recorder or edit suite. You can take advantage of this playback capacity to take rushes on the road
- HDD or SSD Storage: Blade stores to 2.5" HDDs or SSDs. A 1TB HDD can record 48 hours of Avid 36 and a 500GB HDD can affordably store 5 hours of Apple's ProRes or Avid's DNxHD. And SSDs are resistant to and ideal for rough, vibration-sensitive shoots, such as on a race-track
- File Recovery: In case you accidently pull the power or remove the storage drive while recording, the operating system will detect the disruption and will reconstruct you file to within 2 frames
- Audio Monitoring: All audio, even analog, is locked frame accurately to every video frame, never drifting or losing sync. If digital audio is out of sync from the camera, you can even adjust sync on the fly by advancing or delaying incoming audio
- Construction: Blade is built with aircraft grade aluminum and features locking mechanisms for each removable part
- Low Power Consumption: Blade consumes only 6W of power and can be powered by the included NP series batteries in a dual continuous battery system or by AC adapter. The batteries lock into place so they don't accidentally remove
