Questions & Answers

Reviews about this item

Review Summary

2020-09-20T20:00:00

Rated 5 out of 5

Excellent sound quality. Easy to pair with phone!!

Holloway

2020-07-02T20:00:00

Rated 5 out of 5

Great sound

I bought this speaker for small gatherings, parties, and to have some pumping music in my shop. It is perfect for what I’m doing! I recently let a family member use it for a wedding reception and it filled a large room with sound and had a full sound across the spectrum. Very pleased!

Rbnat

2020-01-19T19:00:00

Rated 2 out of 5

Shortcomings and very misleading discription

Do not think this should be advertised as a 6 channel mixer. only channels 1 and 2 are quality inputs, 3 and 4 are weak and no controls except volume, very weak signal as well. Output is RCA which I would expect from an off brand, not JBL. Should have been 1/4" or XLR. Bought for the 6 channel feature but very dissapointed, will be returning.

pimasix

2019-11-21T19:00:00

Rated 4 out of 5

Great bang for the buck

I originally purchased one for ceremonies but got 2 for small events I DJ, clear sound nice punch on the low end. I was hoping JBL would come out with a louder option. But I have had no issues. Great design with the columns stored behind the woofer.

247EntDJ

2019-10-13T20:00:00

Rated 1 out of 5

Worst purchase I've ever made in my DJ Career

I first purchased this speaker on 9/15/18. On the night of 9/15/18, the same day I bought it, the speaker gave me trouble at a paid gig when we couldn’t hear the music come out of the speaker. Thankfully I was DJ’ing a close friend’s 50th birthday party, and I told them I would drive home (10 miles drive, 20 minutes each way) to get my two reliable (but heavy) EV speakers. Halfway en route from party to home, I got a call from the party that they got speaker to work and to return to the party. Turns out the speakers weren’t aligned correctly. I began DJ’ing half an hour later than I was hired. I bought this speaker to use at small events. It gave me trouble again when it would not play even though the XLR cables were connected correctly from my mixer. I turned the JBL speaker off and then back on, and it then started playing. I was hired to DJ a small outdoor wedding on September 29, 2019 for which I was relying on this speaker for the outdoor wedding ceremony. The night before the wedding, I connected the speaker to my Pioneer DDJ-SSR mixer with the two XLR cables. No sounds. I did trouble-shooting, replacing XLR cables in case it was the cables, nothing. I connected my laptop to the JBL with an aux cord, nothing. No sound at all. We had to use a small portable bluetooth speaker for the wedding ceremony, which was barely audible. The JBL FAILED ME COMPLETELY. I am not happy with this product at all and should have purchased a Bose as advised by friends in the DJ business, but was convinced at Guitar Center that the JBL would be a better fit for me. Unfortunately it is the most unreliable product I’ve ever purchased in my DJ career, not to mention super expensive. I don’t mind paying money for reliable products, but wasting money on garbage is painful. Thankfully I purchased the extended warranty/insurance from Guitar Center. Unfortunately, Guitar Center makes you ship the speaker via UPS, a huge inconvenience since you have to find a way to wrap up the speaker and box it yourself, since UPS charges $60 to do it. Had I known what an inconvenience and nightmare this purchase would cause me, I would have never in a million years purchased it.

DJ M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

JBL EON ONE P.A. System Specifications

  • System: Type

    Portable line array with powered mixer

  • System: Maximum SPL

    118 dB peak system output (pink noise)

  • System: Frequency Range

    37.5 Hz to 18.5 kHz

  • System: Frequency Response

    45 Hz to 18 kHz

  • Amplifier: Design

    Class D

  • Amplifier: System Power

    System Power Rating
    LF: 250W
    HF: 130W

  • Mixer: Input Connectors

    6 inputs (2 Mono Mic/Line, 2x Stereo)

  • Mixer: Channels

    Channels 3-4: 2x 1/4"/ 6.35 mm balanced TRS jacks (stereo) and 2x RCA jacks (stereo)
    Channels 5-6: Stereo 1/8" / 3.5 mm jack

  • Mixer: Input Impedance

    Channels 1-2 Combo XLR: 40 kOhms balanced
    Channels 1-2 Combo TRS: 40 kOhms balanced
    Channels 3-4 TRS: 20 kOhms balanced
    Channels 3-4 RCA: 5 kOhms unbalanced
    Channels 5-6 3.5 mm: 10 kOhms unbalanced

  • Mixer: Bluetooth

    Channels 5-6: Bluetooth audio streaming

  • Mixer: Output Connectors

    Monitor Outputs: 2x RCA jacks (stereo)

  • Mixer: Signal Indicator

    Limit: Yellow LED indicates limiter active condition

  • Mixer: EQ Section

    Channels 1 & 2: Individual bass and treble controls, center detent, +/-12 dB cut and boost

  • Mixer: Limiter

    On-board DSP limiting and tuning

  • Speaker: LF Driver

    LF: 1x 10" / 254 mm woofer

  • Speaker: HF Driver

    HF: 6x 2" drivers

  • Speaker: Coverage Pattern

    100 x 50 deg. nominal

  • Enclosure

    Polypropylene

  • Grille Material

    Powder coated perforated steel

  • Power

    Switchable Power Supply: 100-120 VAC, 220-240 VAC 50/60 Hz

  • Dimensions (H x W x D)

    23.3 x 14.5 x 17" / 59.18 x 36.83 x 43.18cm

  • Weight

    40.8 lbs / 18.51 kg

About JBL EON ONE All-In-One Linear Array P.A. System - SKU#1763513

FEATURED REVIEWS

By Holloway

Excellent sound quality. Easy to pair with phone!!

Great sound

By Rbnat

I bought this speaker for small gatherings, parties, and to have some pumping music in my shop. It is perfect for what I’m doing! I recently let a family member use it for a wedding reception and it filled a large room with sound and had a full sound across the spectrum. Very pleased!

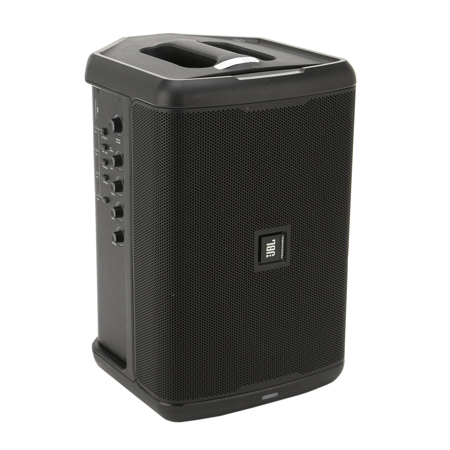

The EON ONE linear-array P.A. system brings legendary JBL Professional audio to your next performance, conference or meeting. Your entire audience will experience powerful, accurate sound, thanks to the patent-pending speaker configuration and unobstructed 10" bass reflex subwoofer. The built-in 6-channel mixer with EQ makes it easy get great sound instantly-simply connect your microphones and instruments or stream Bluetooth audio from your mobile device. With a true all-in-one design that you can carry with one hand, EON ONE is effortless to set up and transport.

• Proven JBL Professional sound quality
• Patent-pending linear-array configuration (six 2" HF drivers) offers exceptional sound coverage
• Unobstructed 10" bass-reflex subwoofer for accurate low-frequency response
• Bluetooth connectivity for streaming audio from your mobile device
• Powerful 6-channel mixer with easy-to-use controls
• 380 watts of power, 118 dB max SPL for clear, detailed audio
• Carry the entire system with one hand, set up in seconds
• Perfect for live music, conferences, events and more
• 3 listening positions for different environments

Legendary JBL Sound
Cutting-edge directivity technology delivers clear, detailed audio to your whole audience

Extended Bass
Unobstructed 10" woofer for accurate low-frequency response

Bluetooth
Built-in 6-channel mixer with Bluetooth audio

All-In-One Design
Convenient one-hand carry

Powerful Bass You Can Hear and Feel
An unobstructed 10" bass-reflex subwoofer-the largest in its class-delivers clear, well-defined low-frequency response for your whole audience.

Crystal-Clear JBL Sound
JBL Directivity Control Geometry optimizes the spacing and angle of each driver to ensure extraordinary sound quality and consistent directionality.

Extra-Wide Coverage
Every member of your audience will experience the same great sound-no matter where they're standing.

Bluetooth Streaming Audio
Play pre-recorded backing tracks for singer-songwriter gigs, stream your favorite playlist to set the mood for any party or play audio during conferences and events.

Compact, All-in-one System
The spacers and high-frequency unit conveniently pack into the base-making it easy to set up or break down in seconds.

One-Hand Carry
The EON ONE is the only truly all-in-one linear-array P.A. that you can carry with just one hand. No shoulder bags, no second trips to the car.

Performance
JBL Professional is the world's leading manufacturer of loudspeaker systems, using custom designed and built drivers for optimal performance. The JBL EON ONE is the best-performing loudspeaker in its class-owing to a linear array of speakers which are crossed over at 200 Hz to a powerful 10" subwoofer. The high-frequency unit uses JBL's patent-pending Directivity Control Geometry. This geometry optimizes the spacing and angles of the 6 high-frequency drivers to create extraordinarily even front-to-back coverage, ensuring that everyone in the listening area is hearing the sound accurately. The 10" woofer is unobstructed and takes advantage of JBL's slip stream port tubes for enhanced bass response with minimum port noise and distortion.

Portability
The JBL EON ONE is an excellent sounding all-in-one PA system that can be easily carried with one hand. All the elements of the JBL EON ONE can be stored and transported in the unit itself, eliminating the need for additional bags. Weighing only 39 lbs., the EON ONE is light enough to be carried in one hand and can be easily lifted into cars, carried up stairs and stashed neatly away for storage. With the optional EON ONE Bag, users can transport their EON ONE on wheels while protecting it from bumps, scratches and the elements.

Flexibility
The EON ONE features a 6-channel mixer for a variety of applications. Channels 1 & 2 can accept either a 1/4" instrument cable or an XLR cable and have volume, reverb, treble and bass control. Channels 3 & 4 accept either a stereo pair of 1/4 inch TRS plugs or stereo RCA cables. Channels 5 & 6 accept a stereo 3.5mm input for mobile devices like phones tablets or Bluetooth streaming audio. The EON ONE also has an RCA output channel, which can be used to daisy chain multiple speakers or to send signal to a subwoofer, recording device or outboard mixer.

Applications
• PA System for Live Performances
• Conferences
• Speech
• Gatherings and Parties

Try It For Yourself
Pair your Bluetooth device with the EON ONE and hear it for yourself. Pay special attention to the bass response and move throughout the room to see how well the Directivity Control Geometry works to keep the coverage pattern clean and even. If you can, take the speaker apart and put the individual elements in the back. Pick the speaker up and note the lightweight, comfortable design and ease of transportation.

What's in the box:

  • JBL EON ONE Base
  • Power Cable
  • Original Box
  • Item Note: MissingColumn Speaker Array; 2x Listening Height Spacers
