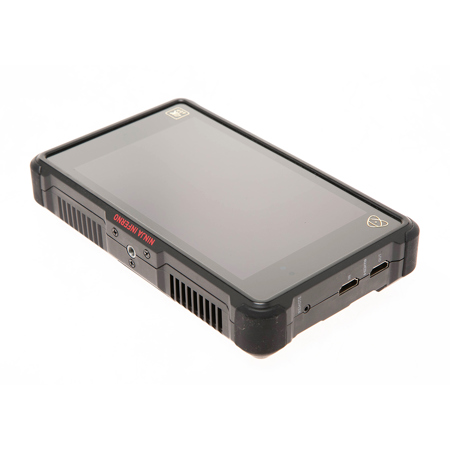

Used Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor

SKU: US1769907

This item is no longer available.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Atomos Shogun Inferno Specifications

  • Touchscreen

    Yes

  • Screen

    Size: 7.1"
    Resolution: 1920 x 1200
    PPI: 325
    Aspect ratio: 16:9 native
    Color Gamut: REC709 HDTV

  • Screen Features

    Look up table (LUT) support: 3D LUT (.cube le format)
    Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3 Technology: SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

  • AtomHDR

    Yes

  • Supported Log Formats

    Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm

  • Supported Gamuts

    Sony SGamut / SGamut3 / SGamut3.cine
    Canon Cinema / BT2020 / DCI P3 / DCI P3+
    Panasonic V Gamut
    Arri Alexa Wide Gamut

  • Bit Depth

    10-bit (8+2 FRC)

  • Brightness

    1500nit (+/- 10%)

  • PQ In/Out

    Yes

  • Video Output (Play Out)

    HDMI: 1 x HDMI (2.0)
    SDI: 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G
    Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

  • Loop Out Formats HDMI

    720p 50/60, 1080i 50/60
    1080p 24/25/30/50/60/100/120/200/240
    2160p 24/25/30/50/60

  • Loop Out Formats SDI

    720p 50/60, 1080i 50/60
    1080pSF 24/25/30
    1080p 24/25/30/50/60/100/120/200/240
    2160p 24/25/30/50/60

  • Video Signal Conversion HDMI to SDI

    720p 50/60, 1080i 50/60
    1080p 24/25/30/50/60/100/120/200/240
    2160p 24/25/30/50/60

  • Video Signal Conversion SDI to HDMI

    720p 50/60, 1080i 50/60
    1080p 24/25/30/50/60/100/120/200/240
    2160p 24/25/30/50/60

  • Raw to CDNG Record

    Codecs: Cinema DNG for supported cameras (Sony FS5/FS7/ FS700, Canon C300MKII, C500, Panasonic Varicam RAW)

    Frame rates: 4K DCI / 4K UHD; 24/25/30p 2K / 1080p; 24/SF24/25/SF25/30/SF30/50/60/100/120p

  • Raw to ProRes / DNxHR

    Codecs: Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB
    Frame rates: 4K DCI / 4K UHD; 24/25/30/50/60p 2K / 1080p; 24/SF24/25/SF25/30/ SF30/50/60/100/120/200/240p

  • Video to ProRes / DNxHR

    Codecs Apple: ProRes HQ, 422, LT
    AVID DNxHR HQX. HQ, SQ, LB

    Frame rates: 4K DCI / 4K UHD; 24/25/30/50/60p
    2K / 1080p; 24/SF24/25/SF25/30/
    SF30/50/60/100/120/200/240p
    1080i; 50/60i
    720p; 50/60p

  • Pulldown Removal

    24/25/30pSF > 24/25/30p (2:2 pulldown)
    60i > 24p (3:2 pulldown)

  • 4K UHD Downscale for HD Monitoring

    Yes - Loop-out and playback (Not available in RAW)

  • Audio In/Out (48kHz PCM Audio)

    HDMI: 2 or 8ch 24-bit, camera dependent
    SDI: 12ch 48kHz 24-bit

    Audio:
    2ch balanced XLR analog in/out
    Dynamic range >90dB
    Max signal level +24dBu
    Max analog gain +52dB
    48V Phantom Power for Mic

  • Remote Start/Stop

    HDMI: Auto HDMI Trigger
    Supported Protocols - Canon, Sony, Atomos Open Standard
    SDI: SDI trigger camera selectable
    Other LANC control - Slave

  • Playback

    Playlist: Yes Genlock / LTC: Yes / Yes

  • Playback Features

    Pre-roll record: Yes (HD 8s, 4K 2s)
    Custom timelapse: Yes
    Meta data tagging: Yes (10 tags available)

  • Supported Media

    For 4K / HD Playback (50/60/120p) : SSD 2.5", HDD (7,200 up to 1080p60)
    For HD playback: SSD 2.5", HDD (5,400 up to 1080p30)

  • Master Caddy Case

    Master Caddy II (included)
    75mm x 105mm x 12mm

  • Master Caddy Dock

    2.5" SATA to USB 2.0/3.0

  • Supported applications

    Supported Applications FCPX/FCP7+ / Media Composer
    5.0+ / Premiere 5.5+
    EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /
    Autodesk Smoke 2015

  • XML Support

    FCPX XML native, FCP7 supported with conversion (Adobe compatible)

  • Construction

    High quality lightweight ABS Polycarbonate for durability & portability
    Built-in armor protection

  • Operating Power

    10 - 27W

  • Compatible Batteries

    NP series and supporting accessories

  • Input Voltage (Battery)

    6.2V to 16.8V

  • Battery Time (Based on 7.4V)

    5200mAh - up to 1.5hrs (monitor & record 4K 30p)
    7800mAh - up to 2.2hrs (monitor & record 4K 30p)

  • DC In

    1 x DC in (6.2 - 16.8V)

  • Dimensions (WxHxD)

    8.4 x 5 x 1.8" (214 x 127 x 45mm)

  • Weight

    2.5 lbs (1.2kg) with battery

Related Articles & Videos

Atomos Announces Firmware Update for Ninja and Shogun Flame

Atomos Announces Firmware Update for Ninja and Shogun Flame

Atomos has recently announced firmware updates for their groundbreaking Flame series of monitors. 7.11 is now available for download on the Atomos website, which will even further improve the HDR functions of both the Ninja and Shogun Flame. Although these updat...
Read more

About Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor #1769907

Shoot What You See

AtomHDR image processing lets you shoot with the high brightness range of your camera’s Log profile while maintaining vibrant true-to-life colors. Conventional monitors lack this capability, displaying the brightness detail of Log but with a washed out image that makes judging exposure difficult. Be at the forefront of the HDR revolution by having a field monitor capable of resolving HDR in the field as you see it in Post Production and record the original Log image direct from the sensor for HDR grading in post production.

Shoot What You See

1500NIT 10-BIT

The 10-bit panel resolves more colors (1.07 billion colors compared to 16.7 million for standard 8-bit panels) to ensure smooth color transitions in both HDR and SDR (standard dynamic range) shooting. The 1500nit panel brings HDR to life, accentuating high contrast scenes. While for regular SDR scenes, use the brightness slider to take advantage of the 1500nit screen for hood-free outdoor monitoring.

1500NIT 10-BIT

PQ & HLG PLAYOUT & INPUT

The AtomHDR engine not only lets you set perfect exposure in the field, you can take a HDR output in either PQ or HLG* standard to compatible HDR screens or accept HDR input from your NLE for mobile grading or for HDR connection from cameras with a PQ or HLG* output

* Available in future firmware updates

PQ & HLG PLAYOUT & INPUT
4K 60P & HD 240P RECORDING

4K 60P & HD 240P RECORDING

Shogun Inferno combines high resolution recording, high frame rate recording and playback. Record Video from both HDMI and SDI cameras direct from the sensor to 4:2:2 10-bit ProRes or DNxHR up to an amazing 4K 60p or HD 240p*. Record Raw over SDI up to 4K 30p either directly to CDNG or record to ProRes or DNxHR.

 LOG & RAW OVER QUADLINK SDI

LOG & RAW OVER QUADLINK SDI

The QuadLink SDI connections offer the widest camera compatibility with 1.5G/3G/6G/12G SDI inputs and a single 12G SDI output. Recording RAW* from Arri, Sony, Canon and Panasonic cameras provides 4K functionality not available in some cameras whilst also offers a far more affordable solution in terms of media costs.

SIMPLE OS, SOPHISTICATED SHOTS

SIMPLE OS, SOPHISTICATED SHOTS

Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (Focus peaking, 2:1/1:1 zoom, Zebra, False Color, Frame guides, SMPTE Safe Area, Waveform, RGB parade, vectorscope) along with a flexible 3D LUT implementation (use built-in LOG to Rec.709 Video or upload .cube files) and options for anamorphic de-squeeze monitoring.

CONTINUOUS POWER & SUPER FAST CHARGING

CONTINUOUS POWER & SUPER FAST CHARGING

Inferno features our patented continuous power system - a hot swappable dual battery system that automatically swaps to the second battery when power is low. To support the dual battery system we include a blazingly fast battery charger, two 4-cell batteries and a D-Tap to DC coiled cable to ensure continuous power in the field is all but assured.

MONITOR & RECORD XLR AUDIO

The Shogun Inferno has multiple audio options replacing the need for a separate audio recorder. Monitor up to 8ch of embedded HDMI audio, up to 12ch of SDI audio or use the included XLR breakout cable to connect with external microphones for balanced analogue audio with 48V phantom power.

MONITOR & RECORD XLR AUDIO

ADVANCED RECORDING CAPABILITY

Outside of RAW and high frame rate 4:2:2 Apple ProRes / AVID DNxHR recording, the Shogun Inferno adds recording functionality not found in other recorders. Trigger start/stop recording over HDMI or SDI popular cameras, convert interlace to progressive signals on the fly with built-in 3:2 and 2:2 pulldown or use features like Pre-roll (continuous cache recording) and Time lapse to maximise your creativity.

BATTLE-READY!

Our built-in armor enhances protection & airflow whilst the raft of accessories (2 x NP series 4-cell batteries, fast battery charger, USB3 docking station, 2 x input XLR breakout cable, control cable, DC to D-Tap cable, 5 x Master Caddy cases, DC adapter & HDR sun hood) and the premium HPRC flight case ensures you're ready to hit the field immediately.

What's in the box:

  • Shogun Inferno
  • 1x Caddy
  • International Adapters
  • Travel Case
  • Firmware: V8.5
  • Item Note: Missing XLR Breakout Cable
