Panasonic AJ-HD1400 Compact DVCPRO HD VTR - SKU#1770092

Picture does not represent the actual item
See what's in the box

See all Panasonic items

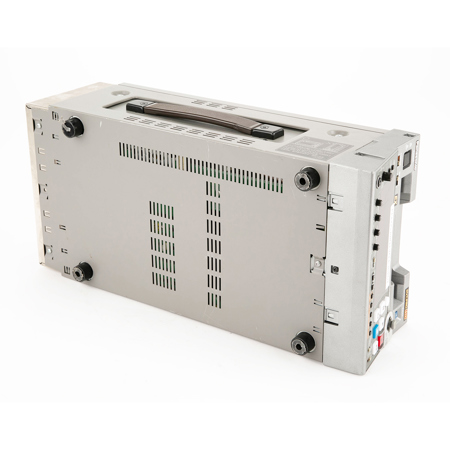

Used Panasonic AJ-HD1400 Compact DVCPRO HD VTR

SKU: US1770092

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Panasonic AJ-HD1400 Specifications

  • Recording Format

    DVCPRO HD-LP

  • Recording Video Signal

    1080i/59.94Hz, 1080i/50Hz, 720p/59.94Hz, 720p/50Hz and 720p/60Hz (Varicam) switchable

  • Recording Audio Signal

    48 kHz, 16 bit, 8 CH

  • Recording Track

    Video: 1080 i/ 720 p
    Audio: 8 channels
    TC: Subcode area
    Cue: 1
    longitudinal track
    CTL: 1 longitudinal track

  • Tape Speed

    67.64 mm/s

  • Rec/Play Time

    Max. 64 minutes

  • Tape

    1/4" metal particle

  • FF/REW Time

    Approximately 90 seconds with AJ-HP64ELG

  • Video: Sampling Frequency

    Y: 74.25/1.001 MHz, Pb/Pr: 37.125/1.001 MHz

  • Video: Quantization

    8 bits

  • Video: Compression Method

    DCT + Adaptive quantization

  • Video: Compression Ratio

    1/6.7

  • Video: Bit Rate

    100 Mbps

  • Audio: Channel

    8 channels

  • Audio: Sampling Frequency

    48 kHz

  • Audio: Quantization

    16 bits

  • Audio: Frequency Response

    20 Hz to 20 kHz, +/-1.0 dB (reference level)

  • Audio: Dynamic Range

    More than 85 dB (1kHz, emphassis off, "A" weighted)

  • Audio: Distortion

    within 0.1 % (1kHz, emphassis off, reference level)

  • Audio: Cross Talk

    Less than -80 dB (1 kHz, between any 2 ch)

  • Audio: Headroom

    20 dB (AJ-HD1400P) 18 dB (AJ-HD1400E)

  • Video Input/Output

    HD SDI In:
    BNC x 1
    SMPTE 292M/296M/299M
    HD Reference In:
    BNC x 2 (loop-through), 75Ohms auto (tri level sync)
    SD (B.B.) auto switching
    SDI Out: BNC x 2, superimpose on/off, SMPTE 292M/296M/299M
    SD SDI Out:
    BNC x 1, superimpose on/off, SMPTE 259M-C/272M-AITU-R BT.656-4
    Component Out: BNC x 3 (Y/Pb/Pr), superimpose on/off
    Composite Out: BNC x 2 (Y connector), superimpose on/off (VIDEO 2)

  • Audio Input/Output

    Analog In:
    XLR x 2 (CH1/CH2), +4/0/-20/-60 dBu switchable, 600 Ohms/high-impedance switchable
    HD SDI In:
    BNC x 1, (CH1 to CH8)
    SMPTE 299M embedded audio
    Analog Out: XLR x 2 (CH1/CH2), +4/0/-20 dBu switchable, low-impedance
    HD SDI Out:
    BNC x 2, (CH1 to CH8)
    SMPTE 299M embedded audio
    SD SDI Out: BNC x 1, SMPTE 272M-A//ITU-R BT.656-4
    Monitor Out:
    XLR x 2, +4/0/-20 dBu switchable, low-impedance
    Phono x 2, -8dBV
    Phones Out: M3, variable level control, 8Ohms

  • Other Connector

    DVCPRO/DV In/Out:
    6-pin x 1, transfer rate selectable; 400/200/100 Mbps
    IEEE 1394-1995, IEC61883-Part 1, Part 2
    In: BNC x 1, 0.5 to 8.0 Vp-p, 10kOhms
    Timecode Out: BNC x 1, low-impedance, 2.0 +/-0.5 Vp-p
    Remote In: D-sub 9 pin, RS-422A Interface
    Encoder Remote: D-sub 15 pin
    In: 4 pin x 1, DC12V
    Out: DC12V, 250mA, for AJ-A95

  • Video Signal Adjustment Range-1

    Component style:
    HD SDI Y Out Gain: - infinity to + 3 dB
    HD SDI Pb Out Gain: - infinity to + 3 dB
    HD SDI Pr Out Gain: - infinity to + 3 dB
    HD SDI Y Out Black Level: ±10%
    HD Component Y Out Gain: - infinity to + 3 dB
    HD Component Pb Out Gain: - infinity to + 3 dB
    HD Component Pr Out Gain: - infinity to + 3 dB
    Component Y Out Black Level: ±10%
    SD SDI Y Out Gain: -infinity to + 3 dB
    SD SDI Pb Out
    Gain: -infinity to + 3 dB
    SD SDI Pr Out Gain: -infinity to + 3 dB

  • Video Signal Adjustment Range-2

    SD SDI Y Out Black Level: +/-10%
    Composite Out Gain: - infinity to + 3 dB
    Composite Out Chroma Gain: - infinity to + 3 dB
    Composite Hue/Chroma Phase: +/-30deg.
    Composite Y Out Black Level: +/-10%
    Composite style:
    HD SDI
    Video Out Gain: - infinity to + 6 dB
    HD SDI Chroma Out Gain: - infinity to + 3 dB
    HD SDI Chroma Phase: +/-30deg.
    HD SDI Y Black Level: +/-10%

  • Video Signal Adjustment Range-3

    SD SDI Video Out Gain: - infinity to + 6 dB
    SD SDI Chroma Out Gain: - infinity to + 3 dBv SDI Chroma Phase: +/-30deg.
    SD SDI Y Out Black Level: +/-10%
    Composite Video Out Gain: - infinity to + 6 dB
    Chroma Out Gain: - infinity to + 3 dB
    Composite Chroma Phase: +/-30deg.
    Y Out Set Up: +/-10%
    System Phase:
    HD SDI Out/HD Component Out:
    1080_59.94, 60i: +/-0.5H (+/-1100 sample/13.5 ns step)

  • Video Signal Adjustment Range-4

    1080_50i: +/-0.5H (+/-1320 sample/13.5 ns step)
    1080_23.98,24psf: +/-0.5H (+/-1375 sample/13.5 ns step)
    720_59, 60p: +/-0.5H (+/-825 sample/13.5 ns step)
    720_50p: +/-0.5H (+/-990 sample/13.5 ns step)
    SD SDI Out:
    NTSC: +/-0.5H (+/-858 sample/37 ns step)
    PAL: +/-0.5H (+/-864 sample/37 ns step)
    Composite Out:
    NTSC: +/-0.5H (+/-858 sample/37 ns step)
    PAL: +/-0.5H (+/-864 sample/37 ns step)
    Out SC: more than +/-180deg.

  • Power Supply

    AC (100-240) V +/-10%, 50 to 60 Hz

  • Power Consumption

    AC: 85 W, DC: 64 W

  • Operating Temperature

    41 deg.F to 104 deg.F (5 deg.C to 40 deg.C)

  • Operating Humidity

    10 % to 85 % (non dew)

  • Dimensions (W x H x D)

    8.5 x 5.2 x 17.4" (21.4 x 13.2 x 44.2 cm)

  • Weight

    18.74 lbs (8.5 kg)

About Panasonic AJ-HD1400 Compact DVCPRO HD VTR - SKU#1770092

The Panasonic AJ-HD1400 Compact DVCPRO HD VTR records at 100 Mbps with 4:2:2 color sampling and intra-frame compression in multiple U.S. and worldwide HD/SD formats including 1080/59.94, 1080/50i, 720/60p, 720/59.94p and 720/50p. Designed with comprehensive editing features, this AC/DC-powered recorder features HD SDI digital input/output and IEEE 1394 input/output, a 9-pin remote interface for use in assemble/insert editing and a built-in up/down converter. This lightweight VTR offers a handle for on-the-go use and its compact design makes it a great space-saver for desktop use and in-studio editing.

Panasonic AJ-HD1400 Compact DVCPRO HD VTR - SKU#1770092 Features

  • Multi-format HD/SD system records in 1080/59.94p, 1080/50i, 720/60p, 720/59.94p and 720/50p
  • Converts from a VariCam 50p recording (over 60p) source with native 720p/50 or PAL output
  • IEEE 1394 input/output interface transfers DVCPRO HD native video to NLE systems without image quality degradation
  • HD-SDI input/output and SDI output for applications such as line recording and in-studio production
  • Built-in up/down/cross converter for playing back DVCPRO 50/DVCPRO/DV/DVCAM tapes and for outputting a converted HD signal
  • Supports assemble/insert editing with 9-pin remote control and IEEE 1394
  • Supports VANC metadata (UMID, CC, etc.)
  • Multi-format HD/SD system records in 1080/59.94p, 1080/50i, 720/60p, 720/59.94p and 720/50p Supports Encoder Remote (component style/composite style)
  • 64 minutes of recording time on an AJ-P126L cassette. Accepts DVCPRO (L/M) and Mini-DV cassettes (AJ-CS455 cassette adaptor required for Mini-DV cassette playback.)
  • Compact and lightweight
  • AC or DC operation
  • High-quality 16-bit digital audio with up to eight embedded channels

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic AJ-HD1400 Compact DVCPRO HD VTR
  • Power Supply Cord
