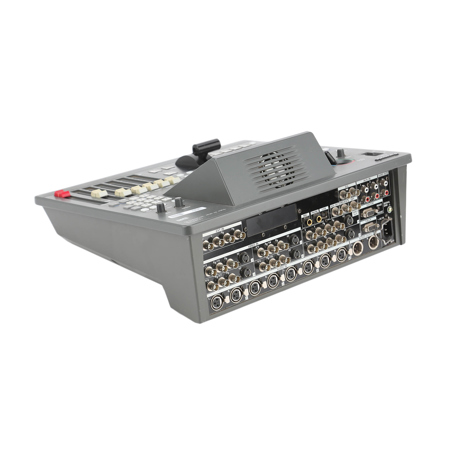

Used Panasonic AG-MX70 Digital Audio-Video Mixer
SKU: US1772112 MFR: AGMX70
$152.00
INCLUDES FREE WARRANTY
- This used item comes with a free 180-day warranty. ?
Need help? Ask our experts.
Overview
Compare
Specs
Q&A
About Panasonic AG-MX70 Digital Audio-Video Mixer
With the AG-MX70 digital A/V mixer, Panasonic has integrated a 2-BUS, 8-input video switcher, multi-functional digital video effects unit with high-end performance, and an audio mixer into a single compact unit. The AG-MX70 provides broadcast-grade 4:2:2:4 digital component picture quality. It features more than 600 effect patterns and a 30-frame graphics buffer for roll, crawl, and logo animation using title files downloaded from a PC. A large LCD panel with a matrix menu helps assure quick, easy operation. Offering optional 3D video effects and SDI interface, this A/V mixer is ready for full-fledged digital post-production. The versatile AG-MX70 is right at home when connected to 25 Mbps DVCPRO VTRs in a digital editing system, or when used as a switcher either in the studio or at live events.
Eight video inputs, each with tally output, and M/E and DSK preview prepare the AG-MX70 for use as a switcher with multi-camera feeds for live studio or event applications. Adding the optional SDI interface also enables high-quality digital input. Titles and graphics created on a PC can be downloading from MX-Navi application, and easily superimposed for use in live production programming.
Standard-equipped RS-422A and RS-232C remote terminals and a GPI terminal allow the AG-MX70 to team up with the AG-A850 or other-brand editing controller, for A/B roll editing. With the SDI interface option on-board, a high-quality, fully digital editing system can also be configured with a DVCPRO VTR. The MX-Navi title insertion program brings the quality of program production to a level approaching many high-end systems.
Panasonic AG-MX70 Digital Audio-Video Mixer Features
- Designed for live events and full-fledged digital post-production
- Compact unit with a 2-BUS, 8-input video switcher, high-performance, multi-functional digital video effects unit and versatile audio mixer.
- 4:2:2:4 digital component picture quality with Dynamic RoundingTM for broadcast-quality video and 16:9 wide and 4:3 aspect ratio capability
- Creates more than 600 2D effects patterns including transitions, key patterns, mosaic, paint, trail and multi-images
- Optional AG-VE70P 3-D effects board delivers over 1600 effects including page-turns, accordion, spheres and ripples
- An easy-to-operate joystick allows users to position and size effects as well as select and adjust colors.
- Tally outputs for up to eight cameras and 2-channel frame synchronization permitting special effects in each of the A/B program busses
- Large LCD control panel for easy operation and monitoring of system status.
- Five-row matrix menu display with five rotary switches makes it easy to set the unit's multitude of functions
- Inputs including composite, Y/C, component, or Serial Digital (SDI)
- 30-frame graphics buffer for roll, crawl and logo animation; and a USB interface makes it easy to download graphics
- RS-422A and RS-232C remote control terminals standard and a GPI terminal to permit the AG-MX70 to team with video editing devices
- Versatile audio mixing with four stereo inputs (or embedded audio with the optional SDI interface), plus 2 Auxiliary Inputs, one of which can be switched to a microphone level input
