Sony DSR-PD170 Mini DVCAM Professional Camcorder - SKU#1791136 Specifications

  • Audio/Video

    PCM Audio 48KHz/16 bit, 32KHz 12 bit 2 or 4 channel
    Scanning System 2:1 interlaced, 525 lines, 60 fields/sec. for video 480p for still images

  • Television System

    NTSC

  • Tape Format/Speed

    Format DV/DVCAM recording (SP mode), DVCAM /DV playback (SP mode)

  • Image Sensor

    Image Device prism mounted 3-chip 1/3inch, Interline-Transfer (IT) 380,000 pixel CCD's
    360,000 pixels effective 380,000 pixels total

  • Optical Zoom

    12X optical zoom

  • Digital Zoom

    20/48X digital zoom

  • Lens

    high MTF quality optical lens with manual Zoom, Focus and Iris control

  • Focusing System

    na

  • Min. Focus Distance

    na

  • Shutter Speed

    ? to 1/10000 sec

  • Illumination

    Minimum Illumination 2 lux

  • Filter Size

    2 Built-in Filters ND1: ? and ND2: 1/32

  • Viewfinder

    Viewfinder 180,000 dot B and W

  • LCD Screen

    Color 2.5" swing out reversible 200,000 dot LCD panel display TFT

  • Manual Controls

    Shutter speeds, Independent Audio recording levels, White balance, AE shift, Iris, Zoom, Focus

  • Special Effects

    Digital video effects: Fader, Flash Motion, Trail, Old Movie (Sepia and shutter effects), Luminance Key

  • Fader

    3 Fader modes: black, monotone, overlap to last image from still

  • Titler

    Electronic title function

  • A/V Dubbing

    na

  • Input terminals

    Connectors S-Video, A/V, 2 xlr Audio In, i.Link, LANC, Headphone stereo mini.

  • Output terminals

    i.Link (IEEE1394 compliant) input and output built in interface

  • Digital Photo Mode

    480p VGA quality 640x480 progressive scan still image capturing

  • Microphone

    Directional electret

  • Headphone Jack

    na

  • Flash

    na

  • Built-In Light

    Spotlight and backlight

  • Power Requirements

    100 to 240V 50/ 60 Hz

    output DC 8.4 Volts at 1.5 A 4.7 watts REC with viewfinder ON only

  • Dimensions

    125X180X405mm

  • Weight

    1.5 K g approx.

3 Accessories for Sony DSR-PD170 3-CCD Mini DVCAM/Mini DV Camcorder.

  • All Accessories (3)
  • Filters (2)
  • Batteries & Power Supply (1)

About Sony DSR-PD170 Mini DVCAM Professional Camcorder - SKU#1791136

FEATURED REVIEWS

Great camcorder, great value.

By valier

Great camera for professional use. Used whit a support shoulder it is as perfect as any other pro camcorder shoulder mounted. Perfect for documentary.

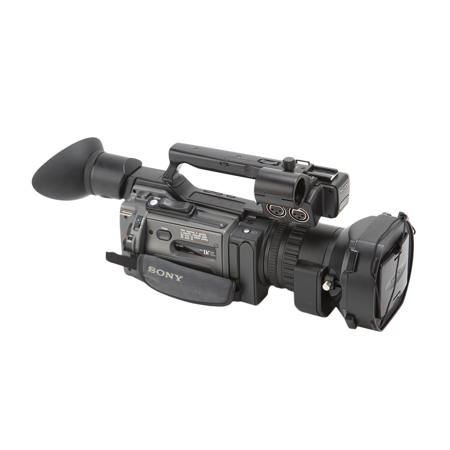

The DSR-PD170 provides high quality acquisition in the DVCAM component digital format, as well as in DV, allowing up to forty minutes recording on one tape Mini DVCAM tape or over a full hour in the DV mode. It is suited for Event Videography and Video Journalist applications. This compact camcorder features three newly developed 1/3 inch 380K pixel CCDs that allow two scanning modes: 480 progressive (for still) or interlaced (for video). These new CCDs also provide high quality acquisition with increased resolution and sensitivity at reduced noise and vertical smear. The DSR-PD170 also features complete Professional Audio functions with two built-in XLR inputs.

It features a built-in slot for a flash memory card or MemoryStick for still image storage. Up to 988 JPEG pictures can be stored in one 64 MB MemoryStick. The stored images can be mixed or keyed to the live image allowing logo insertion and/or mix effects. The built-in electronic zoom lens features Autofocus and SuperSteadyShot with a high MTF 12X high MTF quality optical lens with manual Zoom, Focus and Iris control.

A high resolution (500 lines) B&W viewfinder and a color swing out bright color LCD panel are included to make shooting a breeze. A software package for logo generation and included USB port adapter are standard.

Sony DSR-PD170 Mini DVCAM Professional Camcorder - SKU#1791136 Features

  • Image Device prism mounted 3-chip 1/3inch, Interline-Transfer (IT) 380,000 pixel CCD's
  • 12X optical zoom/20/48X digital zoom
  • PCM Audio 48KHz/16 bit, 32KHz 12 bit 2 or 4 channel
  • Format DV/DVCAM recording (SP mode), DVCAM /DV playback (SP mode)

What's in the box:

  • AC-L15 AC Adaptor
  • ECM-NV1 Electret Condenser Microphone
  • VCL-HG0758 Wide Conversion Lens
  • LSF-S58 Lens Hood for Wide Conversion Lens and Hood Cap
  • Lens Hood with Built-in Lens Cap
  • NP-F570 Battery Pack
  • Item Note: Missing RMT-811 Remote Commander& 2 AA Batteries; i.LINK Cable; Strap; Stereo AV Cable; Carrying Belt
