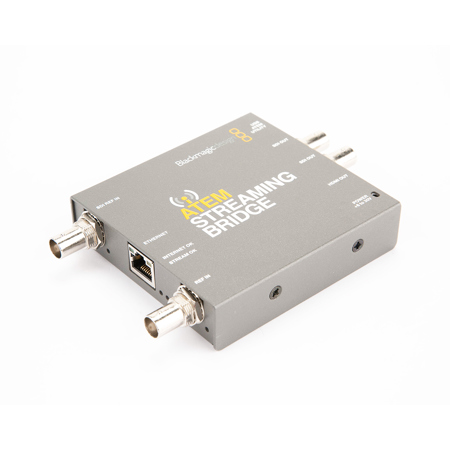

Used Blackmagic Design ATEM Streaming Bridge

SKU: US1796170

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-12-27T09:48:58

Rated 5 out of 5

It works perfectly for us!

It works exactly as intended. It does keep you from streaming from the ATEM switcher, but that's what you can expect from a $595 switcher. We take the USB output and send it to an OBS Studio server. Anyway, it adds about another 100 ms of delay to the video broadcast....so make sure you factor that in when you use it!

BARBARA S.

2020-12-11T19:14:13

Rated 5 out of 5

setting the standard for the industry

Professional grade equipment for superior connection.

JOSEPH H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Blackmagic Design ATEM Streaming Bridge Specifications

Connections

Connections

Jump to...
  • SDI Reference Inputs

    1x 3G-SDI

  • SDI Video Outputs

    2x 3G-SDI

  • SDI Audio Outputs

    2 Channels embedded in HD-SDI

  • HDMI Video Output

    HDMI type A out

  • HDMI Audio Outputs

    2 Channels embedded in HDMI

  • SDI Rates

    1.5G, 3G

  • Reference Input

    Black burst and Tri-Sync

  • Ethernet

    Ethernet supports 10/100/1000 BaseT

  • Updates and Configuration

    1x USB Type-C for software configuration and software updates

Standards

Jump to...
  • SDI Video Standards

    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

  • HDMI Video Standards

    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425 Level A and Level B

  • SDI Video Sampling

    0.168078703703704

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • SDI Color Precision

    10-bit

  • SDI Color Space

    YUV

Streaming

Jump to...
  • Streaming Input

    ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini Pro and ATEM Mini Pro ISO

Software

Jump to...
  • Software

    Internal software upgrade via updater application

Operating Systems

Jump to...
  • Operating Systems

    Mac 10.14 Mojave, Mac 10.15 Catalina or later
    Windows 8.1 and 10, both 64-bit

Settings Control

Jump to...
  • Settings Control

    Mini Switches or setup utility software when connected by USB

Power Requirements

Jump to...
  • Power Supply

    +12V universal power supply included with international socket adapters for all countries

  • Power Consumption

    6W max

  • Operational Voltage Range

    6 - 30V DC

EMC Certifications

Jump to...
  • Power Supply

    EMC, FCC, CE and KCC

Environmental Specifications

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

General

Jump to...
  • Dimensions

    5.3 x 3.6 x 0.9" (134.1 x 92.25 x 23mm)

  • Weight

    8.1 oz (230g)

3 Accessories for Blackmagic Design ATEM Streaming Bridge

  • All Accessories (3)
  • Power Supply & Accessories (3)

About Blackmagic Design ATEM Streaming Bridge - SKU#1796170

FEATURED REVIEWS

It works perfectly for us!

By BARBARA S.

It works exactly as intended. It does keep you from streaming from the ATEM switcher, but that's what you can expect from a $595 switcher. We take the USB output and send it to an OBS Studio server. Anyway, it adds about another 100 ms of delay to the video broadcast....so make sure you factor that in when you use it!

setting the standard for the industry

By JOSEPH H.

Professional grade equipment for superior connection.

live streaming bridge

Stream To Yourself With ATEM Streaming Bridge.

The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations around your local Ethernet network, or via the internet globally! That's possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini Pro remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote ATEM Mini Pro studios. ATEM Streaming Bridge is the perfect way use ATEM Mini Pro as a remote broadcast studio!

live steaming diagram

Take Your Live Stream To The Next Level.

ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom. Simply connect ATEM Mini and you can switch live between 4 high quality video camera inputs for dramatically better quality images, or connect a computer for PowerPoint slides & gaming consoles.

Connect & Create.

The built in DVE allows exciting picture in picture effects, perfect for commentary. There's also HDMI out for projectors & microphone inputs for high quality desktop audio design. All ATEM Mini Pro models have live streaming, connect any of them to the ATEM Streaming Bridge & watch the value of your production increase.

Connect & Create.

What's in the box:

  • Blackmagic Design ATEM Streaming Bridge
  • 12V Universal Power Supply
