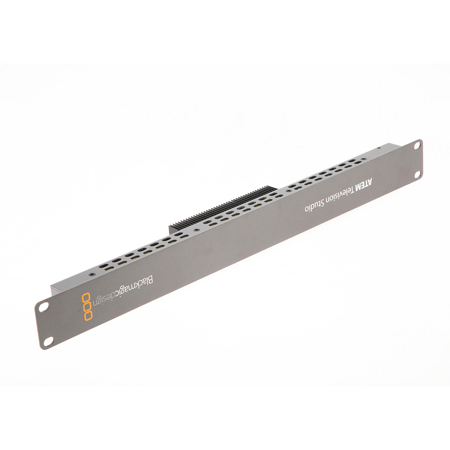

Used Blackmagic Design ATEM Television Studio Production Switcher

SKU: US1800838 MFR: SWATEMTVSTU
Earn VIP Reward Points

Key Features

  • With the Internet becoming the television transmitter for all of us
  • All transitions are instantly available and include the same cut
  • Now you can save thousands of dollars on camera monitoring
  • ATEM Television Studio might be small, but it's packed
  • For the highest quality video
  • You simply get more features
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$41.99

2 Year

$55.99

3 Year

$86.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Blackmagic Design ATEM Switcher Specifications

  • Total Video Inputs

    6

  • SDI Video Inputs

    4 x 10 bit SD/HD switchable

  • HDMI Video Input

    4 x HDMI 1.4a 10 bit SD/HD switchable

  • Analog Video Input

    No

  • Audio Input

    1 x AES/EBU. Unbalanced via BNC connector

  • Sync Input

    Tri-Sync or black burst

  • Internal Frame Synchronizers

    6. All inputs

  • Total Outputs

    6

  • SDI Program Outputs

    2 x 10 bit SD/HD switchable

  • HDMI Program Outputs

    1 x HDMI 1.4a 10 bit, SD/HD switchable

  • Analog Program Outputs

    No

  • Down Converted SDI Program Outputs

    No

  • Down Converted Composite Program Output

    No

  • SDI Preview Outputs

    No

  • SDI Aux. Outputs

    No

  • SDI M/E 2 Program Output

    No

  • Computer Output

    1 x USB 2.0 H.264 encoded from program output. Media Express for Mac OS X and Windows included

  • Qty of Multi View's

    1

  • Outputs Per Multi-View

    1 x HD-SDI and 1 x HDMI

  • SDI Audio Outputs

    2 Ch embedded into SDI output

  • Analog Audio Outputs

    No

  • Control Panel Connection

    Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network

  • Serial Communication Outputs

    No

  • Software Updates

    Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

  • Configuration

    Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

  • Colorspace Conversion

    Hardware based real time

  • HD Down Conversion

    No

  • HD Format Support

    1080i50, 1080i59.94, 720p50, 720p59.94.

  • SD Format Support

    625/25 PAL, 525/29.97 NTSC.

  • SDI Compliance

    SMPTE 259M, 292M

  • Video Sampling

    4:2:2 10 bit

  • Color Precision

    4:2:2 10 bit

  • Color Space

    4:2:2 YUV

  • Media Players

    2

  • Channels

    2x for fill and key

  • Media Pool Still Image Capacity

    2 with fill and key

  • Media Pool Clip Capacity

    No

  • Maximum Clip Length in 1080i

    No

  • Maximum Clip Length in 720p

    No

  • Maximum Clip Length in NTSC/PAL

    No

  • Media Pool Still Image Format

    PNG, TGA, BMP, GIF, JPEG and TIFF

  • Media Pool Video File Format

    No

  • Media Pool Audio File Format

    No

  • Number of Windows

    1 x 10

  • Routable Windows

    Fixed Routing

  • Tally

    Red for program and green for preview indication

  • Window Source Labels

    Yes

  • HDMI Input Resolutions for Computers

    720 x 480 59.94Hz, 720 x 576 50Hz, 1280 x 720 59.94Hz 50Hz and 1920 x 1080 59.94Hz 50Hz

  • Redundant Power

    No

  • Input Voltage

    12V-30V

  • Power Consumption

    20W

  • Size

    1 Rack Unit

  • Dimensions (W x H x D)

    19" x 1.75" x 2.5"/482mm x 44mm x 62mm

  • Weight

    3 lbs or 1.4 kg

About Blackmagic Design ATEM Television Studio Production Switcher

Blackmagic Design professional switcher with a broadcast quality H.264 encoder! That means you get live multi-camera production and broadcast encoding for the Internet all in one unit! ATEM Television Studio is so easy to use you don't even need to be a video professional to use it! Just plug in any HDMI or SDI camera and you are live!

Blackmagic Design ATEM Television Studio Production Switcher Features

  • With the Internet becoming the television transmitter for all of us, now ATEM Television Studio lets you do live production and simultaneously generate H.264 files for the web, all in real time
  • ATEM Television Studio might be small, but it's packed with professional power! ATEM includes all the same features as the most powerful switchers used in broadcast and is not "dumbed down." This means you get professional results and a familiar M/E style of operation
  • ATEM is the most creative solution for live switching! All transitions are instantly available and include the same cut, mix and wipe found on traditional mixers! It's simple to load graphics into the 2 built in media player frame-stores for exciting custom titles and logos!
  • Now you can save thousands of dollars on camera monitoring with ATEM's built in multi view. Multi view allows 10 channels of video to be displayed on a single HDMI television or monitor
  • For the highest quality video with extremely low processing delay, ATEM features a fully 10 bit digital design. This means you get the highest quality available from cameras, servers and character generators with true 10 bit video quality maintained throughout the entire signal path
  • You simply get more features with ATEM! You get an upstream keyer, with chroma, pattern, shaped and linear keying. You also get 2 downstream keyers and independent fade to black. This powerful feature set means you can produce true professional broadcast style live productions!

Warranty Information

This used item has a FREE 180-day warranty. See details.
