Review Summary
600ft
1080p 60Hz
48bit 330' (CAT5e), 24bit 600' (CAT6A)
1.4 3D
Max 115kbps
No
2 Normally Open
30Hz-100kHz
2-10/100
Port 1
No
Power, Status, HDMI, HDBaseT, RS-232 TX/RX, IR In/out
Reset
328ft 100m - 1080p 60Hz 24 & 36bit CAT 5e/6/6a/7
328 ft 100m - 1080p 60Hz 48bit CAT 6a/7
230ft 70m - 1080p 60Hz 48bit CAT 5e/6/6a/7
500ft 152m - 1080p 60Hz 24bit (Long Reach Mode) CAT 6
600ft 183m - 1080p 60Hz 24bit (Long Reach Mode) CAT 6A
CAT 5e/6 will achieve 328ft 100m for pixel clock <=225MHz
CAT 5e/6 will achieve 2 30ft 70m for pixel clock > 225MHz
CAT 6a/7 will achieve 328ft 100m for pixel clock >225MHz
Dual 8P8C with 2 LED indicators each
RJ-45 WE/SS 8P8C
3.5mm TRS
3.5mm TRS (Auto Sensing Direction for Blaster or Receiver)
Type A 19 pin
Diameter 1.35mm ID, 3.5mm OD
3.81mm Euro Style Green 4 Position
Dual 3.81mm Euro Style Green 5 Position
5.08mm Euro Style Green 4 Position
Black Aluminum enclosure
Wall- mounting & Rack Mounting
24V 90 Watt DC (Only 1 required on RX)
5Watts [Typical]; 80Watts (Amplifier full use) [Max]
32 to 104deg.F (0 to 40deg.C)
-4 to 140deg.F (-20 to 60deg.C)
20 to 90% RH (no condensation)
8.46 x 3.82 x 1.30" (215 x 97 x 33mm)
2.0 lbs (0.9 kg)

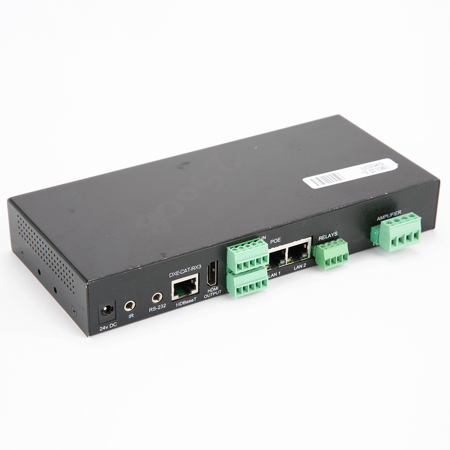

Before settling for an average CAT extender, discover the advanced capabilities of the Aurora Multimedia DXE-CAT-RX3 HDMI HDBaseT Extender with Relays. This cutting-edge device not only shatters expectations with its cost-effectiveness but also stands out with its comprehensive feature set and user-friendly design.
The DXE-CAT-RX3 Series is expertly engineered to integrate seamlessly with the Digital Xtreme Series of HDBaseT transmitters, including the DXW-2 Series HDBaseT wall plates, DXE-CAT-TX1, DXE-CAT-TX2, and DXM Matrixes. Its rear-mounted connectors facilitate a polished and professional installation, ensuring that your setup is both efficient and aesthetically pleasing.
Harness the power of HDBaseT technology to extend your HDMI signal with unparalleled clarity and stability. The DXE-CAT-RX3 can transmit a full 1080p 60Hz signal with a 48-bit color depth up to 330 feet using a standard CAT cable. For longer distances, achieve 1080p 60Hz with a 24-bit color depth over 500 feet with CAT 6 cabling, or an impressive 600 feet with CAT 6A Shielded cabling, depending on the transmitter model used.
Moreover, this extender supports bi-directional RS-232, IR, and LAN signal transmission, allowing you to send and receive data and control signals over the same single CAT cable. This feature simplifies the cabling requirements for AV installations in educational settings, corporate environments, or for home theater enthusiasts, making it an ideal solution for rolling carts, podiums, and credenzas.
Elevate your multimedia experience with the Aurora Multimedia DXE-CAT-RX3 HDMI HDBaseT Extender with Relays, a device that redefines the standards for audiovisual signal extension.
