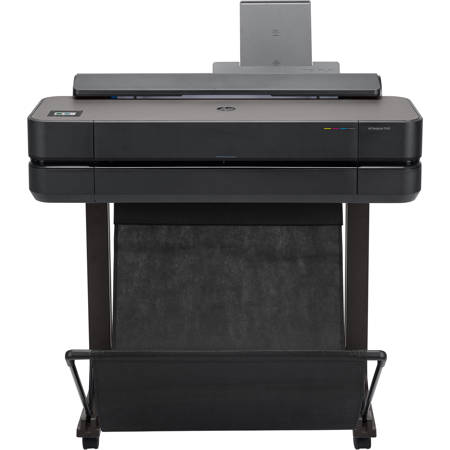

Used HP DesignJet T650 Wireless 24" Large Format Color Inkjet Plotter Printer

SKU: US1819026

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-10-03T20:00:00

Rated 3 out of 5

Printing large plans for different projects

I have printed about 70 large format prints so for. Set up was very easy so far my only complaint is that the cutter is not the smoothest and the sheets do not come out the exact size there is a couple millimeter difference in each sheet.

Finish L.

2024-02-12T19:00:00

Rated 5 out of 5

HP DesignJet T650 36-in Printer

Great plotter, was fairly easy to setup, however there was no instructions how to mount the upper fabric catch bin. I finally figured out where it should mount... the upper support bar for the legs. I wasn't going to redo the leg installation so I decided to mount the fabric to the support bar with zip ties. The plotter is well made but doesn't feel like the quality of my old HP DesignJet T520. It finally stopped working after 8 years of use. Software and ink cartridge installation was easy to install. Overall this is a good plotter for the price, I also bought the 5 year care pack. I would highly recommend purchasing the extended warranty. I am happy with my purchase.

EB E.

2023-09-24T20:00:00

Rated 5 out of 5

Best Decision I Made This Year!

Just attach the legs, paper catcher, and paper feeder then plug it in. It took two of us about fifteen minutes to get it assembled. Turn it on, load the paper and ink, link to your computer and start printing! That took about ten minutes. So in about 25 minutes it was up and running. I ran one test sheet which printed perfectly, then began the sets of Arch D size blueprints. The prints are perfect, line weights, line colors, font styles? all true and correct. The paper cutter works flawlessly, each sheet is cut exactly to size. Buy this printer!

Lane O.

2023-08-29T20:00:00

Rated 4 out of 5

Good Plotting printer

Great quality and easy to follow manual and set up. Would give it 5 stars but were still having trouble printing from all office computers. Drive works on some but on others it's complicated.

Top I.

2023-08-13T20:00:00

Rated 4 out of 5

It's OK

This machine was a required replacement since HP stopped supporting my T520. The new machine is OK. It tends to not remember my default settings. The HP website did not provide access to a user manual after various attempts. to learn everything.

KfromDenville

2023-04-27T20:00:00

Rated 1 out of 5

It will be great if it ever works.

Did not work properly out of the box and the instructions installed the wrong driver. I have spent over 3 hours on the phone with tech support and am now waiting on site service. I really like HP but this purchase has been a nightmare so far. I have had a nice expensive brick in my office for two weeks.

DaleT

2023-03-07T19:00:00

Rated 5 out of 5

Looks and performs great.

Nice Printer

JG99

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

HP T650 with Ext Warranty Specifications

Print
  • Print speed

    26 sec/page on D, 81 D prints per hour

  • Print resolution

    Up to 2400 x 1200 optimized dpi

  • Technology

    HP Thermal Inkjet

  • Margins

    Roll: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)
    Sheet: 0.2 x 0.2 x 0.2 x 0.2" (5 x 5 x 5 x 5mm)

  • Ink types

    Dye-based (C, M, Y); pigment-based (K)

  • Page Yield

    20ml of ink yields 101 A1/D pages, taking into account maintenance routines

  • Ink drop

    5.5 pl (C, M, Y); 12 pl (K)

  • Printheads

    1 (cyan, magenta, yellow, black)

  • Printhead nozzles

    1376

  • Line accuracy

    +/-0.1%

  • Minimum line width

    0.0008" (0.020mm)

  • Max optical density

    8 L min/2.10 D

  • Handling

    Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

  • Roll size

    11 to 24" (27.94 to 60.96cm)

  • Sheet size

    Auto sheet feeder: 8.3 x 11 to 13 x 19" (21 x 27.94 to 33 x 48.26cm)
    Manual feed: 8.3 x 11 to 24 x 74.7" (21 x 27.94 to 60.96 x 189.73cm)

  • Standard sheets

    Auto sheet feeder: A, B
    Manual Feed: A, B, C, D

  • Grammage

    60 to 280g/sq. m

  • Thickness

    Up to 11.8 mil

  • Applications

    Line drawings
    Presentations
    Renderings

  • Memory

    1GB

  • Hard disk

    None

Connectivity

Jump to...
  • Interfaces

    Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

  • Native print languages

    HP-GL/2, HP-RTL, CALS G4, JPEG, URF

  • Printing paths

    Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint

  • Drivers

    Raster driver for Windows and macOS

General

Jump to...
  • HP Software and solutions

    HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

  • Remote print enabled

    Yes

  • One-click multi-size printing

    Yes

Environmental ranges

Jump to...
  • Recycled plastic in printer

    30%

  • Operating temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Operating humidity

    20 to 80% RH

  • Operating altitude

    Up to 9843' (3000m)

  • Storage temperature

    -13 to 131 Degree F (-25 to 55 Degree C)

Acoustics

Jump to...
  • Sound pressure

    42 dB(A) (operating), <16 dB(A) (idle)

  • Sound power

    5.8 B(A) (operating), <3.4 B(A) (idle)

  • Consumption

    <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

  • Requirements

    Input voltage (auto ranging): 100-240 V ( +/-10%), 50/60 Hz ( +/-3 Hz), 1200 mA max

Certification

Jump to...
  • Safety

    USA and Canada (CSA certified), EU (LVD, EN 60950-1 and EN 62368-1 compliant),Russia, Belarus, Khazakstan (EAC), Ukraine (UA), Singapore (PSB), China (CCC), Argentina (IRAM), India (BIS), Mexico (NYCE)

  • Electromagnetic

    Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Certified as Class B product: Korea (KCC)

  • Environmental

    ENERGY STAR, WEEE, EU RoHS, EAEU RoHS, REACH, ErP, EPEAT Gold

Physical

Jump to...
  • Dimensions (W x D x H)

    39.9 x 23.8 x 36.7" (101.34 x 60.45 x 93.21cm)

  • Weight

    65 lbs (29.48kg)

About HP DesignJet T650 Wireless 24" Large Format Color Inkjet Plotter Printer

FEATURED REVIEWS

Best Decision I Made This Year!

By Lane O.

Just attach the legs, paper catcher, and paper feeder then plug it in. It took two of us about fifteen minutes to get it assembled. Turn it on, load the paper and ink, link to your computer and start printing! That took about ten minutes. So in about 25 minutes it was up and running. I ran one test sheet which printed perfectly, then began the sets of Arch D size blueprints. The prints are perfect, line weights, line colors, font styles? all true and correct. The paper cutter works flawlessly...

View full Review

HP DesignJet T650 36-in Printer

By EB E.

Great plotter, was fairly easy to setup, however there was no instructions how to mount the upper fabric catch bin. I finally figured out where it should mount... the upper support bar for the legs. I wasn't going to redo the leg installation so I decided to mount the fabric to the support bar with zip ties. The plotter is well made but doesn't feel like the quality of my old HP DesignJet T520. It finally stopped working after 8 years of use. Software and ink cartridge installation was easy ...

View full Review

It's time to redefine your printing experience with the DesignJet T650 Wireless 24" Large Format Color Inkjet Plotter Printer. This compact device, known as the world's smallest wide-format printer, is designed to seamlessly fit into your workspace, align with your budget, and adapt to your unique working style.

The DesignJet T650 is engineered to handle multi-size projects with ease, allowing you to print A1/D plots in as fast as 25 seconds. Equipped with a 1GB memory, it is the perfect tool for AEC, GIS, and MCAD professionals who need to print maps, technical drawings, posters, and renders with precise line quality and sharp text.

Experience the world's easiest-to-use large-format printer that offers impressive simplicity to keep you productive. It's designed with cost-saving efficiencies, using up to 95% less ink for routine maintenance, saving you both time and money.

This printer is designed to work exclusively with cartridges that have a new or reused HP chip, employing dynamic security measures to block non-HP chip cartridges. Regular firmware updates ensure the continued effectiveness of these security measures.

The DesignJet T650 is not just about performance, it's also about sustainability. Its design reduces CO2e up to 7.3 tons/year per unit sold by incorporating up to 30% UL Validated recycled plastic. It offers free, convenient HP ink cartridge and printhead recycling through HP Planet Partners, and uses FSC-certified papers and a range of recyclable HP media. It's also ENERGY STAR certified and EPEAT registered.

With the DesignJet T650, you can print multi-size A3/B and A1/D or A0/E projects automatically, without the need to manually switch the media source. It features the world's easiest job submission, allowing you to send multiple files in one click with HP Click.

Designed to fit your office and budget, this compact plotter comes with a built-in stand and uses up to 95% less ink for routine maintenance compared to competitors. It also offers high-speed printing, delivering results as fast as 25 seconds per A1/D plot.

Stay connected and manage your plotter from virtually anywhere, anytime with the HP Smart app. With HP Bright Office Inks, you can expect up to 31% more line accuracy and up to 65% more gamut, ensuring high-quality results every time.

HP DesignJet T650 Wireless 24" Large Format Color Inkjet Plotter Printer Features

  • 26 sec/page on D, 81 D prints per hour
  • Letter size to 24" x 150'
  • Print Resolution Color (best): Up to 2400 x 1200
  • Automatic sheet feeder, media bin, sheet feed, roll feed

What's in the box:

  • HP DesignJet T650 Wireless 24" Large Format Color Inkjet Plotter Printer
  • Printer Stand
  • Automatic Sheet Feeder
  • Roll Cover
  • Printhead
  • Introductory Ink Cartridges
  • Spindle
  • Setup Poster
  • Power Cord
  • User Manual
  • Original Box
