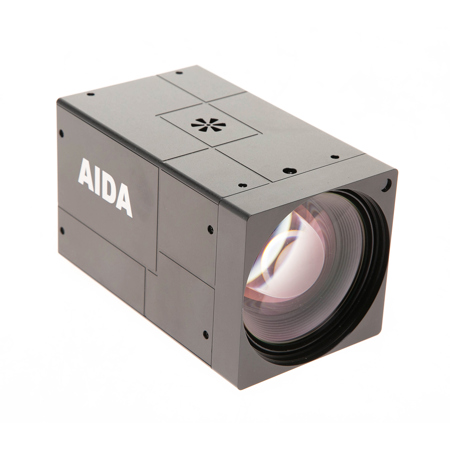

Used AIDA UHD6G-X12L Full 4K Ultra HD 6G-SDI/HDMI 1.4 Professional EFP/POV Camera, 12x Optical Zoom, 29.97fps

SKU: US1819759 MFR: UHD6G-X12L
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$81.99

3 Year

$126.99

4 Year

$172.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

AIDA UHD6G-X12L Specifications

Video
  • Image Sensor

    1/1.9" Progressive CMOS

  • Sensor Size

    Diagonal 9.93mm (17:9)

  • Effective Pixels

    Horizontal: 4096, Vertical: 2160

  • Pixel Size

    1.85 Mum (H) x 1.85 Mum (V)

  • Resolution

    4096 x 2160, 3840 x 2160, 1920 x 1080, 1280 x 720

  • Resolution/Rate

    4K (4096 X 2160) 20/24p
    2160 30p/29.97p
    1080 60p/59.94p/50p/30p/29.97p/25p
    1080 60i/59.94i/50i
    720 60p/59.94p/50p/30p/25p

  • Output

    HDMI 1.4
    HD/3G/6G-SDI (BNC)

  • Color Space

    4:2:2 (YCbCr) 10bit

Function

Jump to...
  • White Balance

    AWB / AE / AF

  • Exposure

    Full Auto, Bright, Shutter Priority, Iris Priority, Manual

  • Others

    WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection

  • Lens

    12x UHD Optical Zoom, 4.2 - 50.04mm, F1.8 (Wide) - F2.8 (Tele)

  • Input

    3.5mm Stereo Mic-In & Line inover I/O Cable

  • Sample Rate

    16/24/32 Bits

Standard

Jump to...
  • SMPTE

    SMPTE 292M, SMPTE 424M, SMPTE 2081-10

Physical

Jump to...
  • Camera Control

    RS-485
    OSD Button

  • Operating Temperature

    15 to 120 deg. F (-9 to 49 deg. C)

  • Power

    12VDC (+9 - +15VDC)

  • Dimensions

    102.20 x 102.20 x 160mm (4.02 x 4.02 x 6.30")

  • Weight

    600g (21.16 oz)

About AIDA UHD6G-X12L Full 4K Ultra HD 6G-SDI/HDMI 1.4 Professional EFP/POV Camera, 12x Optical Zoom, 29.97fps

4K EFP Zoom Camera - Professional 12x Zoom EFP Camera
UHD6G-X12L is a professional 4K EFP camera solution that houses a superior 12x 4K lens zoom module. The UHD6G-X12L features a 1/1.7 Progressive Scan CMOS image sensor capable of 4K (4092 x 2160) with significantly enhanced imaging characteristics including sensitivity and low noise under low light conditions. Powered by a back-illuminated pixel technology the UHD6G-X12L realizes 4K high picture quality in the visible light with wide dynamic range. The UHD6G-X12L is robust in its physical features with expanded control sets via VISCA protocol, audio and dual video (6G-SDI & HDMI 1.4) simultaneous output interfaces. Designed for versatility, durability and cost effectiveness for a smooth integration into any broadcast, professional or corporate AV environment.

Applications
• Broadcast
• Education
• Medical
• Live Production
• Sports/Racing
• Film
• Theater
• Worship

AIDA UHD6G-X12L Full 4K Ultra HD 6G-SDI/HDMI 1.4 Professional EFP/POV Camera, 12x Optical Zoom, 29.97fps Features

  • 4K 1/1.7 Progressive Scan CMOS sensor capable of 4K (4092 x 2160) captures sharp and vivid images even under very low light conditions
  • Power by a back-illuminated pixel technology
  • Superior 4K 12x optical zoom
  • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction
  • Superb motion-compensated temporal noise reduction filter for motion video without blurring
  • OSD control breakout cable with audio input and RS-485 for remote communication
  • Dual video simultaneous output interfaces 6G-SDI & HDMI
  • Flawlessly relays multi-channel embedded audio via 6G-SDI & HDMI
  • Perfectly suited for broadcast, pro audio/video, and security
  • Conforming with SMPTE 292M, 424M and 2081-10
  • Versatile, compact, and rugged design

Warranty Information

This used item has a FREE 180-day warranty. See details.
