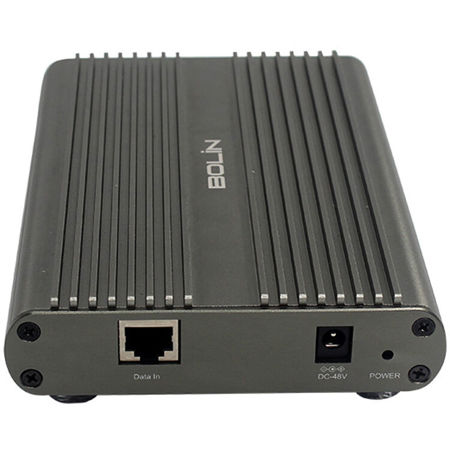

Bolin Technology BL-PP97 High Power POE Injector
Bolin Technology BL-PP97: Picture 1 thumbnail
Bolin Technology BL-PP97: Picture 2 thumbnail
See all Bolin Technology items
CloseoutUsed Condition: Open Box

Used Bolin Technology BL-PP97 High Power POE Injector

SKU: US1820289 MFR: BL-PP97
Be the first to review this item
$182.00
New: $595.00
Used Savings: $413 (69%)
Earn VIP Reward Points
See all Used options (1) from $182
Buy NEW from $595

Key Features

  • Power your surveillance cameras easily with this high power POE injector.
  • Enjoy reliable performance with overload and short circuit protection features.
  • Extend your network reach up to 100 meters using this handy POE injector.
  • This POE injector is compatible with IEEE802.3af/at for versatile use.
  • Get continuous power with a wide temperature range for security systems.
  • Simplify setup with plug-and-play functionality for your security cameras.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Calculate Shipping

See Options

1
Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$12.99

2 Year

$19.99

3 Year

$29.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Bolin Technology BL-PP97 Specifications

  • PoE Standards

    POH compatibale with IEEE802.3at Type1(af) , IEEE802.3at Type 2, IEEE802.3bt Type 3, IEEE802.3bt Type 4

  • Interface Ports

    1xRJ45 LAN port(LAN IN) 100/1000Mbps Auto-Negotiation
    1xRJ45 PoE port(Power+Data Out) 100/1000Mbps Auto-Negotiation
    1xPower socket(DC IN)

  • Network Media

    100/1000BASE-T: UTP CAT5e (Max 70m), CAT6 (Max 100m)

  • Basic Function

    Auto-Sensing Algorithm enables providing power with 802.3af/ 802.3at PD
    Delivers power and data over the same cable up to 100 meters
    Auto-determine the necessary power requirements
    Plug-and-Play

  • Power

    Input: External 54VDC power adapter
    Output: Auto-determine the necessary power requirements up to 97W (80% efficiency may apply)

  • LED Indicator

    Power On(Red)

  • Operating Temperature

    -40 Degree F to 140 Degree F (-40 Degree C- 60 Degree C)

  • Operating Humidity

    10%-90% non-condensing

  • Protection Function

    Overload Protection, Short Circuit Protection

  • Dimension

    6.45 x 4.64 x 1.3" (164 x 118 x 33mm)

  • Weight

    1.15 lbs (0.52kg)

About Bolin Technology BL-PP97 High Power POE Injector

Functionality
• PoE Standard: IEEE802.3at Type1(af) , IEEE802.3at Type 2, IEEE802.3bt Type 3, IEEE802.3bt Type 4, PoH
• Cable:Cat5e/Cat6/Cat6e/Cat7
• Power Efficiency:90%
• Isolation:1500VDC
• Protection Function:Overload Protection, Short Circuit Protection
• Use external 54VDC power supply
• Use with Bolin heavy duty Ex1000 and SD500 Series PTZ systems & BC-7 and BC-9 Series broadcast PTZ cameras

Bolin Technology BL-PP97 High Power POE Injector Features

  • High Power PoE Injector for heavy duty Ex1000 and SD500 Series PTZ systems
  • POH compatibale with IEEE802.3at Type1(af) , IEEE802.3at Type 2, IEEE802.3bt Type 3 , IEEE802.3bt Type 4
  • Data Rate: 100/1000Mbps
  • Cable: Cat 5e/Cat6/Cat6e/Cat7
  • Power Input: External 54VDC power adapter; Power Output: Auto-determine the necessary power requirements up to 97W (80% efficiency may apply)
  • Power Efficiency: 90 %
  • 1xRJ45 LAN port(LAN IN) 100/1000Mbps Auto-Negotiation; 1xRJ45 PoE port(Power+Data Out) 100/1000Mbps Auto-Negotiation; 1xPower socket(DC IN)
  • This PoE power injector is not included with camera product. Sold separately
  • Use for Specific model : All Ex1000 Series and SD500 Series POE models

Warranty Information

This used item has a FREE 1-year warranty. See details.

Used Guarantee

30-day money back!
