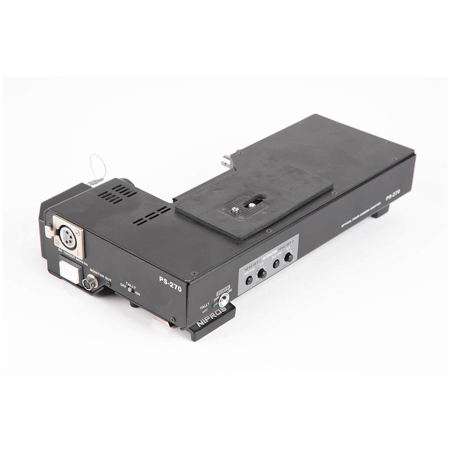

Used Nipros PS Series Handy Camera Adaptor, Remote Control for Sony and Panasonic Camera

SKU: US1845168 MFR: PS-270RHD/1
Be the first to review this item
$2,137.00
OR
$179/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (3) from $2,126

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Nipros PS Series Handy Camera Adaptor, Remote Control for Sony and Panasonic Camera Specifications

  • Input: HD/SD SDI

    1x (BNC)

  • Input: DC Power Supply

    1x (from base station)

  • Input: Time Code

    1x (BNC)

  • Output: HD/SD SDI RET

    1x (BNC)

  • Output: Genlock

    1x (BNC)

  • Output: Monitor I/F

    1x mini 6 pin (f)

  • Output: Tally

    1x mini 6 pin (f)

  • Output: Time Code

    1x (BNC)

  • Output: DC 12V

    1x XLR 4pin (f)
    1x XLR 4pin (f) DC 8.4/12V

  • Intercom: Headset

    Headset
    2x XLR 4pin

  • Tally Indicator

    1x Tally Indicator

  • Camera Remote

    Remote; 1x 8pin(f) or 10pin(f)

  • Remote control: LANC

    LANC; 1x Stereo mini jac Dia.2.5mm

  • Main Connection: Plug

    LEMO P/N; FXW.3K.93C.TLM

  • Main Connection: Maximum Distance

    2km with power supplied via fiber optic cable to PS-270RHD or PS-470RHD

  • Power Requirement

    DC 15V 20W max. (when supplied via DC In)

  • Power Consumption

    DC operation; approx. 20W max

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Operation Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operation Humidity

    10 to 90%

  • Dimensions (W x H x D)

    179 x 59 x 266mm / 7.05 x 2.32 x 10.47"

  • Weight

    Approx. 1.5kg / 3.31lbs

About Nipros PS Series Handy Camera Adaptor, Remote Control for Sony and Panasonic Camera

HD/SD-SDI Single Link & Bidirectional, Fiber Optic camera conversion system
• Transferable signal with the single link system are
• HD/SD-SDI & HD-Y/Video Composite
• Prompter video signal
• Return video
• 2-channel analog audio
• 2-way intercom lines
• Tally & Genlock video
• Camera remote control
• Time code (Input or Output)
• Extendable max. distance between camera adaptor and base station is up to 2 km
• Support embedded audio
• Broadcast quality video & audio
• Signal error detection
• Robust, high performance & versatile functions
• Camera signal can be adjusted with camera remote control unit from Sony or Panasonic
• Long-time operation with low-power consuming circuit for field production
