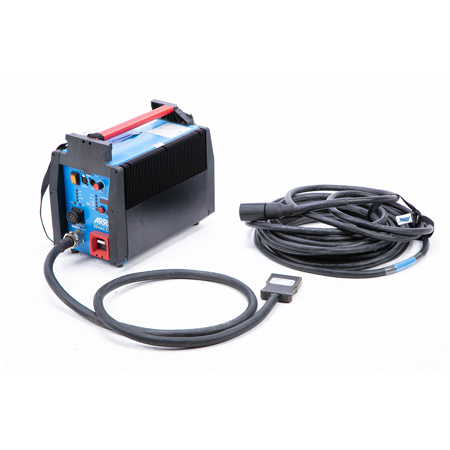

Used ARRI EB Max 2.5/4K Max High Speed Ballast with ALF and DMX, AutoScan, 50/60Hz (Stage Plug)

SKU: US1843450 MFR: L2.0019423
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$183.99

3 Year

$273.99

4 Year

$393.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

ARRI EB Max Specifications

  • Ballast Type

    Electronic High Speed Ballast for discharge lamps

  • Lamphead Types

    ARRI M-Series M40, ARRISUN 40/25, ARRI True Blue D25 and D40, (ARRI Compact 2500 and 4000)

  • Line Connection

    Bare ends

  • Lamp Power

    2,500 W and 4,000 W, discharge lamps only

  • Line Voltage

    100 - 130 V / 180 - 250 V, 50/60 Hz, 1, N, PE (single phase)

  • Line Current

    47 - 42 A (115 V)
    30 - 22 A (230 V)

  • Max. Power

    5,400 VA (max.)

  • Power factor

    cos phi 0.98 due to Active Line Filter (ALF)

  • Efficiency

    min. 0.91

  • Protection Class / IP Rating

    I / IP20

  • Temperature

    113 Degree F (45 Degree C) for max. ambient temperature

  • Active Line Filter (ALF)

    Yes

  • Compensation of Cable Losses (CCL)

    Up to 100m (115 V)
    Up to 100m (230 V)

  • DMX

    512, In and Out, 3 channels
    Dimming 100 % to 50 % of electrical output power
    On/Off Switch
    Mode Selection (Low Noise, Standard, AutoScan, AutoMan, Manual)
    Frequency setting (High Speed only)

  • DMX Connector

    DMX In / Out (XLR 5-pol) connector

  • Ignition

    Cold start and hot restrike

  • Automatic Detection

    Lamp wattage detection
    Lamphead detection

  • Lamp Frequencies

    50/60 Hz (Low Noise)
    75 Hz (Standard)
    300 Hz / 1,000 Hz (High Speed; 3 modes)

  • High Speed Modes

    AutoScan: Frequency scan, automatic control and adjustment of lamp frequency
    AutoMan: Manual frequency setting with automatic control and adjustment of lamp frequency
    Man: Manual frequency setting only, no automatic adjustment

  • High Speed Frequency Ranges

    300 Hz : 270 - 360 Hz
    1,000 Hz : 900 - 1,200 Hz

  • Indication

    Display for DMX channel and lamp frequency
    Successful ignition with LED "LAMP" (yellow)
    Overtemperature with LED "TEMP" (red)
    Line Power with LED "POWER" (green)
    Protective earth with LED "PE" (green)
    Lamp type with LED (2.5 kW green, 4 kW yellow)

  • Dimensions (H x W x L)

    14.1 x 9.6 x 17.7" (358 x 243 x 450mm)

  • Weight

    Approx. 45.2 lb (20.5kg)

About ARRI EB Max 2.5/4K Max High Speed Ballast with ALF and DMX, AutoScan, 50/60Hz (Stage Plug)

MAX Technology - Max Performance

Starting with the EB MAX 1.8 in 2017 ARRI built the foundation for a whole new range of high speed electronic ballasts - the EB MAX range. Together with three other models - EB MAX 2.5/4, EB MAX 6/9 and EB MAX 12/18 - the MAX range combines cutting-edge features with new remote control possibilities from 575 up to 18,000 W.

The EB MAX 2.5/4 is designed for two power classes: 2,500 W and 4,000 W. When combined with state-of-the-art ARRI daylight lampheads such as the True Blue D25 and D40 or M-Series M40, it enables optimal performance and advanced control for high image quality - at any frame rate.

The EB MAX 2.5/4 is equipped with essential features such as Active Line Filter (ALF) and Compensation of Cable Losses (CCL), delivering maximum light quality with efficient supply and wiring. The AutoScan feature ensures optimum light and image quality with a minimum of effort for high-speed recordings up to 1,000 fps and beyond.

Besides lamp operation at 50 or 60 Hz, if noise needs to be minimized, or at 75 Hz for standard frame rates, the EB MAX range accommodates high-speed frequencies at 1,000 Hz and - for the first time - at 300 Hz.

Three different modes are available for high-speed operation: AutoScan (fully automatic), Man (manual frequency control) or AutoMan (combining manual frequency setting with automatic frequency control). Using the AutoScan mode requires no further interaction by an operator. After a two-stage scan the lamp frequency is selected and set by the ballast; all parameters are continuously monitored and adjusted automatically, if required.

The EB MAX 2.5/4 as well as the other models of the EB MAX range offer new levels of DMX control. In addition to On/Off and dimming, both operation mode and frequency can now be controlled remotely. For ultimate ease of use, indicators on the ballast's front panel display the lamp wattage, DMX channel, operation mode and selected lamp frequency.
