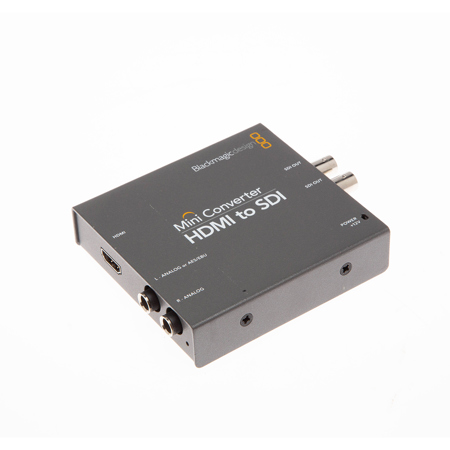

Blackmagic Design Mini Converter HDMI to SDI
Blackmagic Design Mini Converter HDMI to...: Picture 1 thumbnail
Blackmagic Design Mini Converter HDMI to...: Picture 2 thumbnail
Blackmagic Design Mini Converter HDMI to...: Picture 3 thumbnail
Blackmagic Design Mini Converter HDMI to...: Picture 4 thumbnail
See all Blackmagic Design items
CloseoutUsed Condition: Average

Used Blackmagic Design Mini Converter HDMI to SDI

SKU: US1848695 MFR: CONVMBHS2
Be the first to review this item
$50.00
Earn VIP Reward Points
See all Used options (3) from $33

Key Features

  • Embedded Audio
  • Universal Power
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Blackmagic Design Mini Converter HDMI to SDI Specifications

  • Input

    HDMI (x1)

  • Output

    SDI (x2) - switchable between SD, HD & 3Gbs SDI

  • Audio

    Analog: (2) channels of professional balanced analog with standard 1/4" jack connections
    Digital: (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard

  • SDI Format Support

    625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60

  • SDI Compliance

    SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI

  • SDI Video Sampling

    4:2:2

  • SDI Video Rates

    SDI video connections are switchable between standard definition and high definition

  • SDI Color Precisio

    4:2:2

  • SDI Color Space

    YUV

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • SDI Auto Switching

    Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI

  • Analog Format Support

    625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60

  • Analog Color Precision

    4:2:2

  • Analog Color Space

    YUV

  • HDMI Format Support

    625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60

  • HDMI Color Precision

    4:2:2 and 4:4:4

  • HDMI Color Space

    YUV and RGB

  • Power

    12VDC

About Blackmagic Design Mini Converter HDMI to SDI

The Mini Converter HDMI to SDI from Blackmagic Design will accept an HDMI signal and convert it to 2 SDI outputs. You can also choose to embed audio from balanced AES/EBU or analog audio inputs. Use this device to add SDI output to cameras with HDMI connections or add SDI outputs to computers with HDMI or DVI connectors.

Blackmagic Design Mini Converter HDMI to SDI Features

  • Embedded Audio: This unit can embed SDI audio from balanced AES/EBU or analog audio inputs
  • Universal Power: A power supply with international socket adapters for all countries is included
