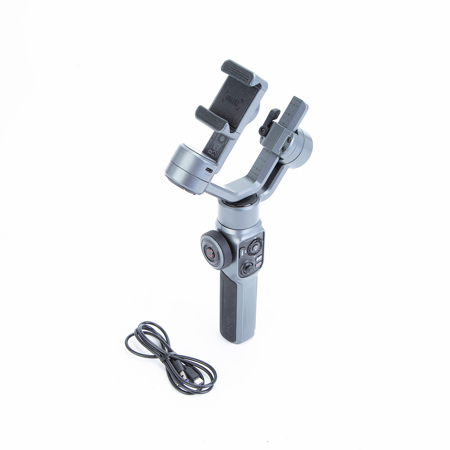

Zhiyun SMOOTH-5 3-Axis Handheld Gimbal Stabilizer for Smartphones
Zhiyun SMOOTH-5: Picture 1 thumbnail
Zhiyun SMOOTH-5: Picture 2 thumbnail
Zhiyun SMOOTH-5: Picture 3 thumbnail
Zhiyun SMOOTH-5: Picture 4 thumbnail
Zhiyun SMOOTH-5: Picture 5 thumbnail
Zhiyun SMOOTH-5: Picture 6 thumbnail
Zhiyun SMOOTH-5: Picture 7 thumbnail
Zhiyun SMOOTH-5: Picture 8 thumbnail

Picture does not represent the actual item

See all Zhiyun items
CloseoutUsed Condition: Open Box

Used Zhiyun SMOOTH-5 3-Axis Handheld Gimbal Stabilizer for Smartphones

SKU: US1851974 MFR: C030114G
(9)
$47.00
Earn VIP Reward Points
See all Used options (1) from $47

Key Features

  • Advanced 3-Axis Handheld Gimbal Stabilizer designed for a wide range of smartphone lenses
  • Upgraded algorithm and enhanced motor torque for superior stabilization and wider, clearer vision
  • Compatible with multiple colors of light filters for creative flexibility
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Calculate Shipping

See Options

1
Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$4.99

3 Year

$7.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-05-04T20:00:00

Rated 4 out of 5

Overall great

Great battery life and charges quickly, the spinning button feels a bit cheap but works fine, even works with lens and filter and came nicely packages

Daan

2022-11-24T08:35:04

Rated 5 out of 5

Smooth 5 Gimbal

Works great. It takes a little to get used to. After a few adjustments, it worked great

Todd C.

2022-11-20T19:00:00

Rated 1 out of 5

Software issues

While the gimbal, when functioning is good and does mostly what is being claimed, but.. Drains iphone 13 pro's battery life very fast, so you really, really need those extra charging batteries. Software malfunctions, a lot. Im not sure if its because bad bluetooth connection between the phone and gimbal or something else, but Ive had it shut down in middle of shooting video, focusing and while photographing. On top of that, at the time of writing, some of the claimed functions in the gimbal do not work, like accessing the camera app's settings via the handle. Some sources say the company is planning to get those fixed/functioning, but as of now not working. I personally would not have purchased this gimbal had I known these issues before hand. Hopefully these things get worked on.

Jere L.

2022-11-16T19:00:00

Rated 5 out of 5

Top Tier

Everything you'd want or need out of a smart phone gimbal!

Kenneth

2022-10-03T11:39:24

Rated 5 out of 5

Great option in the bag of tools...

I was impressed by how it easily handled the weight and size of the iPhone 12 Max PRO without any issues. I previously used Filmic Pro but not since they went to subscription based model. I will test the Zhiyun's native app for functionality and hope for some compatibility.

Raymond M.

2022-08-23T01:37:08

Rated 5 out of 5

the most satisfied gimbal I have ever used

very robust gimbal, I didn't find a satisfied gimbal for my iphone 12 pro max but this one is reliable. The focus wheel is defenitely for Pro users and easily got controlled. I like the long and thick handle as well.

Funk L.

2022-03-06T19:00:00

Rated 5 out of 5

Finally

Works with lenses

MICHAEL

2022-02-16T19:00:00

Rated 4 out of 5

fixed the charge and external mic issue

I'm new to this gimbal stuff, and I just love my smooth 5, can't wait for the filmic pro to work with it, also I saw the problem with the charging or adding a mic with the weight being shifted off balance...well I fixed that, I made a mold and my new wires will be available next month, they have a 90 degree input to the phone so no space taken up, stay tuned for my release date

charles b.

2022-01-12T19:00:00

Rated 5 out of 5

This is amazing!!!

I love this gimbal! I've owned a whole bunch of mobile gimbals in the past and this one is a huge step forward for people who have heavy phones like myself! Plus the motors can handle my external moment lenses with filters attached!!! How cool is that no other mobile gimbal that I have bought has been able to do that! I haven't fully tested it out but I'm planning on taking it with my on vacation coming up so that will be the ultimate test! Overall I'm really happy I bought this!

Brennan

Zhiyun SMOOTH-5 Specifications

  • Compatibility

    Smartphone Thickness <10mm

  • Following Deviation

    Static State: Min: +/-0.01 Degree
    Max: +/-0.04 Degree

    Motion State: Min: +/-0.05 Degree
    Standard: +/-0.1 Degree
    Max: +/-0.3 Degree

  • Tilt Mechanical Range

    Min: -140 Degree
    Standard: 349 Degree
    Max: 209 Degree

  • Roll Mechanical Range

    Min: -90 Degree
    Standard: 300 Degree
    Max: 210 Degree

  • Pan Mechanical Range

    Min: -180 Degree
    Standard: 360 Degree
    Max: 180 Degree

  • Controllable Tilt Angle

    Min: -90 Degree
    Max: +170 Degree

  • Controllable Roll Angle

    Min: -50 Degree
    Max: +50 Degree

  • Controllable Pan Angle

    Min: -180 Degree
    Max: +180 Degree

  • Bluetooth

    Bluetooth 4.2

  • EIRP

    <3dBm

  • Operation Frequency

    2.402GHz - 2.480GHz

  • Operation Voltage

    Min: 6.5 V
    Standard: 7.4V
    Max: 8.4V

  • Operation Current

    Min: 70mA
    Max: 300mA

  • Chrging Current

    Max: 1600mA

  • Output Voltage

    Standard: 5V

  • Output Current

    Max: 1 A

  • Operation Temperature

    Min: 14 Degree (-10 Degree C)
    Standard: 77 Degree F (25 Degree C)
    Max: 113 Degree F (45 Degree C)

  • Charging Ambient Temperature

    Min: 32 Degree (0 Degree C)
    Standard: 77 Degree F (25 Degree C)
    Max: 113 Degree F (45 Degree C)

  • Battery Capacity

    Standard: 2600mAh

  • Battery Run Time

    Min: 4.5 Hour
    Max: 25 Hour

  • Charging Time

    Min: 2 Hour
    Max: 4 Hour

  • Payload

    Min: 5.29 oz (150g)
    Max: 10.58 oz (300g)

  • Horizontal Arm Adjustment

    Min: -12mm
    Standard: 47mm
    Max: 35mm

  • Mounting Clamp Support

    Min: 50mm
    Max: 90mm

  • Battery Info

    Required, included

  • Battery Material

    Lithium

  • Battery Quantity

    1

  • Battery Type

    Non universal

  • Dimensions (W x D x H)

    12.2 x 6.61 x 2.04" (311 x 168 x 52mm)

  • Weight

    21.6 oz (615g)

About Zhiyun SMOOTH-5 3-Axis Handheld Gimbal Stabilizer for Smartphones

FEATURED REVIEWS

Great option in the bag of tools...

By Raymond M.

I was impressed by how it easily handled the weight and size of the iPhone 12 Max PRO without any issues. I previously used Filmic Pro but not since they went to subscription based model. I will test the Zhiyun's native app for functionality and hope for some compatibility.

the most satisfied gimbal I have ever used

By Funk L.

very robust gimbal, I didn't find a satisfied gimbal for my iphone 12 pro max but this one is reliable. The focus wheel is defenitely for Pro users and easily got controlled. I like the long and thick handle as well.

You can elevate your smartphone videography to new heights with the SMOOTH-5 3-Axis Handheld Gimbal Stabilizer. Designed with an upgraded algorithm and enhanced motor torque performance, this gimbal stabilizer supports a wide range of smartphone lenses, including wide-angle, telephoto, fisheye, and macro. This versatility provides a broader, clearer vision for all focal lengths, making it an ideal tool for both professional and amateur filmmakers.

The SMOOTH-5 Gimbal Stabilizer features an upgraded phone clamp that allows for the installation of a 5500k stepless-dimming fill light on both sides. This unique feature creates an optimal filming environment by eliminating improper lighting situations. Plus, it's compatible with multiple colors of light filters, giving you the flexibility to create the perfect mood for your shots.

One of the standout features of this gimbal is its intuitive parameter display and adjustment system. With a simple press of a button and a rotation of the adjustment wheel, you can easily modify parameter values. The status light displays gimbal modes and battery level, keeping you informed and in control of your filming process.

The SMOOTH-5 Gimbal Stabilizer also boasts a professional round joystick, allowing you to execute smooth movement filming with just one hand. This feature saves you the effort of reaching for your phone, making your filming experience more comfortable and efficient. Plus, with the ability to switch between zoom and focus with a single press and control focus and focal length with the control wheel, you can easily achieve cinematic techniques like Dolly Zoom and Shot Reverse Shot.

In summary, the SMOOTH-5 3-Axis Handheld Gimbal Stabilizer for Smartphones is a robust, reliable tool that enhances your smartphone filming capabilities, making it a must-have for anyone serious about mobile videography.

Zhiyun SMOOTH-5 3-Axis Handheld Gimbal Stabilizer for Smartphones Features

  • Upgraded algorithm and motor torque performance support smartphone filming with wide-angle, telephoto, fisheye and macro lenses, providing wider and clearer vision for smartphone with all focal length
  • Upgraded phone clamp supports installation of 5500k stepless-dimming fill light on both sides. Fill light can be installed on both sides of the phone clamp and mobile phone, creating better filming environment and avoid improper lighting situations. Can be used with multiple colors of light filters
  • Parameter display & adjustment: Press button for parameter adjustment, rotate the adjustment wheel to adjust parameter value
  • Status light supports display on gimbal modes and battery level. Added professional round joystick to finish the movement filming with just one hand and save effort for reaching the phone
  • Achieve Dolly Zoom and Shot Reverse Shot by switching between zoom and focus with one press and controlling focus and focal length with control wheel

Warranty Information

This used item has a FREE 1-year warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Advanced 3-Axis Handheld Gimbal Stabilizer designed for a wide range of smartphone lenses
  • Upgraded algorithm and enhanced motor torque for superior stabilization and wider, clearer vision
  • Compatible with multiple colors of light filters for creative flexibility
