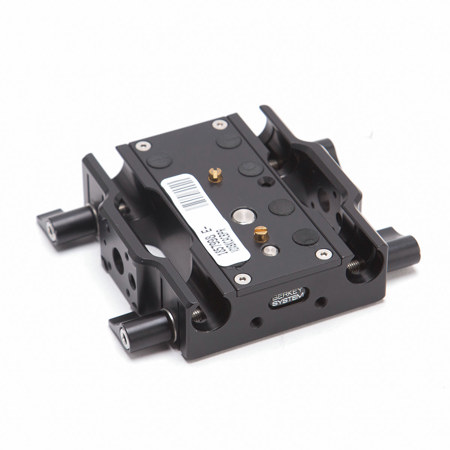

Used Berkey System Baseplate with Rosettes for Canon EOS C100/300/500

The Berkey System Baseplate with Rosettes is designed specifically for Canon EOS C100/300/500. This version includes one Arri compatible rosette per side to allow the user to add accessories. The camera is mounted to the baseplate via one 1/4-20 and one 3/8-16 captive screw. These camera mounting screws both have the same hex head size so just one 5/32 hex key is required to mount the camera. Additional locating pins front and rear ensure that the camera stays perfectly centered and will not twist.

Lens center to iris rod center distance is 85mm allowing the use of all matte boxes. There are two spring loaded index able knobs per side on this baseplate. Using two knobs per side gives superior rod clamping strength to prevent the iris rods from rotating when using a remote handle grip relocator or running a single handle off the iris rod. The bottom of the baseplate is drilled and tapped with the 17.25mm offset holes required for use with an Arri bridge plate. Length is 3.75", width is 4.5".
