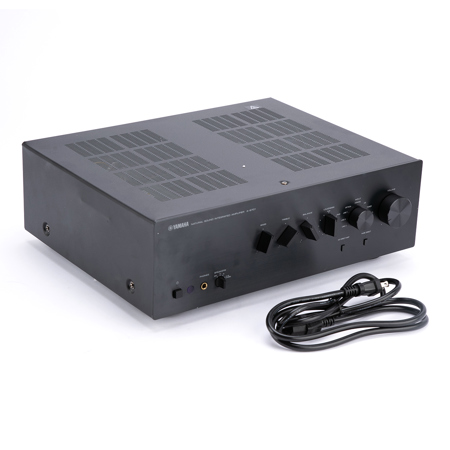

Used Yamaha A-S701 Integrated Amplifier, 290W Dynamic Power at 2 Ohms, 10Hz-100kHz Frequency Response, Black

Item Note: Item does not power on. May Have Additional Issues. Cosmetic Condition is Average. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE

SKU: US1858336 MFR: A-S701BL
$202.00
New: $899.95
Used Savings: $697.95 (78%)
OR
Earn VIP Reward Points

What`s in the box:

  • Yamaha A-S701 Integrated Amplifier
  • Remote Control
  • 2x Batteries (AA/ R6/ UM-3)
  • Power Cable
  • Original Box ** Item Note: Item does not power on. May Have Additional Issues. Cosmetic Condition is Average. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE **
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$44.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-07-05T20:00:00

Rated 5 out of 5

Amazing receiver

Love this receiver for the vintage look while including modern features.

Chris

2025-04-13T20:00:00

Rated 5 out of 5

Excellent sound

I was truly impressed at the quality and accuracy of the sound coming from my S701 Stereo Amplifier. I'm listening to my vinyl records and CDs collections through my vintage Infinity RS 1.5 speakers and my vintage JBL Century 100 speakers. I'm 70 years old so I listen to mostly classic,80s, 90's rock and blues.

Robbo

2024-12-25T07:43:06

Rated 5 out of 5

Would buy again

Product arrived as described and it arrived quickly

JIDE A.

2024-08-20T20:00:00

Rated 5 out of 5

Great Smooth Integrated HiFi Amplifier

Very good definition and resolution of sound and instruments, especially classical music and string instruments.

Fred

2024-02-25T19:00:00

Rated 5 out of 5

To quote Stevie Ray Vaughan...." This house is a rockin so..

I have it powering 4 klipsch 820f tower speakers and 1 klipsch rw 120 sub woofer .music supplied by a Dennon CD player and a 800+ CD collection . They produce a very clean , loud , and powerful music experience ! My neighbors are listening to great music whether they like it or not . # sweepstakes .

Bo

2023-12-12T19:00:00

Rated 3 out of 5

Buyer beware

Very attractive in stainless steel. But I bought this as a gift brand new. Less than 3 months later it isn't working.

Carla

2023-05-14T20:00:00

Rated 5 out of 5

Buy it!

It's a Yamaha?.always happy with their brand

Terry

2023-03-04T19:00:00

Rated 5 out of 5

Perfect For Vinyl

Love the pure dynamic setting. No idea what the heck it does exactly but vinyl sound great. Paired this with a Yamaha CD player and things are perfect.

JESFromASC

2023-01-03T19:00:00

Rated 5 out of 5

I would buy this amp again but I would spring for the A-S801

I believe my review says it all!

Retired E.

2022-11-26T19:00:00

Rated 4 out of 5

Few controls and very good sound. Just how I Like it.

I use the amplifier to hear music from computer. All king of music: jazz, rock, classical, electronic from '70. Also use it to hear the sound while see film on tv.

Aon

2022-11-07T19:00:00

Rated 5 out of 5

Very musical? very quiet?

Mostly Jazz and classic music listening CD's only format

Angelo

2020-06-02T20:00:00

Rated 5 out of 5

Excellent product!

I replaced an aging Carver receiver with the A-S701. Instant BIG improvement in the sound quality my system provides. Other components: Technics SL1200M3D turntable, NAD cd player, Nakamichi cassette deck, Polk SDA SRS2 speakers

REC

2016-12-17T19:00:00

Rated 5 out of 5

Put my speakers into top performance

I wast really impressed the way it improved the performance of my speakers. I had an Onkyo amp before and it did not come close to the depth of sound that the Yamaha produces. The unit is very heavy, and that tells you how much quality went into making it. Now lets see how long it lasts.

Rob

2016-08-16T20:00:00

Rated 5 out of 5

Very crisp sound with no distortion at any volume.

Remote does all functions on Yamaha tuner except on & off. Other then that this is one great piece!

N/A

2016-05-10T20:00:00

Rated 5 out of 5

EXCEPTIONAL PRODUCT

I use the amp to listen to CD's. It has plenty of clean power to drive higher end speakers that require a lot of power. Sounds excellent at any volume. An outstanding value with great features.

Chuck67

2016-01-11T19:00:00

Rated 5 out of 5

Great bit of kit

Ihave added plenty of old and new kit to this and it sounds great with power to boot, have a tape deck and a minidisc recorder plus cd and phono hooked up amp and still have spares!

Adam

2015-10-22T20:00:00

Rated 5 out of 5

Great Product

I replaced some seperates with the unit and the sound is great!plenty of pwoer easy to set up. Wish there was an option for a 3 set of speakers

stevenstlou

2015-09-13T20:00:00

Rated 5 out of 5

Delivers nice clear sound.

Using this to drive my Polk Rtia9's, and does it effortlessly with plenty power to spare, great sound and like the Bluetooth connections, direct cd and remote, which also operates my Yamaha cd player. Yamaha delivers on their specs.

Geigen

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Yamaha A-S701 Specifications

  • Minimum RMS Output Power

    8 Ohms: 100 W + 100 W (0.019% THD)
    6 Ohms: 120 W + 120 W (0.038% THD)

  • High Dynamic Power/Channel

    140 / 170 / 220 / 290 W at 8 / 6 / 4 / 2 Ohms

  • Frequency Response

    10 Hz - 100 kHz +/- 1.0 dB

  • Maximum power per channel

    1 kHz, 0.7% THD, 4 Ohms: 160 W

  • IEC power

    1 kHz, 0.019% THD, 8 Ohms: 115W

  • Power band width

    0.04% THD, 50 W, 8 Ohms: 10 Hz to 50 kHz

  • Maximum Effective Output Power

    1 kHz, 10% THD, 6 Ohms: 170 W

  • Input sensitivity/Input impedance

    PHONO (MM): 3.0 mV/47 kOhmss
    CD, etc: 200 mV/47 kOhmss

  • Maximum input signal

    PHONO (MM) (1 kHz, 0. 03%THD): 45 mV or more
    CD etc. (1 kHz, 0.5% THD): 2.2 V or more

  • Output level/Output impedance

    REC OUT: 200 mV/1.0 kOhmss or less
    SUBWOOFER OUT: 3.5 V/1.2 kOhmss

  • Phones jack rated output/Impedance

    CD, etc. (Input 1 kHz, 200 mV, 8 Ohms: 470 mV/470 Ohms

  • RIAA equalization deviation

    PHONO (MM): +/- 0.5 dB

  • Channel separation

    CD, etc. (5.1 kOhmss input shorted,1kHz): 65 dB or more
    CD, etc. (5.1 kOhmss input shorted,10 kHz): 50 dB or more

  • Bass

    Boost/Cut (20 Hz): +/- 10 dB
    Turnover frequency: 400 Hz

  • Treble

    Boost/Cut (20 Hz): +/- 10 dB
    Turnover frequency: 3.5 kHz

  • Continuous loudness control

    - 30 dB

  • PCM word depth

    24 bit/16 bit

  • Power supply

    AC 120 V, 60 Hz

  • Power consumption

    270 W

  • Standby power consumption

    0.5 W

  • Maximum power consumption

    580 W

  • Total Harmonic Distortion (CD to Sp Out)

    0.019% (50 W / 8 Ohms)

  • Signal-to-Noise Ratio (CD)

    99 dB (input shorted, 200 mV)

  • Damping Factor

    240

  • Digital Input

    Yes (optical / coaxial)

  • Audio In / Out

    8 / 2

  • Subwoofer Out

    Yes

  • Pure Direct

    Yes

  • ToP-ART

    Yes

  • Switchable CD Direct Amplification

    Yes

  • DC out

    Yes

  • Power Management (Auto Power Standby)

    Yes

  • Dimensions (W x H x D)

    17.12 x 6 x 15.25" (434.84 x 152.4 x 387.35mm)

  • Weight

    24.7 lbs (11.20kg)

About Yamaha A-S701 Integrated Amplifier - Black SKU#1858336

FEATURED REVIEWS

Put my speakers into top performance

By Rob

I wast really impressed the way it improved the performance of my speakers. I had an Onkyo amp before and it did not come close to the depth of sound that the Yamaha produces. The unit is very heavy, and that tells you how much quality went into making it. Now lets see how long it lasts.

Excellent product!

By REC

I replaced an aging Carver receiver with the A-S701. Instant BIG improvement in the sound quality my system provides. Other components: Technics SL1200M3D turntable, NAD cd player, Nakamichi cassette deck, Polk SDA SRS2 speakers

Just imagine the perfect blend of power, precision, and performance in one sleek package. The Yamaha A-S701 Integrated Amplifier, finished in a stylish black, is meticulously designed to deliver pure sound quality and outstanding drive power. This advanced integrated amplifier boasts both analog and digital inputs, offering versatility for your audio setup.

The A-S701 is built on Yamaha's ToP-ART (Total Purity Audio Reproduction Technology) Concept, a unique design technology that ensures a direct, symmetrical input to output layout. This design, coupled with the ART (Anti-Resonance and Tough) Base bottom chassis and a solid center bar, provides high rigidity support and dampens vibration, leading to optimum sound processing and transmission. The result A less likely chance of noise and distortion affecting your audio experience.

This powerful amplifier is not just about design; it's about the parts too. From the custom-made power transformer and block capacitors to the extruded aluminum heat sinks, every component of the A-S701 is selected and tested for its sound properties. The result is an amplifier that effortlessly handles demanding audio conditions, delivering high-quality, clear, and detailed sound across all frequencies.

The A-S701 also features CD Direct Amplification and Pure Direct Mode, maximizing the CD source's signal to noise ratio and ensuring the purest sound quality. The Continuously Variable Loudness Control allows you to adjust the balance of low and high frequencies, providing a full tonal range at any volume level.

The A-S701 is equipped with gold-plated terminals for a high-quality connection that prevents signal loss. It also offers digital audio inputs for TV and/or Blu-ray Disc Player, a connection for YBA-11 Bluetooth Wireless Adapter for wireless music streaming, and a terminal for connecting a subwoofer for a more powerful sound. Plus, with the Speaker A, B, or A+B selection, you can connect two separate speaker systems and enjoy your music in different rooms simultaneously.

The Yamaha A-S701 Integrated Amplifier is more than just a piece of equipment; it's a testament to Yamaha's rich experience, tradition, and high technological expertise. Whether you're a vinyl enthusiast or a digital audio fan, this amplifier is designed to deliver the best of both worlds. With its simple yet sophisticated design, easy-to-operate layout, and remote control with clean, simple design, the A-S701 is a stylish and reliable addition to any audio setup.

Yamaha A-S701 Integrated Amplifier - Black SKU#1858336 Features

  • High-quality integrated amplifier with 290W dynamic power at 2 Ohms
  • Features Yamaha's ToP-ART design for optimum sound processing and transmission
  • Equipped with CD Direct Amplification and Pure Direct Mode for purest sound quality
  • Offers gold-plated terminals and digital audio inputs for high-quality connection
  • Includes connection for YBA-11 Bluetooth Wireless Adapter for wireless music streaming
  • Stylish black design with easy-to-operate layout and remote control

What's in the box:

  • Yamaha A-S701 Integrated Amplifier
  • Remote Control
  • 2x Batteries (AA/ R6/ UM-3)
  • Power Cable
  • Original Box
  • Item Note: Item does not power on. May Have Additional Issues. Cosmetic Condition is Average. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE
