Used PocketWizard MultiMAX Transceiver, Remote Control Radio Slave. #802450

SKU: US1868732

This item is no longer available.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2014-01-29T19:00:00

Rated 3 out of 5

PocketWizard 802450 Multimax

The unit did not work correctly when I got it. The update function would not connect to the computer. I contacted PocketWizard and they stated that there hasn't been updates for a while. I had to explain to them that it should still work in case there are updates later. I had to send it back to them at my cost for repair and haven't gotten it back yet. I was able to use some of the other features before sending it in and it appeared to function good on the ones I tested.

KEVIN G.

2012-01-22T19:00:00

Rated 4 out of 5

Reliable Performance!

When 100% reliability is needed 100% of the time, then this is what you need. The only weakness would be a 'fragile' hot shoe foot.

OMAR F.

2009-05-26T21:00:00

Rated 5 out of 5

Versatile and Reliable

I use this to remotely trigger 4 speedotrons from the power pack. Works perfectly with good range. I bought this used without a manual and Pocket Wizard helped me do a factory reset and everything worked great

JAMES B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

PocketWizard MultiMAX Specifications

  • Range

    1600 feet or more

  • Frequency

    344MHz (Standard Triggering)
    346.5-354MHz (Quad-Triggering)

  • Code

    Complex 16/24 bit digitally coded signals

  • Channels

    32 Digitally coded ID#'s
    16 Original Classic Channels
    16 Quad-Triggering Channels

  • Synch Speed

    Up to 1/250 (focal plane)
    Up to 1/500 (leaf shutter)
    Up to 1/1000 (Fast Mode)

  • Batteries

    2-AA batteries 150 hour life

  • AC Adapter

    Optional AC adapter Cat# 804-105 (PW-AC-2) 3 VDC unregulated, 0.3 A (300 milliamp) or higher 4.5 VDC regulated, 0.2 A (200 milliamp) or higher, (recommended)

  • Housing

    Custom molded high impact plastic with captive battery door

  • Weight

    5.4 ounces (w/ alkaline batteries)

  • Dimensions

    Height: 4.0" (body only)
    Flexible Antenna: 2.4"
    Width: 2.1"
    Depth: 1.4"

  • Input/Output

    3.5mm (1/8") mono miniphone jack

  • Operating Temperature

    Above -15° C (5° F) and below 50° C (120° F)

  • Maximum Input Voltage

    250 VDC

  • Camera/Port 1

    0.5 A (1/2Amp), current limited

  • Flash/Port 2

    4.0 A for 0.00002 seconds (1/50000 seconds or 20 microseconds) 0.25 A (1/4 Amp or 250 milliamp) continuous, current limited

  • Voltage Present

    For Port 1 and Hot Shoe = 3.3 VDC, 0.001 A (1/1000 Amp or 1 milliamp), regulated

  • Trigger Threshold

    Less than 2.2 volts

  • Mounting

    Hot Shoe, ¼-20 female threads, lanyard and Velcro

  • Time

    Settings

  • Contact Time

    640.00 seconds or 10 minutes, 40 seconds (min .01 sec)

  • Delay Time

    6.4000 seconds (min .0001 sec)

  • Intervalometer

    64000 seconds or 17 hours, 46 minutes, 40 seconds (min 1 sec)

  • MultiPop

    640.00 seconds or 10 minutes, 40 seconds (min .01 sec)

  • Accuracy

    Timing is repeatable within +/- 1/10,000th of a second

  • Counter

    9999 triggers (min 0)

  • Preset Rear Curtain Delays

    1, 1/2,1/4, 1/8, 1/15, 1/30 and 1/60th shutter speed

Related Articles & Videos

As Seen in Professional Photographer: Adorama Flashpoint DG600 300 W/S/AC/DC Blue Monolight

As Seen in Professional Photographer: Adorama Flashpoint DG600 300 W/S/AC/DC Blue Monolight

Adorama releases an economical location light with consistent flash-to-flash performance.The following article originally appeared in Read more

The Golden Age of Wireless Photo Flash

The Golden Age of Wireless Photo Flash

"Wireless" is in. It covers everything from Internet hot spots to sending digital images wirelessly to your printer. But before these cutting-edge capabilities were possible, there was wireless flash for off-camera flash for your camera.
Read more
Nahoko Spiess, Fashion Photographer

Nahoko Spiess, Fashion Photographer

Hong Kong is the latest location for Paris-based fashion photographer Nahoko Spiess to capture couture, this time on assignment for Marie Claire magazine. The globetrotting photographer began her career in fashion not...

Read more
Firmware Upgrade: PocketWizard 7.5

Firmware Upgrade: PocketWizard 7.5

New features for pro shooters on USB-enabled units
Read more

About PocketWizard MultiMAX Transceiver, Remote Control Radio Slave. #802450

FEATURED REVIEWS

Versatile and Reliable

By JAMES B.

I use this to remotely trigger 4 speedotrons from the power pack. Works perfectly with good range. I bought this used without a manual and Pocket Wizard helped me do a factory reset and everything worked great

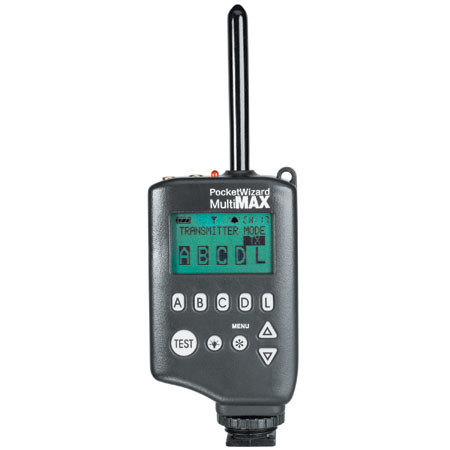

The PocketWizard MultiMAX Transceiver features Wireless Transceiver Technology, which eliminates the need for a separate transmitter and receiver setup. Each MultiMAX provides the capability to send and/or receive digital signaling by a flip of a switch, similar to personal communicators. Among many advantages, a photographer can select between a transmitter or receiver mode as shooting assignments change.

The MultiMAX is the only radio system that offers True Trigger Confirmation feedback, up to 1600 feet away or more, without the need for signal repeaters or daisy-chained radios. Selecting which camera or flash zone fires is as easy as pressing a button in "Selective Quad Triggering" mode. The MultiMAX automatically confirms radio triggering on every zone simultaneously, with immediate visual and audible feedback on the MultiMAX (set for transmitter).

Utilizing LPA Design's patented microprocessor and software technology, the MultiMAX comes loaded with "Trigger Time Control" software. Used independently or with another PocketWizard, the MultiMAX provides several unique advanced tools for the working professional, all in one small package. With the "Trigger Time Control" software, it's easy and very convenient to create rear curtain sync effects with any camera, add depth of field using multi-pop mode, record events as they unfold using the intervalometer mode and much more.

As with all PocketWizard Digital Radio Receivers, the PocketWizard MultiMAX is fully compatable with Sekonic's L-608 and L-358 exposure meters configured with the plug-in digital radio transmitter module. Now, you can trigger electronic flash units and/or cameras with your Sekonic L-608 or L-358 meter and PocketWizard Digital Radio Receivers.

The MultiMAX provides the capability to send or receive digital signaling by a flip of a switch, eliminating the need for a separate transmitter and receiver. Easy to read backlit LCD panel indicates which mode the MultiMAX is set for in all lighting conditions.

Because the MultiMAX is a true transceiver, it can automatically confirm radio triggering. Radio triggering confirmation status is indicated on the MultiMAX's (set for Transmitter mode) display panel, up to 1600 feet away or more in all Quad-Triggering zone.

The MultiMAX incorporates microprocessor controlled full digital communication with built-in selectable 32 complex (16/24 bit) digitally coded channels.

More than just a radio slave, the MultiMAX offers advanced features that make today's incredible images possible.

PocketWizard MultiMAX Transceiver, Remote Control Radio Slave. #802450 Features

  • Wireless Transceiver Technology
  • True Trigger Confirmation
  • Selective Quad-Triggering
  • Digital Radio Technology
  • Rear Curtain Sync
  • Precision Delays
  • MultiPop (Mulitple Flash Exposures)
  • Intervalometer
  • SpeedCycler
  • Lag Time Equalizer
  • Relay Mode
