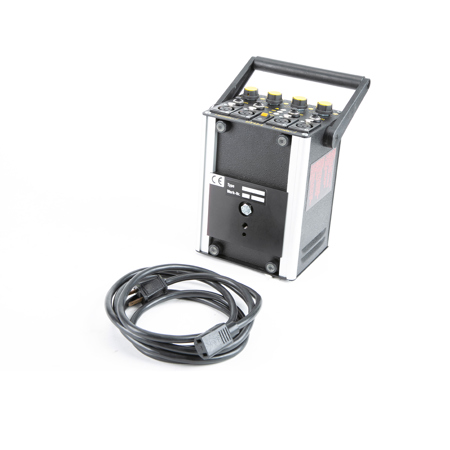

Used Dedolight DT12-4 Power Supply / Control Unit, 100-255 VAC Input with Four 12 Volt AC Outputs KIT

SKU: US1874903 MFR: DT124
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$74.99

3 Year

$120.99

4 Year

$164.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Dedolight DT12-4 Specifications

  • Technical Data

    DT12-4

  • Weight

    12.1 lb. (5.5 kg)

  • Input Voltage

    100V-255VAC

  • Output Voltage

    4 x 10-12VAC

  • Controls

    Illuminated master power switch, Fused input and outputs, Switchable input, Switchable outputs

About Dedolight DT12-4 Power Supply / Control Unit, 100-255 VAC Input with Four 12 Volt AC Outputs KIT

You can power the low-voltage Dedolight system using 12V or 24V lamps directly from many suitable power sources: camera batteries, car batteries (directly or via cigarette lighter adapter), battery belts, or any other 12V or 24V AC or DC power source.

This Power Supply/Control Unit is switchable in 24 steps for AC power input from 100V to 255VAC. It can simultaneously power four Dedolight heads equipped with 20W, 50W, 100W or mixed wattage lamps.



Each light (output) can be individually and independently switched in four distinct steps, each increasing color temperature and output:

1. Off
2. Low 3000øK
3. Medium 3200øK (10.7V at lamp)
4. High 3400øK (12.2V at lamp)

Even when running lamps at slightly higher voltage than rated, actual life far exceeds the manufacturer-rated life expectancy.

The DT12-4 also incorporates an input voltage indicator, enabling the user to determine correct input voltage at a glance and to control color temperature precisely.
