Used Muxlab 4K Digital Signage Player Plus

SKU: US1891757 MFR: 500789
$105.00
New: $484.00
Used Savings: $379 (78%)
Earn VIP Reward Points

What`s in the box:

  • Muxlab DigiSign 4K UHD Digital Signage Player
  • 12 VDC Power Adapter

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500789 Specifications

  • Environment

    HDMI 2.0

  • Devices

    TVs, monitors, projectors supporting HDMI

  • Signal Protocol/Standard

    HDMI 2.0 and HDCP 2.2

  • Video Bandwidth

    594MHz

  • Network Bandwidth

    25Mbps (typical)

  • Protocols

    Supports Multicast, HLS, and RTSP

  • Connectors

    Two (2) HDMI output connectors for AV
    One (1) RJ45 Ethernet connection for LAN connection
    Four (4) USB 3.0 connectors (for future use)
    One (1) 3.5mm output connector for audio extraction
    One (1) 2.1mm power connector

  • Maximum Distance

    Cat5e/6: 330' (100m) from Ethernet Switch. Unlimited over the Internet

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R), Pin 2 (T)
    Pin 3 (R), Pin 6 (T)
    Pin 4 (R), Pin 5 (T)
    Pin 7 (R), Pin 8 (T)

  • Public Cloud

    Not supported

  • Power Supply

    Includes a 12VDC/2A power adapter

  • Power Consumption

    12W

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.5 x 4.0 x 1.6" (115 x 102 x 42mm)

  • Weight

    1.44 lbs (650g)

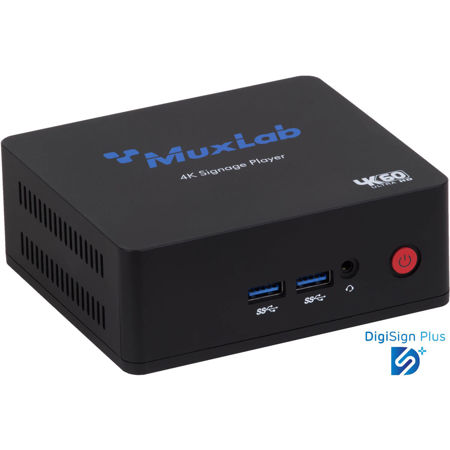

About Muxlab DigiSign 4K UHD Digital Signage Player - SKU#1891757

The DigiSign 4K Signage Player (model 500789) is capable of playing multiple audio/video content simultaneously in a multiview window up to 4K/60 (4:4:4) from a local network, the Internet, or internal memory, and supports multiview capability (including dual 4K videos, or multiple 1080p videos and supports a scheduler to automatically deliver the windowed audio/video content based on a yearly schedule. Multiple video, audio and image file formats are supported. The unit delivers 4K@60Hz (4:4:4) content to a display or to a MuxLab AV over IP system to be distributed to multiple displays and video wall arrangements. The Player supports a Keyword Dictionary, Proof of Play and Interactive Mode.

The exceptionally low bandwidth requirements of this device allows it to accept streaming audio/video content over a local network, and over the Internet. The unit may be extended up to 100m from the Ethernet switch over CAT5/6 cable.

The DigiSign 4K Signage Player is managed by the DigiSign CMS (Content Management System) Software running on PC, which supports video, audio and image content as well as HTML5, RSS feeds and many other widgets. DigiSign CMS can easily and quick create digital signage content and schedule the content to be played on the Player. The Player has 128GB of internal memory to store the created signage content and schedule in order to run autonomously.

Applications:
• Digital signage / Media player
• Audio/Video Streaming over LAN and Internet
• Commercial and residential AV systems
• Corporate lobbies, malls and boutiques, airports. subway/train/bus stations, etc.

Muxlab DigiSign 4K UHD Digital Signage Player - SKU#1891757 Features

  • Supports dual 4K @ 60Hz (4:4:4) video streams
  • Two HDMI output ports to connect to two displays
  • Supports playlists and Player grouping
  • Supports a yearly scheduler to operate autonomously
  • Supports multi-format video, image and audio files
  • Supports HTML5, RSS feeds and many other widgets
  • Supports multiview layouts, including dual 4K/60 videos
  • Decodes H.264/265 video streams over the Intenet and local network
  • Supports Multicast, HLS and RTSP
  • Supports a Keyword Dictionary, Proof of Play, and Interactive Mode
  • Extracts analog audio via 2CH 3.5mm jack
  • Compatible with the DigiSign CMS (Content Management System) Software running on PC

Warranty Information

This used item has a FREE 1-year warranty. See details.

What's in the box:

  • Muxlab DigiSign 4K UHD Digital Signage Player
  • 12 VDC Power Adapter
