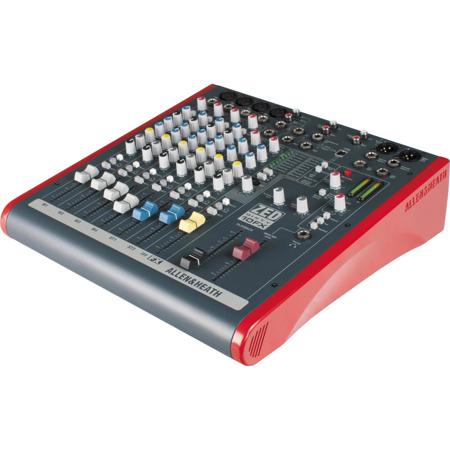

Allen & Heath ZED60-10FX Multipurpose Mixer - SKU#1894963

Picture does not represent the actual item
See what's in the box

See all Allen & Heath items

Used Allen & Heath ZED60-10FX Multipurpose Mixer with FX and USB I/O Port, 4 Mic/Line/ 2 Stereo Inputs

SKU: US1894963
Be the first to review this item

This item is no longer available.

Buy it New

Allen & Heath ZED60-10FX Multipurpose Mixer with FX and USB I/O Port
Allen & Heath ZED60-10FX Multipurpose Mixer with FX and USB I/O Port
$549.99
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Allen & Heath ZED60-10FX Specifications

  • Input Mono channel (XLR) Input

    -10 to -60dBu for nominal (+11dBu in max)

  • Input Mono channel Line Input

    +10 to -40dBu (+31dBu maximum)

  • Input Stereo Input

    0dBu nominal (control = Off to +15dB)

  • Output L/R Outputs ( XLR) Normal/DI out

    0dBu/-30dBu +21dBu/-9dBu maximum

  • Output Aux & FX Outputs (Jack sockets)

    0dBu nominal. +21dBu maximum

  • Output Record & Monitor Outputs

    0dBu nominal. +21dBu maximum

  • Frequency Response

    Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 10Hz to 30kHz
    Line in to Mix L/R out 0dB gain: +0.5/-1dB 10Hz to 25kHz
    Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz

  • THD+n

    Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out: 0.002%
    Mic in to Mix L/R Out, 30dB gain 1kHz: 0.01%
    Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0.003%
    Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0.002%
    Gtr Input to Mix L/R Out, 0dBu, Boost OUT: 0.015%
    Gtr Input to Mix L/R Out, 0dBu, Boost IN: 2% Second Harmonic

  • Headroom

    Analogue Headroom from nominal (0Vu): 21dB
    USB in & out headroom from nominal (0Vu): 14dB

  • USB Audio In/Out

    USB 1.1 compliant 16bit.

  • Sample Rate

    32, 44.1, or 48kHz

  • Noise

    Mic Pre EIN at max gain 150R input Z 22-22kHz: -127dBu
    Mix L/R out, L/R faders = 0, Levels min, 22-22kHz: -96dBu

  • Dimensions (W x D x H)

    13.22 x 13.62 x 3.74" / 336 x 346 x 95mm

  • Weight

    8.37lbs / 3.8kg

About Allen & Heath ZED60-10FX Multipurpose Mixer - SKU#1894963

Allen & Heath ZED60-10FX Multipurpose Mixer - SKU#1894963 Features

  • High-performance multipurpose mixer with FX and USB I/O port for live sound and recording
  • Features premium quality 60mm faders for intuitive, tactile mixing
  • Includes 4 Mic/Line and 2 Stereo Inputs for versatile audio input options
  • Configurable USB audio in/out for easy stereo recording at gigs or in the studio
  • Equipped with professional XLR main stereo outputs and 16 stunning FX
  • Responsive 3-band British EQ with sweepable mid frequency for precise audio adjustment

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Allen & Heath ZED60-10FX Multipurpose Mixer with FX and USB I/O Port
  • Power Cord
