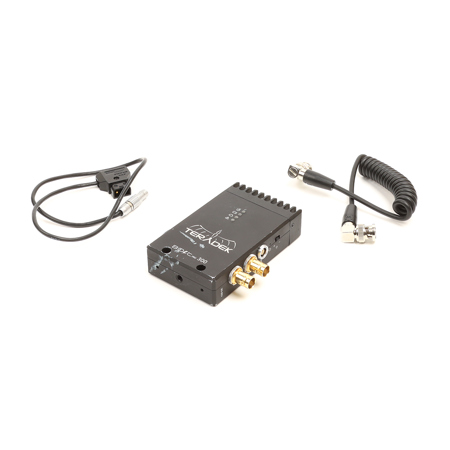

Teradek Bolt Pro 300 3G-SDI Video Wireless Transmitter, Up to 300' Transmits HD Video/Audio, 5.19-5.23 GHz and 5.755-5.795 GHz Non-DFS Frequency
Teradek Bolt Pro 300: Picture 1 thumbnail
Teradek Bolt Pro 300: Picture 2 thumbnail
Teradek Bolt Pro 300: Picture 3 thumbnail
See all Teradek items
CloseoutUsed Condition: Well Used

Used Teradek Bolt Pro 300 3G-SDI Video Wireless Transmitter, Up to 300' Transmits HD Video/Audio, 5.19-5.23 GHz and 5.755-5.795 GHz Non-DFS Frequency

SKU: US1896093 MFR: 10-0921
(1)
$439.00
OR
$74/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $439

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1
Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$43.99

2 Year

$60.99

3 Year

$101.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2016-05-25T09:53:41

Rated 5 out of 5

Works like a charm

Needed to upgrade my existing system. Everything works fine.

ALEKSEY K.

Teradek Bolt Pro 300 Specifications

  • Input

    3G-SDI

  • Video resolution

    1080p60/59.94/50/30/29.97/25/24/23.98
    1080psf30/29.97/25/24/23.98
    1080i60/59.94/50
    720p60/59.94/50
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

  • Color Sampling

    Y:Cb:Cr = 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v.1.1.0 or later); RGB 4:4:4 (HDMI out, 8-bit color)

  • Video Inputs

    1 x 75 Ohm BNC
    1 x Type A receptacle HDMI

  • Video Outputs

    1 x 75 Ohm BNC(Loop-out)

  • Delay(TX to RX)

    <0.001sec (when no video format conversion is enabled)

  • Audio Format support Wireless

    48kHz 24-bit PCM

  • Frequency

    Non-DFS Frequencies:
    US : 5.19 - 5.23 GHz and 5.755 - 5.795 GHz
    EU & JP : 5.19 - 5.23 GHz
    DFS Frequencies:
    US : 5.27 - 5.55 GHz and 5.67 GHz
    EU & JP : 5.27 - 5.67 GHz

  • RF power

    17dBm EIRP

  • Range

    Up to 300' line of sight

  • Unicast / Multicast

    Yes

  • Noise rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

  • Input Power

    2-Pin Lemo 7-28 VDC

  • Internal Battery

    No

  • Power Consumption

    1080p60: 6.5 Watts

  • LCD Screen

    No

  • Menu Joystick

    No

  • Firmware

    Upgrade via Mini-USB

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Chassis Material

    Cap: Plastic
    Body: Milled Aluminum

  • Mountability

    Hot-shoe Mount
    Multiple mounting options with 1/4" holes

  • Dimensions

    1.06 x 2.61 x 4.42" / 2.69 x 6.63 x 11.23cm

  • Weight

    9.2oz / 260.82g

About Teradek Bolt Pro 300 3G-SDI Video Wireless Transmitter, Up to 300' Transmits HD Video/Audio, 5.19-5.23 GHz and 5.755-5.795 GHz Non-DFS Frequency

FEATURED REVIEWS

Works like a charm

By ALEKSEY K.

Needed to upgrade my existing system. Everything works fine.

The Bolt Pro 300 offers up to 300' of zero latency wireless video, perfect for focus pullers and director's monitors. The 300 model comes in HDMI, 3G-SDI and dual I/O varieties and includes a new fan-less receiver design with internal antennas. Like all Bolt models, the 300 also includes the new USB 3.0 GRAB Engine.

USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek's new GRAB Engine. Every Bolt RX includes a USB 3.0 output that allows you to ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.

Real-Time Cross Conversion & Extras
All Bolt models support real-time format conversion from TX to RX, allowing you to automatically cross convert from HDMI to 3G-SDI (or vice versa) without any extra hardware. Each model also outputs a test pattern when the video signal is lost and both the 600 and 2000 models support quick RX pairing via the OLED screen and manual frequency selection.
