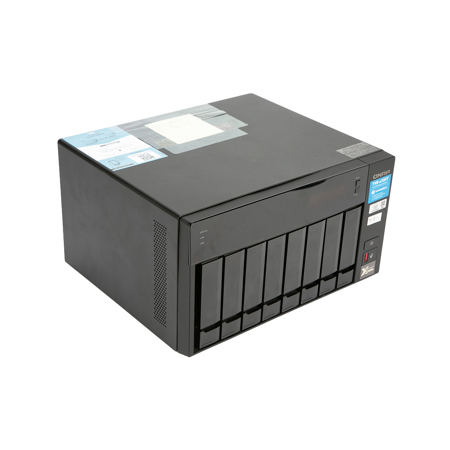

Used QNAP TVS-872XT 8-Bay Thunderbolt 3 Ultra-High NAS/iSCSI IP-SAN Enclosure

Powered by an 8th generation Intel Core processor, the high-performance TVS-872XT NAS features both 10GBASE-T and Thunderbolt 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-872XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-872XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!

• intel-core-i7-8thintel-core-i5-8thintel-core-i3-8ththunderbolthdhdmi
• High-speed Thunderbolt 3 with SMB protocol, perfect for collaboration on media editing.
• 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.
• PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.
• Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.
• 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.
• Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

Fast and flexible Thunderbolt 3 and 10GBASE-T connectivity
The TVS-872XT adopts the powerful 8th generation Intel Core processor with 16 GB dual-channel DDR4 memory (upgradable to 64 GB) to deliver outstanding performance. It provides two Gigabit and one 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M), supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data. You can also connect USB Type-C devices through the Thunderbolt 3 ports to transfer large media files across devices, providing you with a more efficient workflow.

Extend NAS functionality with a graphics card and other PCIe devices
The TVS-872XT features two PCIe Gen 3 slots (the first slot is pre-installed with a Thunderbolt 3 card) that allow for the usage of various expansion cards to expand application potential.

Graphics cards
Accelerate NAS video processing and empower GPGPU tasks. GPUs can also be passed-through to virtual machines.

QM2 M.2 SSD/10GbE cards
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.

10GbE/ 40GbE adapters
Enable lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration.

Wireless network cards
Install a QXP-W6-AX200 Wi-Fi 6 wireless adapter to turn the TVS-872XT into a wireless NAS. Or make the TVS-872XT a wireless access point by installing the QWA-AC2600 wireless adapter and the Wireless AP Station app.

Obtain performance benefits from M.2 SSD caching
Besides using 2.5-inch SSDs for caching, you can utilize the two M.2 SSD slots built in to the TVS-872XT for installing PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs with 2280 form factors (M.2 SSDs are sold separately).

Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows.

Maximize the value of SSDs with Qtier Technology
Qtier Technology empowers the TVS-872XT with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data's access frequency. Qtier 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.

Potentially attain performance and endurance levels similar to enterprise-grade SSDs
With SSD prices continuing to become more affordable, there's never been a better time for using SSDs in your NAS to enjoy higher performance, faster file backups, smoother multimedia experiences, and optimized virtualization applications. From QTS 4.3.5 you can benefit from software-defined SSD RAID extra over-provisioning (OP) that enables you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TVS-872XT, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs.

HBS 3
QuDedup technology deduplicates data at the source, helping to reduce the time and storage space needed for backup.

VJBOD Cloud
Seamlessly connect local storage with cloud object storage to easily backup local application data to the cloud.

Hybrid Mount
Enabling local caching on NAS for low-latency access to the connected cloud services.

QuMagie
Integrated AI algorithm for auto photo organization and a powerful search tool for more intuitive and streamlined photo management.

Build an affordable Fiber Channel SAN environment
Common Fiber Channel SAN (Storage Area Networks) devices are often expensive. Now you have more budge-friendly options to easily add your NAS to a SAN environment. Once a Marvell, ATTO or QNAP Fiber Channel card has been installed in the TVS-872XT, you can set a Fiber Channel Target using the iSCSI & Fiber Channel app, and leverage the many benefits from QNAP NAS including snapshot protection, Qtier tiering storage, SSD cache acceleration and more. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.

Flexibly manage virtual and physical networks
The Network & Virtual Switch app manages physical network interfaces (including network adapters and Thunderbolt ports) and virtual adapters (virtual machines and containers) and their communications, providing a visualized topology that clearly presents the connections of physical and virtual networks. The flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TVS-872XT, virtual machines and containers whenever needed.

Collaboration station for Mac and Windows
The TVS-872XT is the perfect match for Thunderbolt-equipped Mac users - especially for photographers, filmmakers, and graphic designers who require 4K media storage, instant sharing and have bandwidth-intensive workflows. Up to 2 Thunderbolt devices can be connected to the TVS-872XT to process real-time photo and audio editing simultaneously without impacting system performance. As Final Cut Pro X 10.3 (and later) supports file sharing via SMB, Windows users and other devices utilizing Thunderbolt 3, 10GbE or GbE connections can join the editing workflow more efficiently.

The best storage solution for the 10GbE-equipped iMac Pro
The iMac Pro is the first Mac computer that includes a 10Gb Ethernet port, marking a milestone in the growing >mainstream demands for 10GbE connectivity. As the TVS-872XT comes with both 10GbE and Thunderbolt 3 ports, it provides an exceptional storage base for iMac Pro users as they can flexibly choose between Thunderbolt 3 and 10GbE connections to suit their application and device needs.

Create a seamless 10GbE environment for both Mac and Windows users
QNAP provides various budget-friendly solutions to help upgrade your network environment to 10GbE. No matter if your team members use Mac or Windows computers, they can enjoy blazing-fast transfer speeds and simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia).

QNA-T310G1T / QNA-T310G1S
The Thunderbolt 3 to 10GbE adapter empowers your Mac or Windows computers with blazing-fast 10GbE network connectivity using a Thunderbolt 3 type-C port.

QXG-10G1T
The 10GbE PCIe network adapter can be installed in Windows/Linux computers to add 10GbE connectivity.

QSW-1208-8C
The 12-port 10GbE 10GbE/NBASE-T unmanaged switch allows faster speeds using existing cables.

Ultimate visual experience with 4K HDMI output
The TVS-872XT has an HDMI 2.0 port which supports 4K (3840 x 2160) 60Hz output, providing great benefits for applications like video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-872XT to an HDTV via the HDMI output, you can directly view multimedia content saved on the NAS on a bigger screen. You can also download and install versatile multimedia apps from Ubuntu Software Center through QNAP Linux Station. QNAP's HD Station also allows users to directly enjoy multimedia using the HD Player or third-party players such as Plex Home Theater.

Real-time transcoding for an excellent cross-device media experience
Featuring advanced Intel UHD Graphics 630, the TVS-872XT supports triple-channel 4K H.264 hardware decoding and real-time transcoding, allowing you to convert videos to universal file formats that can be smoothly played on multiple devices.

Protect your data with higher security
The TVS-872XT is loaded with comprehensive security features to keep your data safe.
