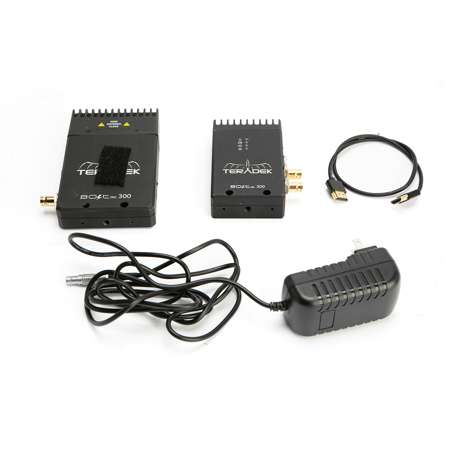

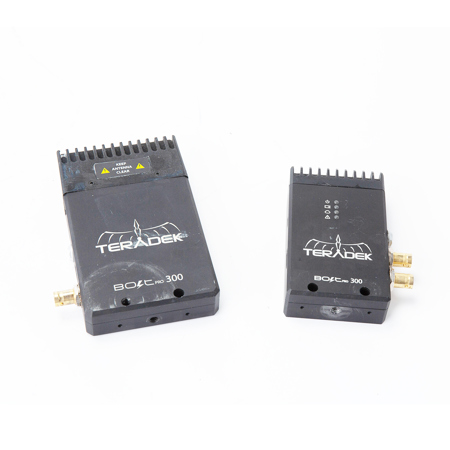

Teradek Bolt Pro 300 TX/RX SDI/HDMI Wireless Video Transceiver Set, 17dBm EIRP (Transmitter) / 15dBm EIRP (Receiver) RF Power, 48kHz 24-bit PCM
Teradek Bolt Pro 300 TX/RX: Picture 1 thumbnail
Teradek Bolt Pro 300 TX/RX: Picture 2 thumbnail
Teradek Bolt Pro 300 TX/RX: Picture 3 thumbnail
Teradek Bolt Pro 300 TX/RX: Picture 4 thumbnail
Teradek Bolt Pro 300 TX/RX: Picture 5 thumbnail
Teradek Bolt Pro 300 TX/RX: Picture 6 thumbnail
Teradek Bolt Pro 300 TX/RX: Picture 7 thumbnail
Teradek Bolt Pro 300 TX/RX: Picture 8 thumbnail
Teradek Bolt Pro 300 TX/RX: Picture 9 thumbnail
Teradek Bolt Pro 300 TX/RX: Picture 10 thumbnail
Teradek Bolt Pro 300 TX/RX: Picture 11 thumbnail
Teradek Bolt Pro 300 TX/RX: Picture 12 thumbnail
See all Teradek items
CloseoutUsed Condition: Well Used

Used Teradek Bolt Pro 300 TX/RX SDI/HDMI Wireless Video Transceiver Set, 17dBm EIRP (Transmitter) / 15dBm EIRP (Receiver) RF Power, 48kHz 24-bit PCM

SKU: US1881671 MFR: 10-0930
Be the first to review this item
$703.00
OR
$118/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (3) from $703

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1
Add to List

Protect your gear with Adorama Protect.* Learn more

2 Year

$92.99

3 Year

$144.99

4 Year

$196.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Teradek Bolt Pro 300 TX/RX Specifications

  • Transmitter: Video resolution

    1080p60/59.94/50/30/29.97/25/24/23.98
    1080psf30/29.97/25/24/23.98
    1080i60/59.94/50
    720p60/59.94/50
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

  • Transmitter: Color sampling

    Y:Cb:Cr = 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v.1.1.0 or later); RGB 4:4:4 (HDMI out, 8-bit color)

  • Transmitter: Inputs

    1 x 75 Ohm BNC
    1 x Type A receptacle HDMI

  • Transmitter: Outputs

    1 x 75 Ohm BNC(Loop-out)

  • Transmitter: Delay(TX to RX)

    <0.001sec (when no video format conversion is enabled)

  • Transmitter: Audio Format support

    48kHz 24-bit PCM

  • Transmitter: Frequency

    Non-DFS Frequencies:
    US: 5.19 - 5.23 GHz and 5.755 - 5.795 GHz
    EU & JP: 5.19 - 5.23 GHz
    DFS Frequencies:
    US: 5.27 - 5.55 GHz and 5.67 GHz
    EU & JP: 5.27 - 5.67 GHz

  • Transmitter: RF power

    17dBm EIRP

  • Transmitter: Range

    Up to 300' / 91.44m line of sight

  • Transmitter: Unicast / Multicast

    Yes

  • Transmitter: Noise rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

  • Transmitter: Power Input

    2-Pin Lemo 7-28 VDC

  • Transmitter: Internal battery

    No

  • Transmitter: Consumption(1080p60)

    6.5 Watts

  • Transmitter: LCD screen

    No

  • Transmitter: Menu joystick

    No

  • Transmitter: Firmware

    Upgrade via Mini-USB

  • Transmitter: Operating temperature

    0 to 50deg. C / 32 to 122deg. F

  • Transmitter: Chassis material

    Cap:Plastic
    Body:Milled aluminum
    Hot-shoe mount

  • Transmitter: Mountability

    Multiple mounting options with 1/4" holes

  • Receiver: Video resolution

    1080p60/59.94/50/30/29.97/25/24/23.98
    1080psf30/29.97/25/24/23.98
    1080i60/59.94/50
    720p60/59.94/50
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

  • Receiver: Color sampling

    Y:Cb:Cr = 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v.1.1.0 or later); RGB 4:4:4 (HDMI out, 8-bit color)

  • Receiver: Delay(TX to RX)

    <0.001sec (when no video format conversion is enabled)

  • Receiver:Format support

    48kHz 24-bit PCM

  • Receiver:Frequency

    Non-DFS Frequencies:
    US: 5.19 - 5.23 GHz and 5.755 - 5.795 GHz
    EU & JP: 5.19 - 5.23 GHz
    DFS Frequencies:
    US: 5.27 - 5.55 GHz and 5.67 GHz
    EU & JP: 5.27 - 5.67 GHz

  • Receiver:Range

    Up to 300' line of sight

  • Receiver: Noise rejection

    Can coexist with WiFi and 5GHz cordless phones

  • Receiver: Firmware

    Upgrade via Mini-USB

  • Receiver: Operating temperature

    0 to 50deg. C / 32 to 122deg. F

  • Receiver: Input

    No

  • Receiver: Outputs

    1 x USB 3.0 micro B receptacle
    1 x 75 Ohm BNC
    1 x Type A receptacle HDMI

  • Receiver: RF power

    15dBm EIRP

  • Receiver: Unicast / Multicast

    Yes

  • Receiver: Power Input

    2-Pin Lemo 7-28 VDC

  • Receiver: Internal battery

    No

  • Receiver: Consumption(1080p60)

    8.2Watts

  • Receiver: LCD screen

    No

  • Receiver: Menu joystick

    No

  • Receiver: Chassis material

    Cap:Plastic
    Body:Milled aluminum
    Hot-shoe mount

  • Receiver: Mountability

    Multiple mounting options with 1/4" holes

  • Dimensions

    Transmitter: 1.06 x 2.61 x 4.42" / 26.92 x 66.29 x 112.27mm
    Receiver: 1.0 x 3.5 x 5.8" / 25.40 x 88.90 x 147.32mm

  • Weight

    Transmitter: 9.2oz / 260.82g
    Receiver: 12.2oz / 345.86g

About Teradek Bolt Pro 300 TX/RX SDI/HDMI Wireless Video Transceiver Set, 17dBm EIRP (Transmitter) / 15dBm EIRP (Receiver) RF Power, 48kHz 24-bit PCM

The Teradek Bolt Pro 300 TX/RX SDI/HDMI Wireless Video Transceiver Set offers up to 300' of zero latency wireless video, perfect for focus pullers and director's monitors. The Teradek Bolt is a zero delay (< 1ms) wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 2000ft over the unlicensed 5GHz band. It is multicast capable up to 4 receivers, support timecode and metadata pass through and include the USB 3.0 GRAB Engine.

USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek's new GRAB Engine. Every Bolt RX includes a USB 3.0 output that allows you to ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.

Real-Time Cross Conversion & Extras
It supports real-time format conversion from TX to RX, allowing you to automatically cross convert from HDMI to 3G-SDI (or vice versa) without any extra hardware. The model also outputs a test pattern when the video signal is lost.
