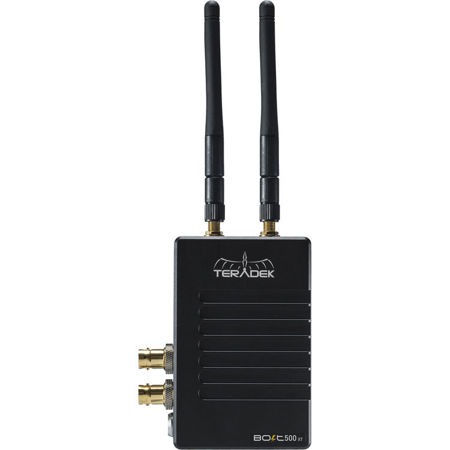

Used Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter

SKU: US1905874 MFR: 10-1936
Earn VIP Reward Points

What`s in the box:

  • Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter
  • 2x 5.8G Antenna

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$88.99

3 Year

$138.99

4 Year

$188.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Teradek Bolt 500 XT Specifications

Video
  • Video Inputs

    1x SD/HD/3G-SDI (75 Ohm BNC)
    1x Type A receptacle HDMI

  • Video Outputs

    1x HD/SD/3G-SDI Loop-out (75 Ohm BNC)

  • SDI Ancillary Data Support

    Supports metadata, timecode, and start/stop flags from certain camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx To Rx

    <0.001sec (without format conversion)

Supported Resolutions

Jump to...
  • Supported Resolutions

    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually lossless

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33x33x33 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Embedded Audio Input

Interfaces

Jump to...
  • Http

    None

  • Configuration Interfaces

    None

  • Switches

    On/Off and Reset Switch

  • Desktop App

    Feature-rich Bolt Manager Application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Mini-USB

Network

Jump to...
  • Wireless

    Non-DFS Frequencies: 5.19 - 5.23 GHz and 5.755 - 5.795 GHz

    DFS Frequencies: 5.27 - 5.55 GHz and 5.67 GHz

  • RF Channel Selection

    Auto only (NOT configurable)

  • Encryption

    AES-128

  • RF Power

    17dBm EIRP

  • Range

    Up to 500' line of sight

  • Unicast Multicast

    Unicast / Multicast

  • Noise Rejection

    Can coexist with WiFi and 5GHz cordless phones

  • Power Input

    2-Pin Connector 7-28 VDC

  • Battery

    None

  • Nominal Power Consumption

    7.3 Watts (Measured at 1080p60)

Environmental

Jump to...
  • Operating Temperature

    32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)

Physical

Jump to...
  • Construction

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with M3 and 1/4" holes
    3/8" ARRI style accessory mount

  • Dimensions

    0.95 x 2.6 x 4.47" (24 x 66 x 101.5mm)

  • Weight

    8 oz (226g)

About Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter

The Bolt XT satisfies the needs of the most discerning professionals, from powerful software tools and rock-solid performance to smart power options and backward compatibility.

A key feature of the Bolt XT is its backward compatibility with any Bolt of the same range, Sidekick II / LT / XT, and 703 Bolt, giving users more flexibility building onto their existing systems or linking with others already on set. Unlike alternative wireless video systems, Bolt XT includes a unique AES 128 encryption algorithm to protect your video footage, ensuring that only authorized receivers can connect to your transmitter.

Each transmitter includes an HDMI, 3G-SDI and looping 3G-SDI output. Receivers feature an HDMI output as well as dual 3G-SDI outputs. While wireless performance is critical on set, so are practical mounting options that ensure optimal performance and a quick set-up. With the Bolt XT line, Teradek has added an integrated NATO rail on the receiver, several 1/4"-20 and 3/8" mounting points, and an ARRI rosette on the transmitter to greatly improve available mounting options.

An all-new aluminum chassis further reduces the size and weight of the Bolt line, with receivers also allowing for integrated pass-through power. Available battery plate accessories include V- or Gold-mount, in addition to bi-directional Sony L-series or Canon LP-E6 plates on the Bolt 500 XT. Teradek has also replaced the internal antennas on the Bolt 500 XT transmitter with an external set to enhance wireless performance when operating in environments with large obstacles or heavy interference.

The Bolt XT, like the previous generation, is multicast capable up to 4 receivers and includes built-in cross conversion and Teradek's proprietary software utilities, including a manual frequency-selection tool, 3D LUT engine, and a 5GHz spectrum analyzer to keep an eye on interference in your area.

Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter Features

  • Compatible with 3rd generation Bolt 500, Bolt 500 LT, Sidekick II, Focus Bolt RX and 703 Bolt
  • Professional software features: 3D LUTs, 5GHz spectrum analyzer
  • Smaller and lighter chassis design with robust mounting points (3/8" and 1/4"-20)
  • Dual input (SDI + HDMI) and SDI loop out

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter
  • 2x 5.8G Antenna
