Review Summary
WEAPON 8K S35, WEAPON 6K, EPIC-W, SCARLET-W, RAVEN, EPIC/SCARLET DRAGON, EPIC/SCARLET M-X Cameras
1920 (wide) x 1080 (high), full-color
30-bit RGB (color)
Rec 709
> 10000:1 (typical)
60 fps
Fully coated optics with > 32 deg. field of view, infinity focus and eye cup that accommodates standard 1.6" to 1.8" diameter eye cushions
-2.5 to +2.5 diopter correction range
Two user defined buttons
2.5W (max)
0 to 40 deg. C (32 to 104 deg. F)
-20 to 50 deg. C (-4 to 122 deg. F)
0 to 85%, non-condensing
0 to 85%, non-condensing
2.5 x 2.25 x 4.6" (63.50 x 57.15 x 116.84mm)
0.8 lbs (0.36kg), DSMC2 RED EVF Body (OLED) and Modular Optical Block

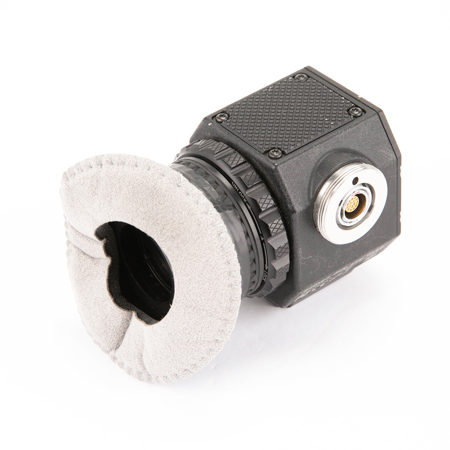

The DSMC2 RED EVF (OLED) is a high definition electronic viewfinder designed as the ideal single-viewer monitoring solution. Featuring the latest OLED technology, this EVF provides an unmatched personal viewing experience with a high contrast 1080p OLED micro-display and improved color accuracy with 30-bit RGB color representation. View and monitor your RED footage as it is intended with truer colors and deeper blacks in a larger field of view. Engineered with OBSOLESCENCE OBSOLETE in mind, the DSMC2 RED EVF (OLED) is perfect for use with DSMC and DSMC2 cameras. The DSMC2 RED EVF (OLED) includes a DSMC2 RED EVF Mounting Plate (Top), an 18" EVF/LCD Cable (Right-To-Right) and a RED ARM 9".
The DSMC2 RED EVF (OLED) with Mount Pack is also available for cable-free attachment configurations with your DSMC2 BRAIN.
Note:
Camera BRAIN and cable-free Mount Pack NOT included.
