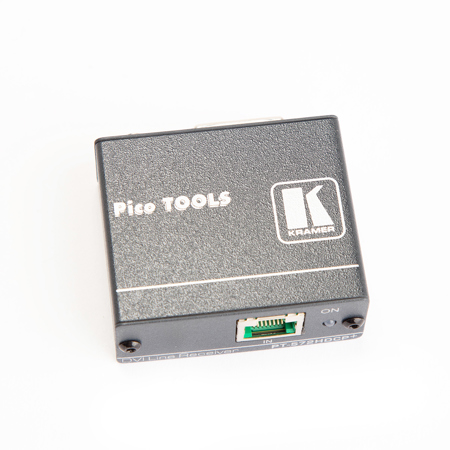

Used Kramer Electronics PT-572HDCP+ DVI Over Twisted Pair Receiver

The Kramer Electronics DVI over Twisted Pair Receiver is used to receive DVI signals sent over a twisted pair cable. Supporting a maximum data rate of up to 1.65Gbps, the receiver accepts input signals up to UXGA resolutions. Converting the twisted pair signal back to DVI, the receiver offers a maximum range of up to 330' (100m) for SXGA or up to 256' (80m) for UXGA resolutions using the shielded BC-DGKat723 cable.

With EDID PassThru, the Twisted Pair Receiver passes the EDID/HDCP signals from source to display for avoiding compatibility issues with the connected display. The transmitter requires a 12V DC power supply (included) for operation. Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 270' (90m) of each other. In addition, 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor.
