Picture does not represent the actual item
See Options
Need help? Ask our experts.
Review Summary
2017-11-03T13:14:17
Product works as expected and Adorama was excellent to work with.
BRIGHAM U.
2017-09-25T02:48:33
Converter was a perfect match for our project. We are using these converters in line to monitors with HDMI connections. We've had the same converters in other installations, running for years with no issues.
ACCOUNTS P.
525i, 625i,
720p 50/59.94/60,
1080i 50/59.94/60,
1080p23.98, 1080p24, 1080p25, 1080p29.97 and 1080p30
HD-SDI/SDI, SMPTE-259/274/292/296
HDMI with embedded audio, 24-bit (selectable by internal jumper: 2 or 8 channels)
Analog Audio-2 channel RCA-style outputs at -10dBV (nominal), Channel 1 and 2
1 Looping SDI/HD-SDI output of the SDI input (75 ohm, unterminated)
Standard Type A connector
8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 (selectable by internal jumper)
24-bit, with 2 or 8 embedded channels (selectable by internal jumper)
The Hi5 does not encode the HDMI output with HDCP encryption. By definition, SDI/HD-SDI inputs to the Hi5 are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.
+5 VDC regulated, 3 watts
DWP-U-R1 AJA power supply (included)
4.6" x 2.4" x 1" (117mm x 61mm x 25mm.)
AJA 5 years parts & labor warranty
Product works as expected
By BRIGHAM U.
Product works as expected and Adorama was excellent to work with.
AJA Converter perfect for our project
By ACCOUNTS P.
Converter was a perfect match for our project. We are using these converters in line to monitors with HDMI connections. We've had the same converters in other installations, running for years with no issues.

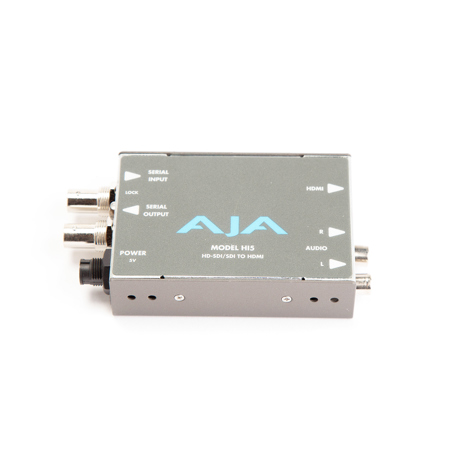

The AJA Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SDI/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 provides 2 Channel RCA style audio outputs for separate audio monitoring if needed. The Hi5 also provides a looping SDI/HD-SDI output useful for connecting additional equipment, or for "daisy chaining" multiple monitors to the same SDI-HD-SDI source.
