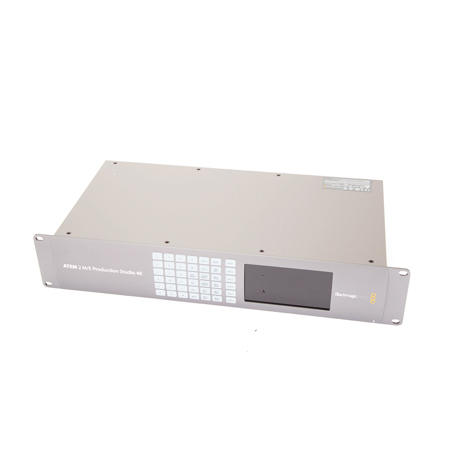

Used Blackmagic Design ATEM 2 M/E Production Studio 4K, 4 Upstream & 2 Downstream Keyers, 22-Input Audio Mixer, 20 6G-SDI & 1 HDMI Inputs

SKU: US1910884 MFR: SWATEMPSW2ME4K
$1,660.00
New: $4,335.00
Used Savings: $2675 (62%)
OR
Earn VIP Reward Points

What`s in the box:

  • Blackmagic Design ATEM 2 M/E Production Studio 4K
  • Software CD with ATEM Software Control Panel
  • (Power Cable Not Included)

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$125.99

3 Year

$195.99

4 Year

$267.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-03-08T07:48:37

Rated 5 out of 5

Great Upgrade to ATEM TV Studio 4K

Purchased this for our church to replace Blackmagic Design ATEM TV Studio 4K to expand our inputs and upgrade our capabilities. It?s been great so far. We use the BMD universe for everything and were already familiar with it.

GUCLU E.

2014-05-28T21:00:00

Rated 4 out of 5

So far, so good

This product is brand spanking new. After returning two different 1 M/E 4Ks due to a power supply recall and a bad ethernet port, I am extremely happy with the 2 M/E 4K. We just used it for a 3 day live event and it worked flawlessly (with about 14 inputs going, 3 program outs and 3 aux outs. It never had any issues at all. So far, so good. Can't beat it for the money.

TIMOTHY K.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Blackmagic Design ATEM 2 M/E Specifications

  • Total Video Input

    20

  • Total Video Output

    13

  • SDI Video Input

    20 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio

  • HDMI Video Input

    1 x HDMI type A. 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio

  • Analog Audio Output

    2 x XLR Program 2 x XLR Monitor

  • Extra Audio Outputs

    1 x XLR Timecode and 1 x XLR Talkback

  • SDI Audio Output

    2 Ch embedded into SDI output on all outputs.

  • Audio Input

    2 x XLR. 2 x RCA

  • Extra Audio Inputs

    1 x XLR Timecode and 1 x XLR Talkback

  • Sync Input

    Tri-Sync or Blackburst

  • Internal Frame Synchronizers

    20. All inputs

  • SDI Program Output

    3 x 10-bit SD/HD/Ultra HD 4K switchable

  • HDMI Program Output

    1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.

  • Down Converted SDI Program Output

    1 x 10-bit (Ultra HD 4K to HD)

  • SDI Preview Output

    1 x 10-bit SD/HD/Ultra HD 4K switchable

  • SDI Aux. Output

    6 x 10-bit SD/HD/Ultra HD 4K switchable

  • Quantity of Multi Views

    2 x SDI plus 2 x HDMI, able to be used concurrently.

  • Multi View Outputs

    2 x SDI and 2 x HDMI.

  • Control Panel Connection

    Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.

  • Tally Output

    Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)

  • Computer Interface

    1 x USB 2.0 port

  • SD Format Support

    625/25 PAL 4:3 and 16:9, 525/29.97 NTSC 4:3 and 16:9

  • HD Format Support

    720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080i50, 1080p50, 1080i59.94, 1080p59.94

  • Ultra HD 4K Format Support

    3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97

  • SDI Compliance

    SMPTE 259M, 292M

  • Video Sampling

    4:2:2

  • Color Precision

    10-bit/p>

  • Color Space

    REC 601, REC 709, REC 2020.

  • HDMI Input Resolutions for Computers

    720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz, 1920 x 1080 50Hz, 1920 x 1080 59.94Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz. Note: Also supported are; 24, 30 and 60 Hz inputs when switcher is in 23.98, 29.97 and 59.94 Hz formats respectively

  • Control Panel Included

    ATEM Software Control Panel included free for Mac OS X 10.7.2 or 10.8 Mountain Lion and Windows 7 64-bit or Windows 8 64-bit.

  • Software Updates

    Using USB 2.0 connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

  • Configuration

    Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

  • Colorspace Conversion

    Hardware based real time.

  • Processing Delay

    < 2 Lines

  • Audio Mixer

    22 input x 2 channel mixer.
    Selectable On/Off/Audio-Follow-Video.
    Level and Peak metering.
    Master gain control.
    Dedicated analog outputs for monitoring.

  • 4K to HD Down Conversion

    Yes, program x 1

  • Operating Systems

    Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later. Windows 7 64-bit or Windows 8 32-bit or 64-bit.

  • Total Number of Layers

    13

  • Upstream Keyers

    4

  • Downstream Keyers

    2

  • Linear/Luma Keyers

    7

  • Chroma Keyers

    4

  • Pattern Generators

    7

  • Color Generators

    2

  • Transition Keyer (Stinger/DVE)

    1 and 1

  • DVE with 3D Borders & Drop Shadow

    Yes, program x 1

  • Control Panel Compatibility

    ATEM 2 M/E Broadcast Panel preferred. Compatible with ATEM 1 M/E Broadcast Panel. Includes ATEM Software Control Panel.

  • Interface

    Minimum monitor resolution of 1366 x 768.

  • Front Panel

    Built in LCD monitor for video and 42 LED buttons for Aux switching.

  • Media Players

    2

  • Channels

    Fill and key for each Media Player

  • Media Pool Still Image Capacity

    32 with fill and key

  • Media Pool Clip Capacity

    2 with fill and key.

  • Maximum Clip Lengthhh in Ultra HD 4K

    180 frames

  • Maximum Clip Lengthhh in 1080

    720 frames

  • Maximum Clip Lengthhh in 720p

    1600 frames

  • Maximum Clip Lengthhh in NTSC/PAL

    3600 frames.

  • Media Pool Still Image Format

    PNG, TGA, BMP, GIF, JPEG and TIFF.

  • Media Pool Video File Format

    TGA Sequence.

  • Media Pool Audio File Format

    WAV, MP3 and AIFF.

  • Number of Windows

    2 x 10

  • Routable Windows

    16

  • Tally

    Red for program and green for preview indication.

  • Windows Source Labels

    Yes

  • Physical Installation

    2 Rack Unit Size.

  • Power usage

    150W

  • Power Supply

    2 x built in international AC power supply. 100-240V AC

  • Operating temperature

    0deg. to 40deg. C (32deg. to 104deg. F)

  • Storage temperature

    -20deg. to 60deg. C (-4deg. to 140deg. F)

  • Relative Humidity

    0% to 90% non-condensing

  • Dimensions (W x H x D)

    19.00 x 3.54 x 9.25" (48.26 x 8.99 x 23.49 cm)

  • Weight

    9.0 lbs (4.1 kg)

3 Accessories for Blackmagic Design ATEM 2 M/E Production Studio 4K, 4 Upstream & 2 Downstream Keyers, 22-Input Audio Mixer, 20 6G-SDI & 1 HDMI Inputs

  • All Accessories (3)
  • Power Supply & Accessories (3)

About Blackmagic Design ATEM 2 M/E Production Studio 4K - SKU#1910884

FEATURED REVIEWS

Great Upgrade to ATEM TV Studio 4K

By GUCLU E.

Purchased this for our church to replace Blackmagic Design ATEM TV Studio 4K to expand our inputs and upgrade our capabilities. It?s been great so far. We use the BMD universe for everything and were already familiar with it.

When it comes to professional live multi-camera production, the Blackmagic Design ATEM 2 M/E Production Studio 4K stands out as a sophisticated and advanced choice. This innovative piece of equipment allows you to produce broadcast-quality live productions in SD, HD, or stunning Ultra HD, making it ideal for live music, sports events, and more.

Equipped with 20 inputs featuring built-in re-synchronizers, this high-quality live production switcher accommodates a wide array of video sources, from cameras and disk recorders to computers. This flexibility allows for seamless switching between sources, ensuring a smooth and professional broadcast.

The ATEM 2 M/E Production Studio 4K boasts advanced broadcast features such as chroma key, customizable transitions, upstream and downstream keyers, DVE, Super Source, and a 22-input audio mixer. These features, combined with 2 x multi-views, a media pool, and 6G-SDI and HDMI 4K connections, make this switcher a powerhouse for live production switching.

Supporting 4K Ultra HD video (3840 x 2160), the ATEM 2 M/E Production Studio 4K delivers four times the resolution of Full HD. The video format is user-defined and must be consistent across all inputs, as the switcher cannot scale different input formats to match the project format.

The switcher's built-in audio mixer allows for mixing and balancing embedded audio from all 20 video inputs, as well as the two audio inputs, each with two-channel support. This feature enables manual mixing of sources or the option to set mixer inputs to "audio follow video" for automatic audio crossfades as you switch between sources.

The ATEM 2 M/E Production Studio 4K offers two program outputs for the final video, delivering SD/HD/Ultra HD via three 6G-SDI ports and one HDMI 4K connector. With six SDI auxiliary outputs capable of delivering the program out feed with or without the downstream keyer effects in SD, HD, and Ultra HD, this switcher provides comprehensive control over your live production.

The switcher also features backlit front panel control buttons for manual control and uses an Ethernet connection to interface with control surfaces such as the optional ATEM 1 M/E and 2 M/E Broadcast Panels. The included ATEM Software Control software allows for control of all production settings of the switcher and direct import of graphics from your computer into the switcher's media pool.

Designed with a 2RU height and built-in rack mount ears, the ATEM 2 M/E Production Studio 4K is perfect for mounting in a production road case or in a post-production facility. With its advanced features and high-quality output, this switcher is a valuable asset for any professional live production setup.

Blackmagic Design ATEM 2 M/E Production Studio 4K - SKU#1910884 Features

  • Lets you produce broadcast quality live multi camera production in SD, HD or amazing Ultra HD
  • Featuring 20 inputs with built in re-synchronizers can connect cameras, disk recorders and computers
  • Advanced broadcast features chroma key, customizable transitions, up/down stream keyers, Super Source and more
  • 6G-SDI and HDMI 4K connections and 6 auxiliary outputs for advanced live production switching

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Blackmagic Design ATEM 2 M/E Production Studio 4K
  • Software CD with ATEM Software Control Panel
  • (Power Cable Not Included)
