Blackmagic Design HyperDeck Studio Pro Specifications

  • SDI Video Input

    4 x 10-bit SD/HD/3 Gb/s SDI switchable

  • SDI Video Output

    4 x 10-bit SD/HD/3G Gb/s SDI switchable
    1 x 10-bit SD/HD/3 Gbs/SDI switchable Monitor Output

  • Analog Video Input

    1 x Component YUV on 3 BNCs, supports HD and SD

  • Analog Video Output

    1 x Component YUV on 3 BNCs, supports HD and SD

  • HDMI Video Input

    1 x HDMI type A connector

  • HDMI Video Output

    1 x HDMI type A connector

  • Analog Audio Input

    2 x XLR connectors for professional balanced analog audio
    2 x RCA connectors for unbalanced analog audio from consumer equipment

  • Analog Audio Output

    2 x XLR connectors for professional balanced analog audio

  • SDI Audio Input

    16 channels embedded in SD and HD in QuickTime files
    2 channels in Avid DNxHD MXF files

  • SDI Audio Output

    16 channels embedded in SD and HD in QuickTime files
    2 channels in Avid DNxHD MXF files

  • HDMI Audio Input

    8 channels embedded in SD and HD in QuickTime files
    2 channels in Avid DNxHD MXF files

  • HDMI Audio Output

    8 channels embedded in SD and HD in QuickTime files
    2 channels in Avid DNxHD MXF files

  • Timecode Input

    1 x XLR connector for timecode input

  • Timecode Output

    1 x XLR connector for timecode output

  • SSD Interface

    2 x 2.5" SATA 6Gb/s

  • Sync Input

    Blackburst or Tri-Sync

  • Device Control

    Sony compatible RS422 deck control port

  • Recorder Control

    12 buttons and jog wheel for local control of HyperDeck Studio Pro or use either RJ45 Ethernet or USB 2.0 high speed interface

  • Recorder Configuration

    Use USB 2.0 high speed interface

  • Computer Interface

    1x Thunderbolt port for capture of video and audio
    1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control

  • SD Format Support

    625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only

  • HD Format Support

    720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

  • 2K Format Support

    2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25

  • 4K Playback Format Support

    3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30
    4K playback is supported from a single ProRes QuickTime file

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M

  • SDI Metadata Support

    HD RP188 and closed captioning

  • Audio Sampling

    Television standard sample rate of 48kHz and 24 bit

  • Video Sampling

    4:2:2 and 4:4:4

  • Color Precision

    10-bit

  • Color Space

    REC 601, REC 709

  • Multiple Rate support

    SDI, HDMI and component analog video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI

  • Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

  • Codec Support

    Uncompressed QuickTime, Apple ProRes 422 (HQ) QuickTime, Avid DNxHD QuickTime, Avid DNxHD MXF

  • Displays

    Built-in LCD for video, audio and timecode monitoring

  • Physical Installation

    1 rack unit size. Less than 7 inches deep

  • Battery

    No

  • Power Supply

    1 x built-in international AC power supply with IEC C14 inlet. 110-240V, 50-60Hz

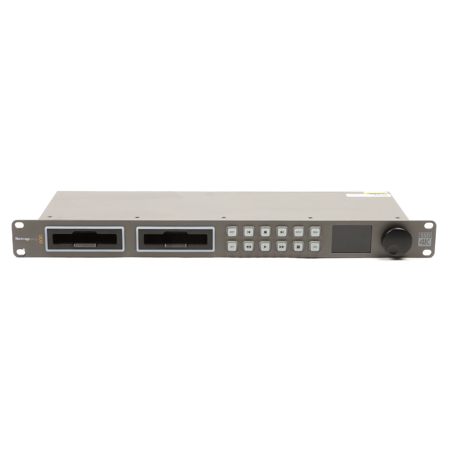

About Blackmagic Design HyperDeck Studio Pro - SKU#1911299

The BlackMagic Design HyperDeck Studio Pro is a file-based deck that records uncompressed in QuickTime and compressed in ProRes and DNxHD, storing the files onto two 2.5" SSDs. Two SSD slots are available and allow continuous recording - the second disk automatically begins recording when the first becomes full. The disks can afterwards be hooked up to a computer by USB.

A diverse set of connections consists of 3G SDI, component, HDMI, XLR, RCA, Thunderbolt, USB and RS422. SD, HD and 2K formats are supported and capacity is additionally available for 4K playback from an SSD in ProRes. Color options are SD and HD 10-bit 4:2:2 and 4:4:4. Recording in 4:2:2 uncompressed offers higher dynamic range and thus more precision in color correction. Alternatively, recording in compressed ProRes or DNxHD allows five times longer recording and all the same maintains 10-bit color and full frame 1920 x 1080 sampling.

The panel controls and overall functionality of the HyperDeck Studio Pro are very similar to those of traditional tape decks. The transport buttons are illuminated crystal; a jog/shuttle wheel is available; and an integrated LCD displays timecode and transport information, full color thumbnail previews of the clips being recorded or played back and also format, frame rate and audio levels.

Blackmagic Design HyperDeck Studio Pro - SKU#1911299 Features

  • SD/HD 10-bit 4:2:2/4:4:4 color depth
  • Records 10-bit uncompressed in QuickTime
  • Records 10-bit compressed in ProRes/DNxHD
  • Stores to 2 SSDs; switches to the 2nd when 1st is full
  • In/out: 3G SDI, component, HDMI, XLR, RCA, Thunderbolt
  • SD, HD and 2K support and 4K playback from an SSD in ProRes
  • LCD displays timecode, format, frame rate, audio levels, transport info and thumbnail clip previews

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Blackmagic Design HyperDeck Studio Pro
